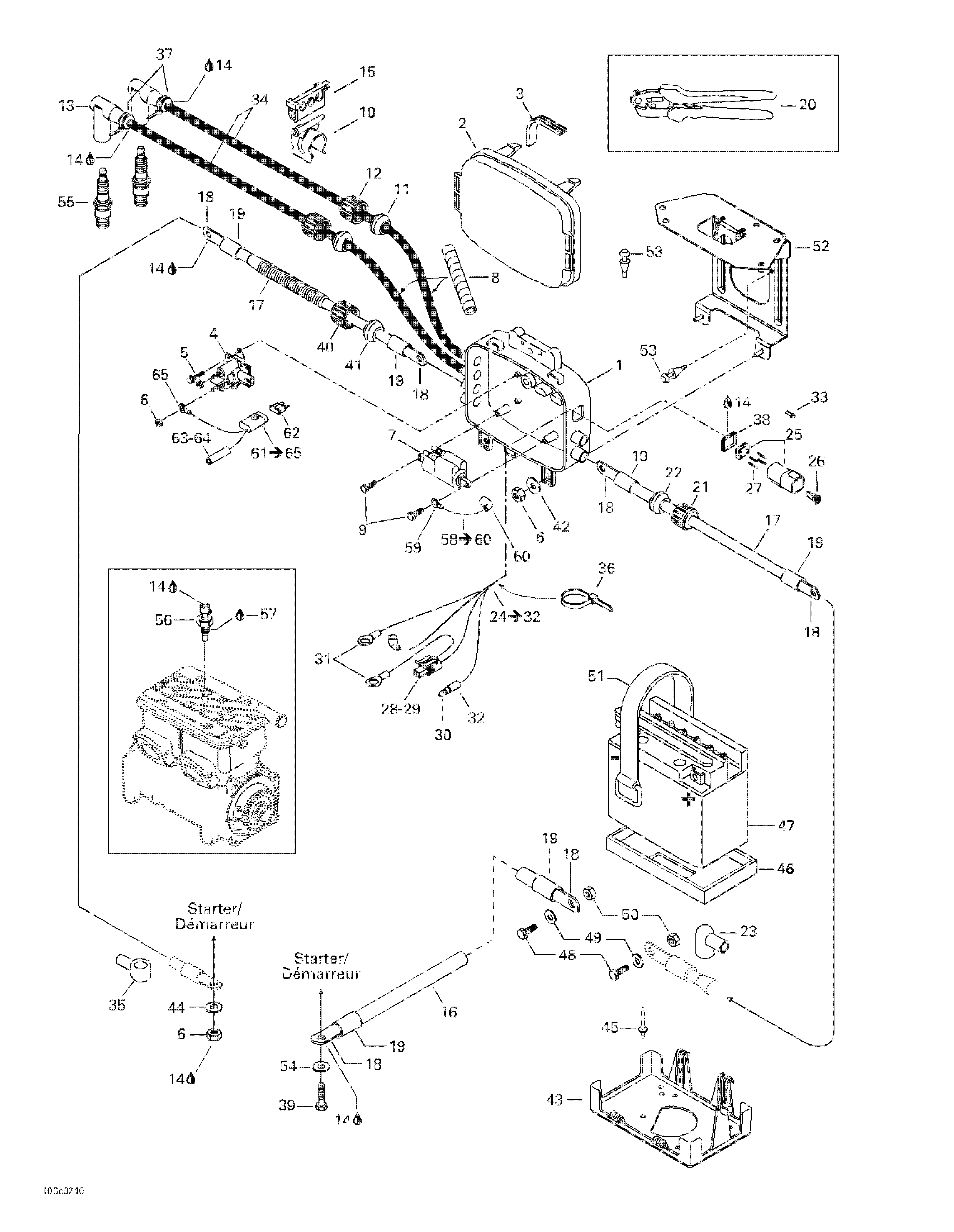

10- Rear Electrical Box для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1278001712 Electric Box BaseElectric Box Base
-
2278001433 Electric Box CoverElectric Box Cover
-
3278001173 GasketGasket
-
4278001766 Starter RelayStarter Relay
-
5210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7278000383 Ignition CoilIgnition Coil
-
8293100012 TubingTubing
-
9250000005 Tapping ScrewTapping Screw
-
10278000559 SupportSupport
-
11278000682 Grommet (Gray)Grommet (Gray)
-
12278000100 Electric Wire CapElectric Wire Cap
-
13278000237 Spark Plug CapSpark Plug Cap
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15278000245 3 Wires Support3 Wires Support
-
16278001667 Battery Ground Cable. Includes 18 to 19Battery Ground Cable. Includes 18 to 19
-
17278001679 Starter Positive Cable, Red. Includes 18,19,21,22,23Starter Positive Cable, Red. Includes 18,19,21,22,23
-
17278001646 Battery Positive Cable, Red. Includes 18,19,35,40,41Battery Positive Cable, Red. Includes 18,19,35,40,41
-
21278000100 Electric CapElectric Cap
-
22278000098 Grommet (Black)Grommet (Black)
-
23278000020 Wire CapWire Cap
-
24278001184 Electric Box Harness. Includes 24 - 32.Electric Box Harness. Includes 24 - 32.
-
25270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
26278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
27278000631 Male TerminalMale Terminal
-
28278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
29278001114 Female TerminalFemale Terminal
-
30278000230 Male TerminalMale Terminal
-
31278000992 Open BarrelOpen Barrel
-
32278001008 Insulating SheathInsulating Sheath
-
33293000052 Sealing CapSealing Cap
-
34278001268 Spark Plug WireSpark Plug Wire
-
35278000020 Wire CapWire Cap
-
36293750001 Tie Rap 94 mmTie Rap 94 mm
-
37293750002 Tie Rap 130 mmTie Rap 130 mm
-
38293200030 GasketGasket
-
39207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
40278000100 Electrical Wire CapElectrical Wire Cap
-
41278000098 Grommet (Black)Grommet (Black)
-
42234062600 Flat Washer 6 mmFlat Washer 6 mm
-
43278001430 Battery SupportBattery Support
-
44234061600 Flat Washer 6 mmFlat Washer 6 mm
-
45293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
46278001746 Battery Lower PadBattery Lower Pad
-
47278001756 BatteryBattery
-
48211000045 Hex. ScrewHex. Screw
-
49211200018 Flat Washer 6 mmFlat Washer 6 mm
-
50211100022 Nut M6Nut M6
-
51293850021 Rubber StrapRubber Strap
-
52278001615 Box SupportBox Support
-
53293830005 Rubber PlugRubber Plug
-
54234081600 Flat Washer 8 mmFlat Washer 8 mm
-
55278000609 Spark Plug BR8-ESSpark Plug BR8-ES
-
56278000965 Temperature SensorTemperature Sensor
-
57293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
58278000664 Ground Harness. Includes 58 - 60.Ground Harness. Includes 58 - 60.
-
59278000300 Open BarrelOpen Barrel
-
60278000228 Female TerminalFemale Terminal
-
61278001212 Fuse Harness (15 Amperes). Includes 61 - 65.Fuse Harness (15 Amperes). Includes 61 - 65.
-
62278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
63278001009 Female TerminalFemale Terminal
-
64278001007 Insulating Sheath (Simple)Insulating Sheath (Simple)
-
65278000300 Open BarrelOpen Barrel
