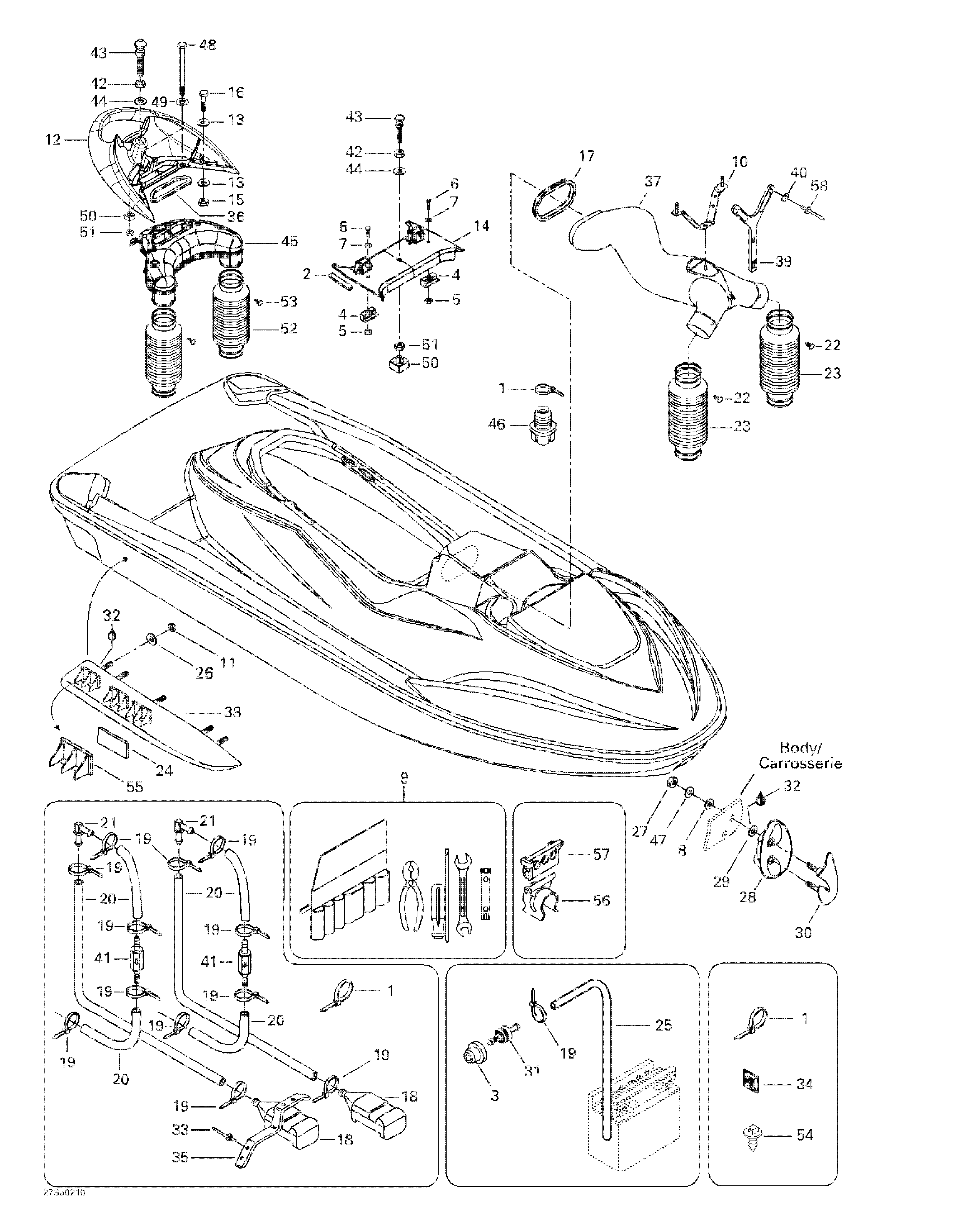

09- Body, Front View для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1414115200 Tie-RapTie-Rap
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
2293250008 GasketGasket
-
3293720029 GrommetGrommet
-
4291001525 Bridge Link. Includes 4 - 5.Bridge Link. Includes 4 - 5.
-
5211100033 NutNut
-
6207384060 Hex. Screw M8 x 40 (Scotch Grip)Hex. Screw M8 x 40 (Scotch Grip)
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8293830037 Rubber WasherRubber Washer
-
9295500783 Tool KitTool Kit
-
10291001614 Collector SupportCollector Support
-
11232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
12269000758 Grab HandleGrab Handle
-
13234081600 Flat Washer 8 mmFlat Washer 8 mm
-
14291001526 Upper BridgeUpper Bridge
-
15232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
16207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
17291001424 Collector JointCollector Joint
-
18292000688 Screen BailerScreen Bailer
-
19293750001 Tie Rap 94 mmTie Rap 94 mm
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
22293730024 Dard FastexDard Fastex
-
23291001777 Vent HoseVent Hose
-
24292000414 CushionCushion
-
25275500446 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
28292000800 Shell (Indigo Blue)Shell (Indigo Blue)
-
29234081600 Washer 8 mmWasher 8 mm
-
30292000798 Bow Eye (Indigo Blue)Bow Eye (Indigo Blue)
-
31275500499 Check ValveCheck Valve
-
32296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34293750025 Tie Rap MountTie Rap Mount
-
35292000398 LH Spring ClipLH Spring Clip
-
36293200059 Baffle SealBaffle Seal
-
37291001629 Front CollectorFront Collector
-
38292000594 R.H. SponsonR.H. Sponson
-
292000595 LH SponsonLH Sponson
-
39293850065 Rubber StrapRubber Strap
-
40234052600 Flat Washer 5 mmFlat Washer 5 mm
-
41276000093 Check ValveCheck Valve
-
42232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
43291000691 Latch StudLatch Stud
-
44234002600 Flat Washer 10 mmFlat Washer 10 mm
-
45291001417 Vent Tube Ass'yVent Tube Ass'y
-
46293720042 GrommetGrommet
-
47250200011 Washer 8 mmWasher 8 mm
-
48230262060 Hex. Screw M6 x 120 (Scotch Grip)Hex. Screw M6 x 120 (Scotch Grip)
-
49234062600 Flat Washer M6Flat Washer M6
-
50271000598 Nut Housing. Includes 50 - 51.Nut Housing. Includes 50 - 51.
-
51232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
52291001777 Hose VentHose Vent
-
53293730024 Dart FastexDart Fastex
-
54293730018 DartDart
-
55293450149 InsertInsert
-
56278000559 SupportSupport
-
57278000245 3 Wires Support3 Wires Support
-
58293150043 Rivet 3/16''Rivet 3/16''
