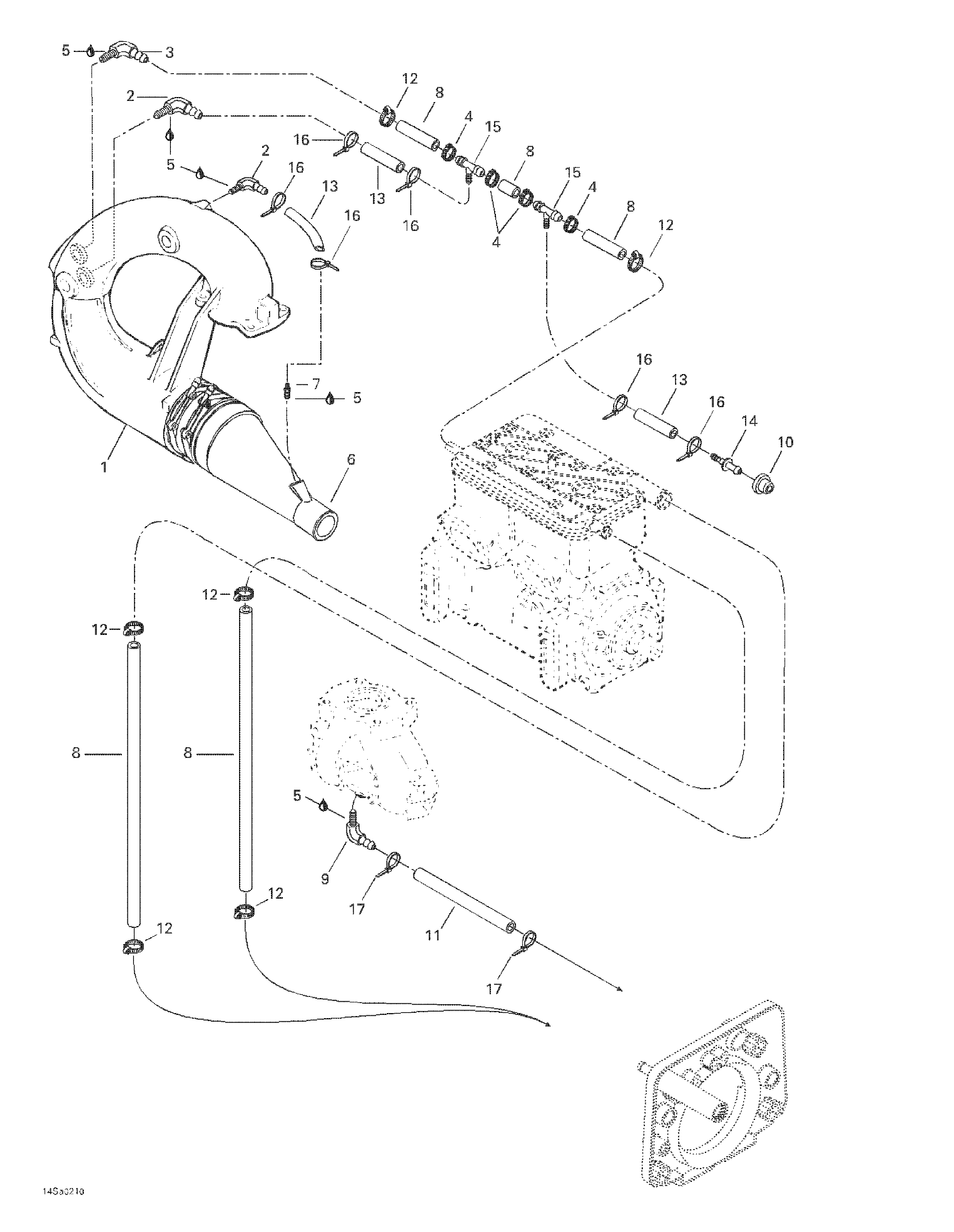

01- Cooling System для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1274000980 Tuned Pipe Ass'yTuned Pipe Ass'y
-
2293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
3293700023 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
4293650012 Oetiker ClampOetiker Clamp
-
5293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
6274000488 Exhaust Cone Ass'y. Includes 6 - 7.Exhaust Cone Ass'y. Includes 6 - 7.
-
7293710037 Male ConnectorMale Connector
-
8276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
9293700016 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
10293720029 GrommetGrommet
-
11275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
12293650130 Tridon ClampTridon Clamp
-
13276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
14293710039 Straight FittingStraight Fitting
-
15293710052 Double FittingDouble Fitting
-
16293750001 Tie Rap 94 mmTie Rap 94 mm
-
17293750002 Tie Rap 130 mmTie Rap 130 mm
