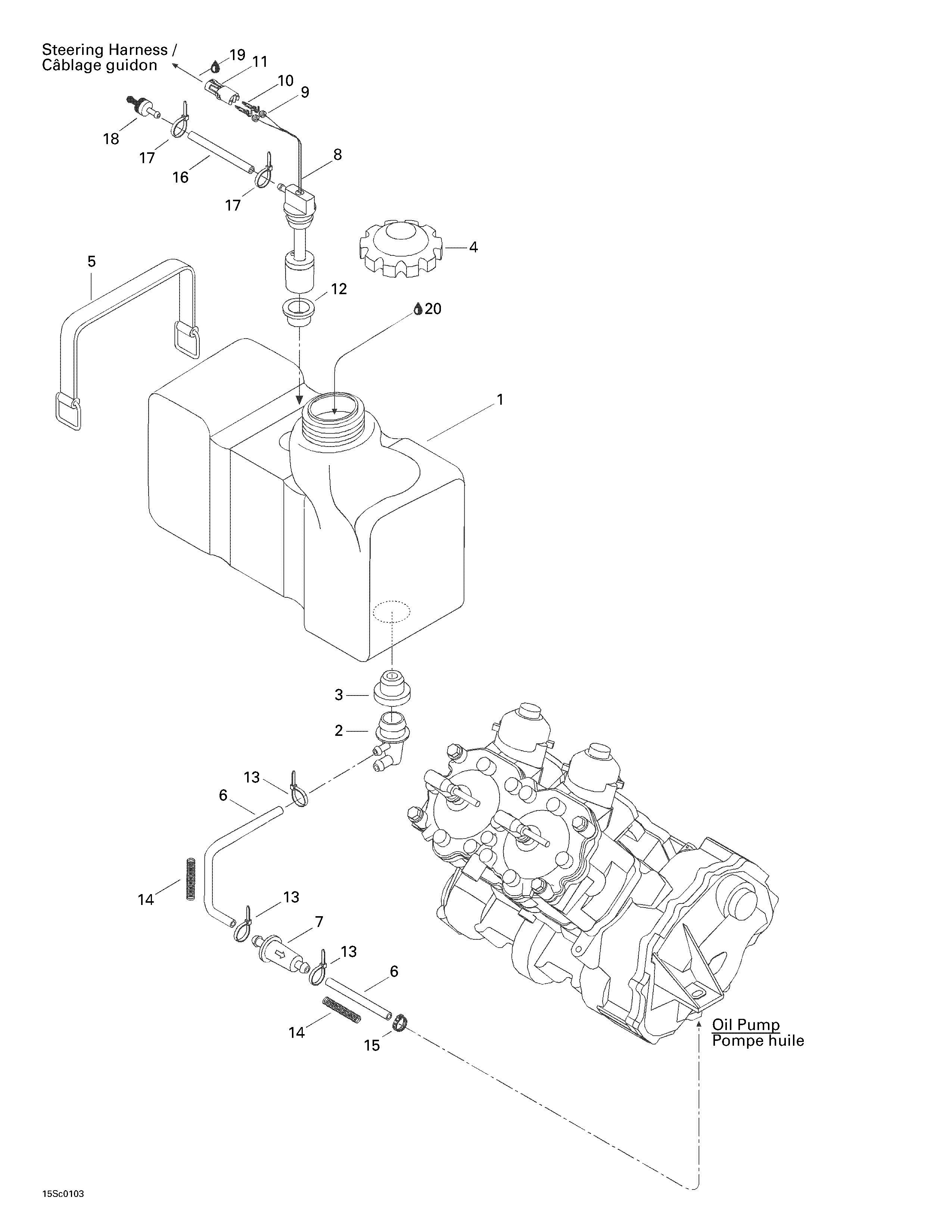

02- Oil Injection System для BRP XP, 5530/5531 - 2001

  • №
    Артикул
    Название
  • 1
    275000210 Oil Tank
    Oil Tank
  • 2
    293710070 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 3
    293720008 Grommet
    Grommet
  • 4
    572039600 Oil Cap
    Oil Cap
  • 5
    293850021 Strap
    Strap
  • 6
    275000007 Hose 8 mm (Meter)
    Hose 8 mm (Meter)
  • 7
    275000051 Oil Filter
    Oil Filter
  • 8
    278001402 Oil Level Sensor Ass'y. Includes 8 - 12.
    Oil Level Sensor Ass'y. Includes 8 - 12.
  • 9
    278000218 Wire Seal
    Wire Seal
  • 10
    278000222 Male Terminal
    Male Terminal
  • 11
    278000217 Female Housing (2 Circuits)
    Female Housing (2 Circuits)
  • 12
    293720008 Grommet
    Grommet
  • 13
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 14
    270000377 Spring
    Spring
  • 15
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 16
    275500139 Hose 6 mm (Meter)
    Hose 6 mm (Meter)
  • 17
    293750002 Locking Tie 142 mm
    Locking Tie 142 mm
  • 18
    275500398 Check Valve
    Check Valve
  • 19
    293550004 Synthetic
    Synthetic
  • 20
    413802900 Injection Oil (12 x 1 Liter)
    Injection Oil (12 x 1 Liter)
  • 413803000 Injection Oil (3 x 4 Liters)
    Injection Oil (3 x 4 Liters)
  • 413803200 Injection Oil (205 Liters)
    Injection Oil (205 Liters)
  • 413710500 Synthetic Injection Oil (12 x 1 Liter)
    Synthetic Injection Oil (12 x 1 Liter)
  • 413711000 Synthetic Injection Oil (3 x 4 Liters)
    Synthetic Injection Oil (3 x 4 Liters)
  • 413710700 Synthetic Injection Oil (205 Liters)
    Synthetic Injection Oil (205 Liters)
