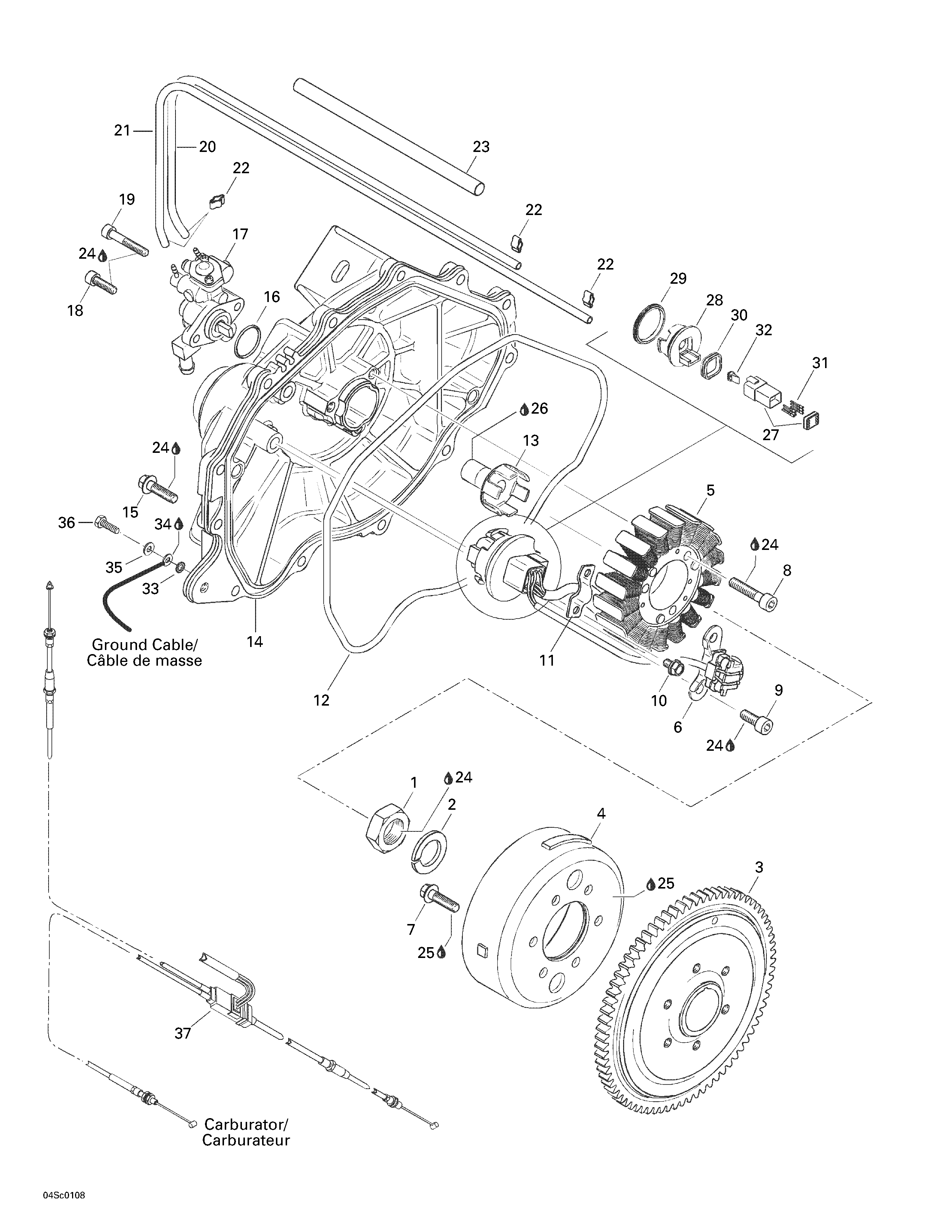

03- Magneto, Oil Pump для BRP RX, 5532/5533/5542/5543 - 2001

  • №
    Артикул
    Название
  • 1
    420942220 Hex. Nut M18
    Hex. Nut M18
  • 2
    290945757 Lock Washer 18 mm
    Lock Washer 18 mm
  • 3
    290966682 Flywheel Hub
    Flywheel Hub
  • 4
    290887945 Magneto Flywheel
    Magneto Flywheel
  • 5
    290886588 Stator Plate Ass'y
    Stator Plate Ass'y
  • 6
    290966832 Sensor Ass'y
    Sensor Ass'y
  • 7
    290640171 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 8
    205063044 Socket Head Screw M6 x 30
    Socket Head Screw M6 x 30
  • 9
    420241236 Socket Head Screw M6 x 16
    Socket Head Screw M6 x 16
  • 10
    207150844 Hex. Screw M5 x 8
    Hex. Screw M5 x 8
  • 11
    290853080 Retainer Plate
    Retainer Plate
  • 12
    290931690 O-Ring
    O-Ring
  • 13
    290837390 Oil Pump Shaft
    Oil Pump Shaft
  • 14
    290811066 Ignition Cover
    Ignition Cover
  • 15
    290240033 Hex. Flanged Screw M6 x 25
    Hex. Flanged Screw M6 x 25
  • 16
    293300018 O-Ring 18.5 mm
    O-Ring 18.5 mm
  • 17
    290888690 Oil Pump Ass'y
    Oil Pump Ass'y
  • 18
    205051660 Socket Head Screw M5 x 16
    Socket Head Screw M5 x 16
  • 19
    290940888 Socket Head Screw M5 x 30
    Socket Head Screw M5 x 30
  • 20
    414413800 Hose (Foot)
    Hose (Foot)
  • 21
    414413800 Hose (Foot)
    Hose (Foot)
  • 22
    420256408 Clamp
    Clamp
  • 23
    290260437 Protector Hose
    Protector Hose
  • 24
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 25
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 26
    413707000 Molykote 111
    Molykote 111
  • 27
    270000137 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 28
    270000138 Adaptor
    Adaptor
  • 29
    293300033 Gasket
    Gasket
  • 30
    293200030 Gasket
    Gasket
  • 31
    278000631 Terminal Male
    Terminal Male
  • 32
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 33
    234461608 Serrated Lock Washer 6 mm
    Serrated Lock Washer 6 mm
  • 34
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 35
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 36
    207361660 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 37
    277000915 Throttle Cable
    Throttle Cable
  • 38
    290889150 Engine Gasket Set (Not Shown)
    Engine Gasket Set (Not Shown)
  • 39
    290889155 Cylinder Gasket Set (Not Shown)
    Cylinder Gasket Set (Not Shown)
