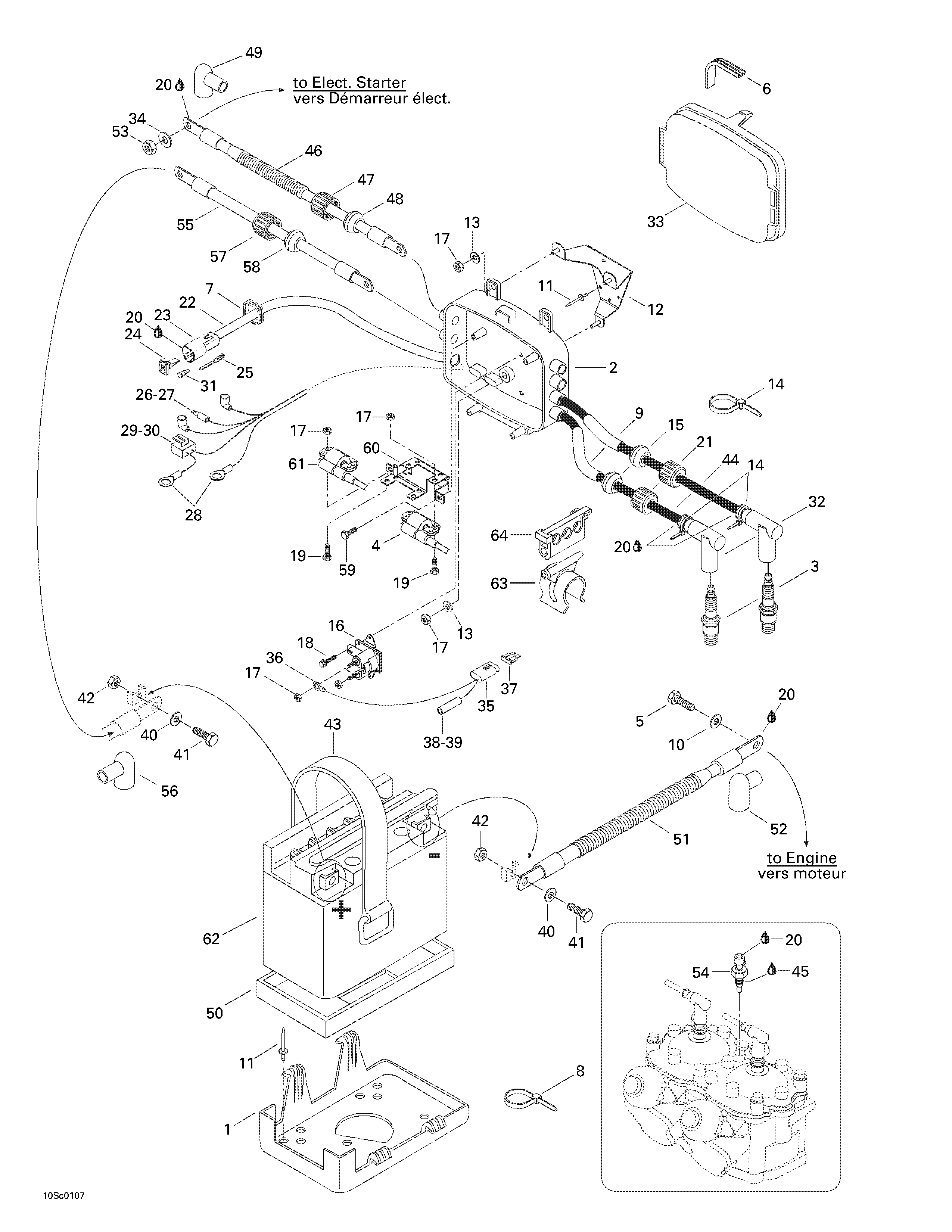

10- Rear Electrical Box для BRP GTX, 5526/5527/5538/5539 - 2001

№

Артикул

Название
1

278001430 Battery Support

Battery Support
2

278001712 Base

Base
3

278000609 Spark Plug (NGK BR8-ES)

Spark Plug (NGK BR8-ES)
4

278001416 Ignition Coil (MAG)

Ignition Coil (MAG)
5

207302060 Hex. Screw M10 x 20 (Scotch Grip)

Hex. Screw M10 x 20 (Scotch Grip)
6

278001173 Gasket

Gasket
7

293200030 Gasket

Gasket
8

293750001 Tie Rap 94 mm

Tie Rap 94 mm
293750002 Tie Rap 130 mm

Tie Rap 130 mm
9

275000007 Hose 8 mm

Hose 8 mm
10

234001600 Flat Washer 10 mm

Flat Washer 10 mm
11

293150037 Rivet

Rivet
12

278001487 Box Support Ass'y

Box Support Ass'y
13

234062600 Flat Washer 6 mm

Flat Washer 6 mm
14

293750002 Tie Rap 130 mm

Tie Rap 130 mm
15

278000682 Grommet (Gray)

Grommet (Gray)
16

278001376 Starter Relay

Starter Relay
17

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
18

210261040 Hex. Screw M6 x 10

Hex. Screw M6 x 10
19

207162060 Hex. Screw M6 x 20

Hex. Screw M6 x 20
20

293550004 Dielectric Grease, 150gr

Dielectric Grease, 150gr
21

278000100 Electric Cap

Electric Cap
22

278001423 Rear Electric Box Harness. Includes 22 - 31.

Rear Electric Box Harness. Includes 22 - 31.
23

270000137 Female Housing (6 Circuits)

Female Housing (6 Circuits)
24

278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
25

278000631 Male Terminal

Male Terminal
26

278000230 Male Terminal

Male Terminal
27

278001008 Insulating Sheath (Male Terminal)

Insulating Sheath (Male Terminal)
28

278000300 Open Barrel

Open Barrel
29

278001113 Male Housing (2 Circuits)

Male Housing (2 Circuits)
30

278001114 Female Terminal

Female Terminal
31

293000052 Sealing Cap

Sealing Cap
32

278000237 Spark Plug Cap

Spark Plug Cap
33

278001433 Cover

Cover
34

234061600 Washer 6 mm

Washer 6 mm
35

278001212 Harness Fuse 15 Amp. Includes 35 - 39.

Harness Fuse 15 Amp. Includes 35 - 39.
36

278000300 Open Barrel

Open Barrel
37

278000343 15 Amp. Fuse

15 Amp. Fuse
38

278001009 Female Terminal

Female Terminal
39

278001007 Insulating Sheath (Simple)

Insulating Sheath (Simple)
40

211200018 Flat Washer 6 mm

Flat Washer 6 mm
41

211000045 Hex. Screw

Hex. Screw
42

211100022 Nut M6

Nut M6
43

293850021 Strap

Strap
44

278001268 Spark Plug Wire

Spark Plug Wire
45

293800038 Loctite 518, 50ml

Loctite 518, 50ml
46

278001437 Starter Cable (Red). Includes 46 - 49.

Starter Cable (Red). Includes 46 - 49.
47

278000100 Electrical Box Cap

Electrical Box Cap
48

278000098 Grommet (1 Circuit) (Black)

Grommet (1 Circuit) (Black)
49

278000020 Protector Cap

Protector Cap
50

278001234 Battery Lower Pad

Battery Lower Pad
51

278001439 Battery Ground Cable. Includes 51 - 52.

Battery Ground Cable. Includes 51 - 52.
53

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
54

278001016 Temperature Sensor

Temperature Sensor
55

278001438 Battery Cable (Red). Includes 55 - 58.

Battery Cable (Red). Includes 55 - 58.
56

278000020 Protector Cap

Protector Cap
57

278000100 Electrical Box Cap

Electrical Box Cap
58

278000098 Grommet (1 Circuit) (Black)

Grommet (1 Circuit) (Black)
59

209561640 Hex. Tapping Screw

Hex. Tapping Screw
60

278001421 Ignition Coil Support

Ignition Coil Support
61

278001414 Ignition Coil (PTO)

Ignition Coil (PTO)
62

278000712 Battery

Battery
63

278000559 Collar Support

Collar Support
64

278000245 Wire Support

Wire Support
