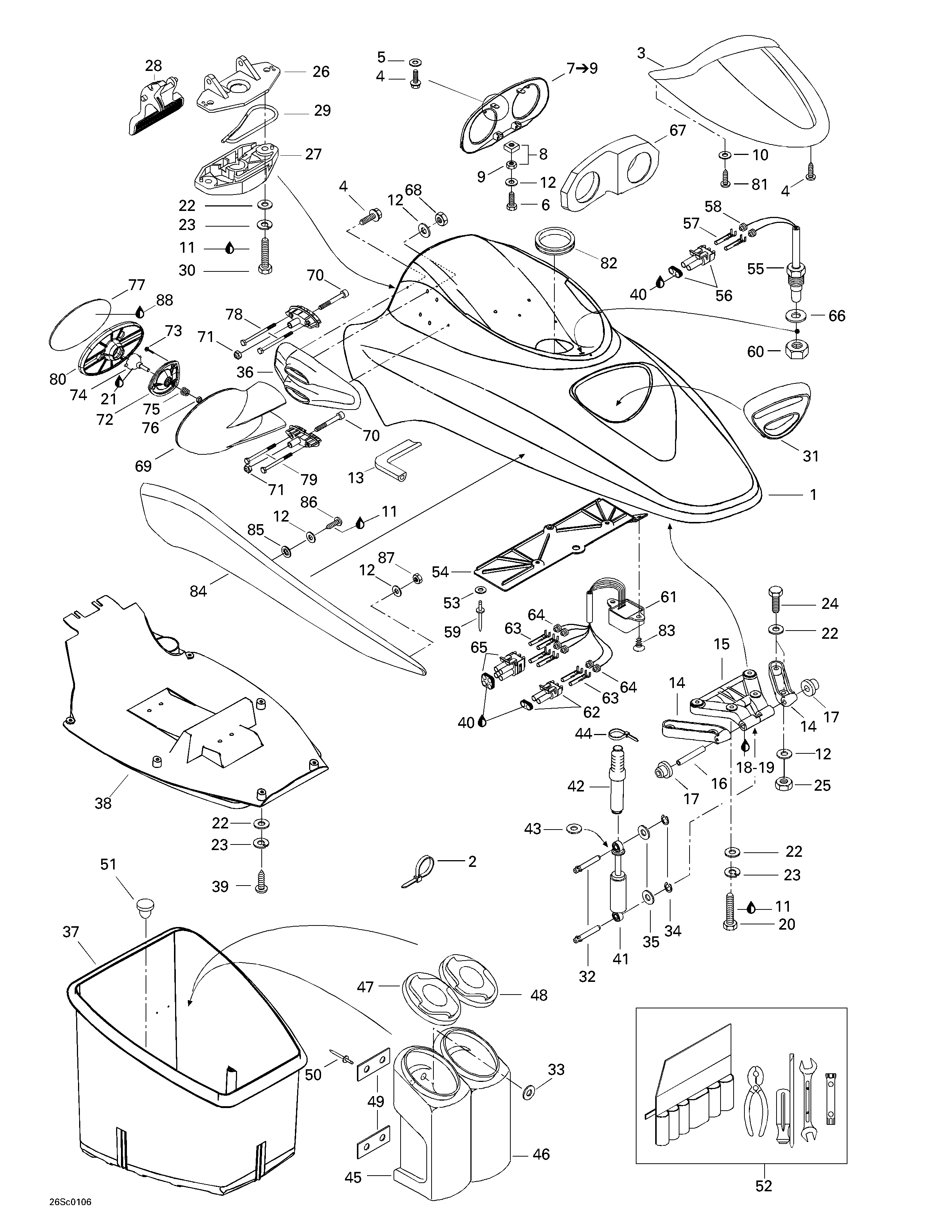

09- Front Storage Compartment для BRP GTX DI, 5528/5529/5540/5541 - 2001

№

Артикул

Название
1

269500768 Storage Cover Upper (Blue). GTX DI 5528/5529.

Storage Cover Upper (Blue). GTX DI 5528/5529.
269500743 Storage Cover Upper (Red). GTX DI 5540/5541.

Storage Cover Upper (Red). GTX DI 5540/5541.
2

293750002 Tie Rap 130 mm

Tie Rap 130 mm
3

269500769 Deflector (Blue). GTX DI 5528/5529.

Deflector (Blue). GTX DI 5528/5529.
269500744 Deflector (Red). GTX DI 5540/5541.

Deflector (Red). GTX DI 5540/5541.
4

241141660 Screw for Plastic K40 x 16

Screw for Plastic K40 x 16
5

234041600 Washer 4 mm

Washer 4 mm
6

207162560 Screw Hex. M6 x 25

Screw Hex. M6 x 25
7

269500588 Dash Board. Includes 7 - 9.

Dash Board. Includes 7 - 9.
8

269500725 Nut Housing Ass'y. Includes 8 - 9.

Nut Housing Ass'y. Includes 8 - 9.
9

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
10

211200007 Flat Washer

Flat Washer
11

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
12

234062600 Washer 6 mm

Washer 6 mm
13

293250047 Seal Neoprene (Meter)

Seal Neoprene (Meter)
14

269700022111 Hinge RH

Hinge RH
269700023111 Hinge LH

Hinge LH
15

269700038 Hinge Cover (White)

Hinge Cover (White)
16

269700024 Axle

Axle
17

293350016 Cushion

Cushion
18

293800054 Loctite 648, 50 ml

Loctite 648, 50 ml
19

293800041 Loctite - Primer

Loctite - Primer
20

207162060 Hex. Screw M6 x 20

Hex. Screw M6 x 20
21

293550010 Synthetic Grease, 400 gr

Synthetic Grease, 400 gr
22

234061600 Washer 6 mm

Washer 6 mm
23

234161601 Lock Washer 6 mm

Lock Washer 6 mm
24

207063560 Hex. Screw M6 x 35

Hex. Screw M6 x 35
25

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
26

269700020 Latch Cover

Latch Cover
27

269000015 Latch Base

Latch Base
28

269000016 Latch Lever

Latch Lever
29

269700017 Spring

Spring
30

207162560 Hex. Screw M6 x 25

Hex. Screw M6 x 25
31

269500746 Intake Grill

Intake Grill
32

211400006 Short Pin

Short Pin
33

234032600 Washer 3 mm

Washer 3 mm
34

293370008 Circlip

Circlip
35

234081600 Washer 8 mm

Washer 8 mm
36

269500757 Support (Mirror) RH (Blue). GTX DI 5528/5529.

Support (Mirror) RH (Blue). GTX DI 5528/5529.
269500747 Support (Mirror) RH (Red). GTX DI 5540/5541.

Support (Mirror) RH (Red). GTX DI 5540/5541.
269500759 Support (Mirror) LH (Blue). GTX DI 5528/5529.

Support (Mirror) LH (Blue). GTX DI 5528/5529.
269500749 Support (Mirror) LH. GTX DI 5540/5541.

Support (Mirror) LH. GTX DI 5540/5541.
37

269500269 Front Storage Tray

Front Storage Tray
38

269500660 Lower Storage Cover

Lower Storage Cover
39

208661660 Phillips Pan Head Screw M6 x 16

Phillips Pan Head Screw M6 x 16
40

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
41

269500261 Gas Spring Ass'y. Includes 41 - 44.

Gas Spring Ass'y. Includes 41 - 44.
42

291000919 Bellow

Bellow
43

211200034 Washer Aluminum

Washer Aluminum
44

293750001 Tie Rap 94 mm

Tie Rap 94 mm
45

269500606 Extinguisher Housing

Extinguisher Housing
46

269500605 Storage Housing

Storage Housing
47

269500603 Extinguisher Housing Cover

Extinguisher Housing Cover
48

269500604 Storage Housing Cover

Storage Housing Cover
49

293250037 Gasket

Gasket
50

293150033 Pop Rivet 1/8

Pop Rivet 1/8
51

293830005 Rubber Plug

Rubber Plug
52

295500783 Tool Kit

Tool Kit
53

234051500 Washer 5 mm

Washer 5 mm
54

278000857 Mounting Plate

Mounting Plate
55

278000851 Temperature Sensor. Includes 55 - 58.

Temperature Sensor. Includes 55 - 58.
56

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
57

278000223 Female Terminal (18 Gauge)

Female Terminal (18 Gauge)
58

278000218 Wire Seal (16 and 18 Gauge - Green)

Wire Seal (16 and 18 Gauge - Green)
59

293150008 Rivet 3/16 x .565

Rivet 3/16 x .565
60

250100004 Plastic Nut M10

Plastic Nut M10
61

278001243 Compass. Includes 61 - 65.

Compass. Includes 61 - 65.
62

278000220 Male Housing (2 Circuits) (Packard)

Male Housing (2 Circuits) (Packard)
63

278000223 Female Terminal (18 Gauge) (Packard)

Female Terminal (18 Gauge) (Packard)
64

278000218 WireSeal(16and18Gauge-green)(Packard)

WireSeal(16and18Gauge-green)(Packard)
65

278000891 Male Housing (4 Circuits) (Packard)

Male Housing (4 Circuits) (Packard)
66

234000600 Flat Washer 6 mm

Flat Washer 6 mm
67

269500585 Gauge Support

Gauge Support
68

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
69

269500772 Mirror RH Ass'y (Blue). Includes 69 - 80. GTX DI 5528/5529.

Mirror RH Ass'y (Blue). Includes 69 - 80. GTX DI 5528/5529.
269500810 Mirror RH Ass'y (Red). GTX DI 5540/5541.

Mirror RH Ass'y (Red). GTX DI 5540/5541.
269500775 Mirror LH Ass'y (Blue). GTX DI 5528/5529.

Mirror LH Ass'y (Blue). GTX DI 5528/5529.
269500809 Mirror LH Ass'y (Red). GTX DI 5540/5541.

Mirror LH Ass'y (Red). GTX DI 5540/5541.
70

205087560 Socket Head Screw M8 x 75

Socket Head Screw M8 x 75
71

232581600 Elastic Stop Nut M8

Elastic Stop Nut M8
73

241141660 Screw K40 x 16

Screw K40 x 16
74

269500079 Ball Joint

Ball Joint
75

269500453 Spring

Spring
76

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
77

269500454 Mirror

Mirror
78

207068060 Hex. Screw M6 x 80

Hex. Screw M6 x 80
79

207067060 Hex. Screw M6 x 70

Hex. Screw M6 x 70
81

211000098 Screw

Screw
82

570276900 Rubber Ring

Rubber Ring
83

293730016 Dart

Dart
84

269500713 Moulding RH. Includes 84 - 85.

Moulding RH. Includes 84 - 85.
269500712 Moulding LH

Moulding LH
85

293100003 Nut M6

Nut M6
86

205461660 Socket Screw M6 x 16

Socket Screw M6 x 16
87

232061600 Nut M6

Nut M6
88

296000309 Sealant Silicone, Clear

Sealant Silicone, Clear
