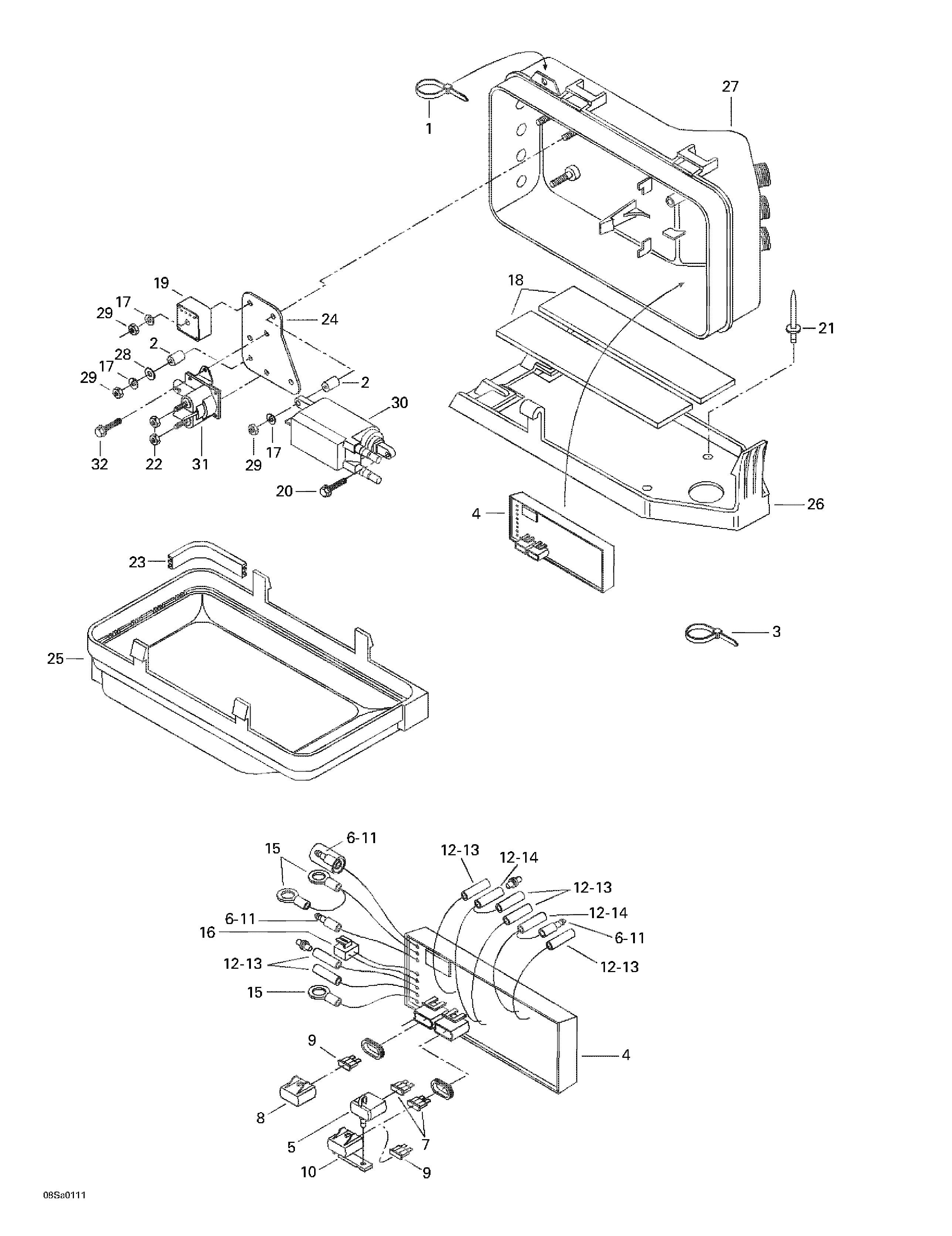

10- Electrical Box для BRP GTS, 5551 - 2001
-
№АртикулНазвание
-
1293750009 Tie Rap 160 mmTie Rap 160 mm
-
2278000235 SpacerSpacer
-
3293750002 Tie Rap 130 mmTie Rap 130 mm
-
4278001025 Electronic Module Ass'y. Includes 4 - 16.Electronic Module Ass'y. Includes 4 - 16.
-
5278000379 Fuse HolderFuse Holder
-
6278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
7278000344 5 Amp. Fuse5 Amp. Fuse
-
8278000378 Fuse CapFuse Cap
-
9278000343 15 Amp. Fuse15 Amp. Fuse
-
10278001326 Fuse Holder CapFuse Holder Cap
-
11278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
12278001009 Female Terminal (14-18 Gauge)Female Terminal (14-18 Gauge)
-
13278001007 Insulation Sheath (Simple)Insulation Sheath (Simple)
-
14278000770 Insulation Sheath (Double)Insulation Sheath (Double)
-
15278000992 Open Barrel 1/4'' (14-18 Gauge)Open Barrel 1/4'' (14-18 Gauge)
-
16278001114 Female TerminalFemale Terminal
-
17234161601 Lock Washer 6 mmLock Washer 6 mm
-
18293830012 Rubber StripRubber Strip
-
19278000123 Rectifier Ass'yRectifier Ass'y
-
20250000005 Hex. Tapping Screw M6.3 x 25Hex. Tapping Screw M6.3 x 25
-
21293150037 Rivet 3/16Rivet 3/16
-
22232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
23278000181 GasketGasket
-
24278000615 Mounting PlateMounting Plate
-
25278001082 Electric Box CoverElectric Box Cover
-
26278001119 Electric Box SupportElectric Box Support
-
27278001085 Electric Box BaseElectric Box Base
-
28234061600 Flat Washer 6 mmFlat Washer 6 mm
-
29232061600 Hex. Nut M6Hex. Nut M6
-
30278000586 Ignition CoilIgnition Coil
-
31278001376 Starter RelayStarter Relay
-
32210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
