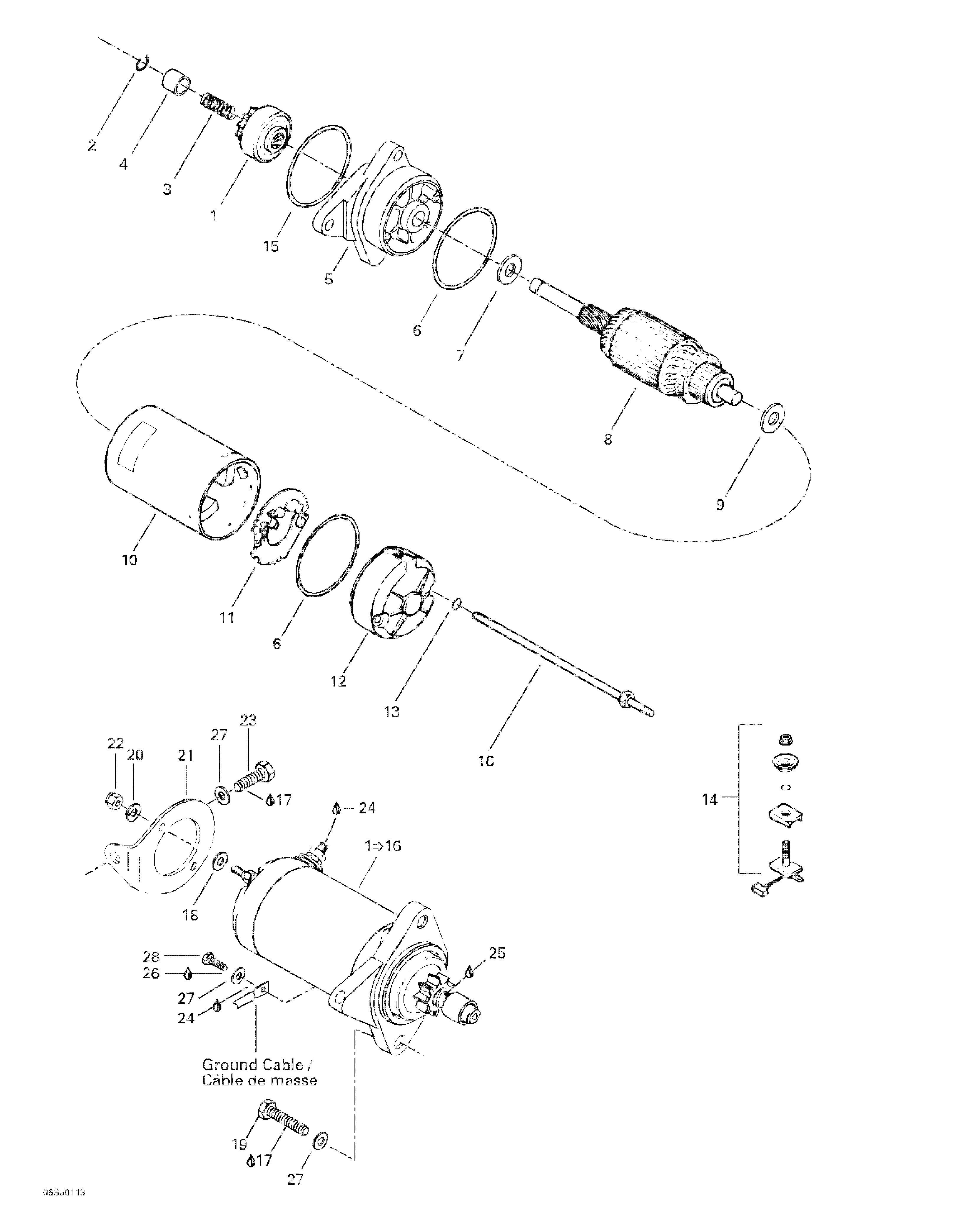

04- Starter для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1278001300 Starter Ass'y. Includes 1 - 16.Starter Ass'y. Includes 1 - 16.
-
1295500089 Starter Clutch Ass'yStarter Clutch Ass'y
-
2410207700 CirclipCirclip
-
3278000168 SpringSpring
-
4278000254 Stopper BushingStopper Bushing
-
5278000697 Housing Ass'yHousing Ass'y
-
6278000695 O-RingO-Ring
-
7278000054 Flat WasherFlat Washer
-
8278000699 ArmatureArmature
-
9278000056 Flat WasherFlat Washer
-
10278000057 Yoke Ass'yYoke Ass'y
-
11278001296 Brush HolderBrush Holder
-
12278000251 Commutator End FrameCommutator End Frame
-
13278000060 O-RingO-Ring
-
14278001297 Brush Starter KitBrush Starter Kit
-
15278000694 O-RingO-Ring
-
16278000170 Retainer StudRetainer Stud
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18234051600 Washer 5 mmWasher 5 mm
-
19207183060 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
20234151601 Lock Washer 5 mmLock Washer 5 mm
-
21270000080 Starter SupportStarter Support
-
22232051600 Hex. Nut M5Hex. Nut M5
-
23207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25413707000 Molykote 111Molykote 111
-
26293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
27234081600 Flat Washer 8 mmFlat Washer 8 mm
-
28207382560 Hex. Screw M8 x 25Hex. Screw M8 x 25
