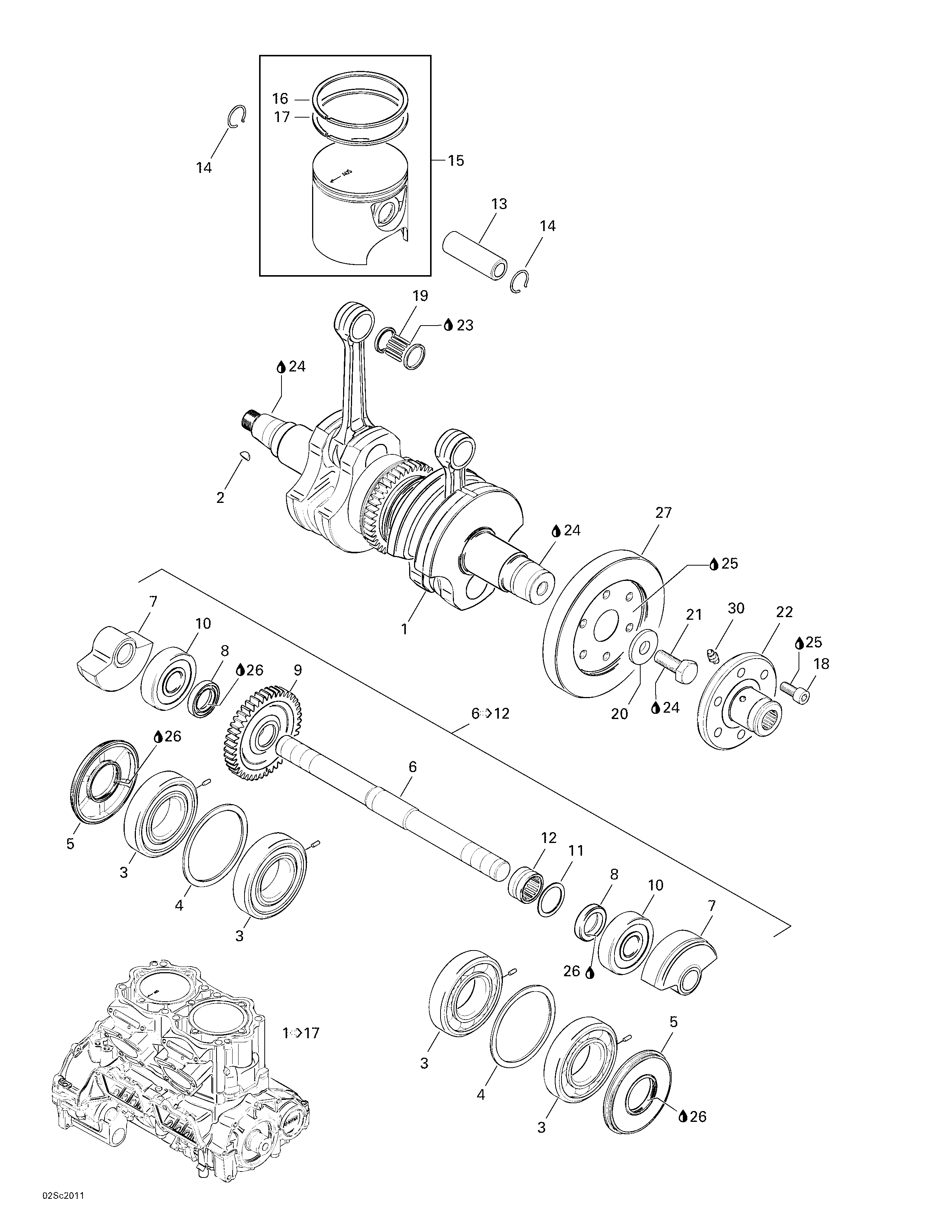

01- Crankshaft And Pistons для BRP RX, 5513/5514 - 2000

№

Артикул

Название
1

290094702 Short Block Ass'y. Includes 1 - 17.

Short Block Ass'y. Includes 1 - 17.
1

290887762 Crankshaft Ass'y. Includes 1 - 5.

Crankshaft Ass'y. Includes 1 - 5.
2

420246055 Woodruff Key

Woodruff Key
3

420432271 Ball Bearing 6208 Ass'y

Ball Bearing 6208 Ass'y
4

420926190 Washer

Washer
5

290931731 Oil Seal

Oil Seal
6

290837387 Shaft Balance Ass'y. Includes 6 - 12.

Shaft Balance Ass'y. Includes 6 - 12.
10

290932098 Ball Bearing 6304

Ball Bearing 6304
11

420927192 Washer

Washer
12

290232555 Needle Bearing

Needle Bearing
13

290916395 Piston Pin

Piston Pin
14

290845465 Circlip

Circlip
15

290888570 Piston with 2 Rings, 87.91 mm. Includes 15 - 17.

Piston with 2 Rings, 87.91 mm. Includes 15 - 17.
290888571 Piston Oversize, 2 Rings, 88.16 mm

Piston Oversize, 2 Rings, 88.16 mm
16

290815175 Semi-Trapez Ring 88.00 mm

Semi-Trapez Ring 88.00 mm
290815176 Semi-Trapez Ring 88.25 mm

Semi-Trapez Ring 88.25 mm
17

290815192 Semi-Trapez Ring 88.00 mm

Semi-Trapez Ring 88.00 mm
290815193 Semi-Trapez Ring 88.25 mm

Semi-Trapez Ring 88.25 mm
18

205082060 Socket Head Screw M8 x 20

Socket Head Screw M8 x 20
19

290832550 Needle Bearing

Needle Bearing
20

290827782 Washer

Washer
21

290640120 Hex. Screw M12 x 30

Hex. Screw M12 x 30
22

290958122 Coupling Flange Ass'y

Coupling Flange Ass'y
23

290499113 Grease Fiting

Grease Fiting
24

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml
26

413707000 Molykote 111

Molykote 111
27

290958082 Coupling

Coupling
28

290888131 Engine Gasket Set (Not Shown). .

Engine Gasket Set (Not Shown). .
29

290888136 Cylinder Gasket Set (Not Shown). .

Cylinder Gasket Set (Not Shown). .
