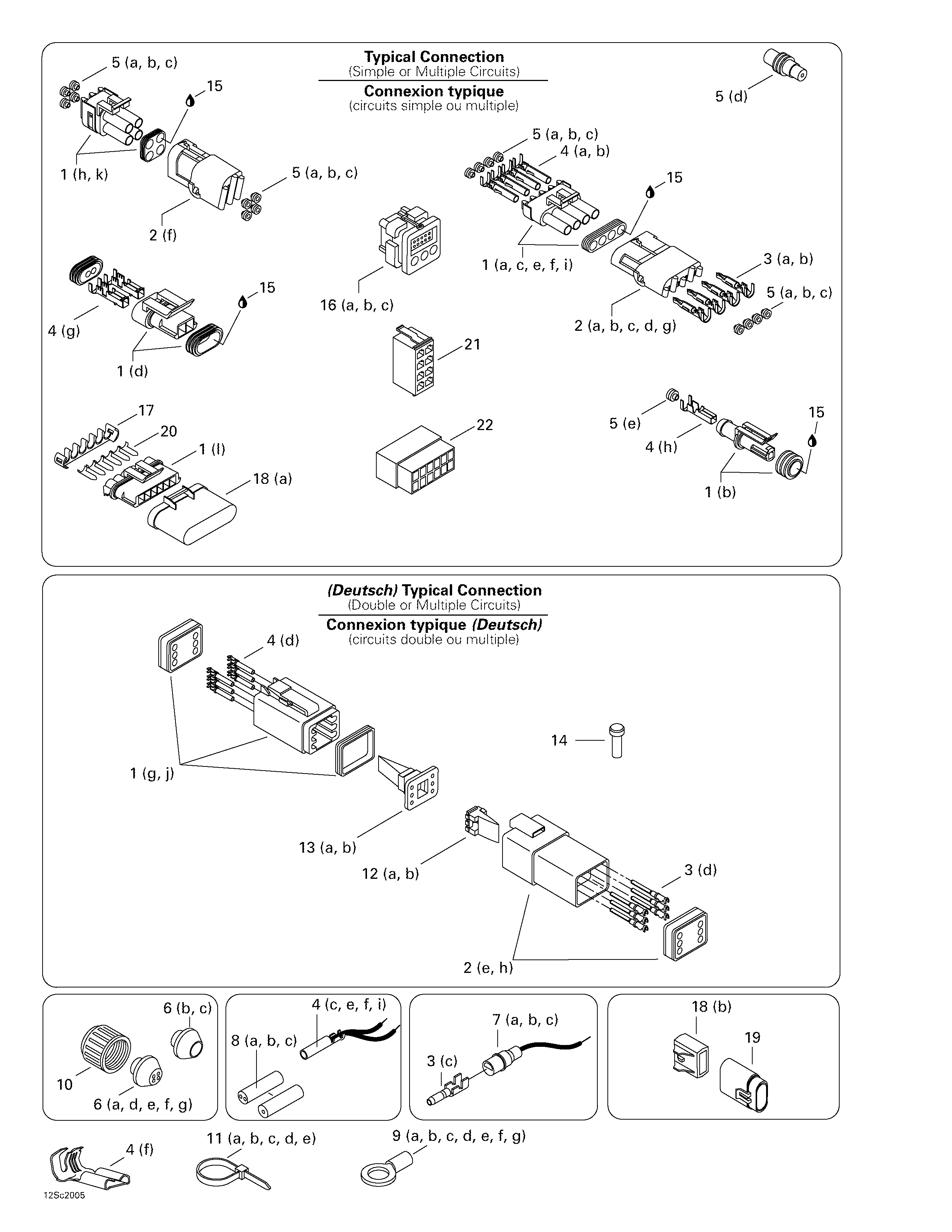

10- Typical Electrical Connections для BRP GTX DI, 5649/5659 - 2000

  • №
    Артикул
    Название
  • 1a
    278000219 Male Housing (1 Circuit)(Packard)
    Male Housing (1 Circuit)(Packard)
  • 1b
    278001012 Male Housing (1 Circuit)(AMP)
    Male Housing (1 Circuit)(AMP)
  • 1c
    278000220 Male Housing (2 Circuits)(Packard)
    Male Housing (2 Circuits)(Packard)
  • 1d
    278001113 Male Housing (2 Circuit)
    Male Housing (2 Circuit)
  • 1e
    278000273 Male Housing (3 Circuits)(Packard)
    Male Housing (3 Circuits)(Packard)
  • 1f
    278000395 Male Housing (4 Circuits)(Packard)
    Male Housing (4 Circuits)(Packard)
  • 1g
    278000739 Male Housing (4 Circuits)(Deutsch)
    Male Housing (4 Circuits)(Deutsch)
  • 1h
    278000891 Male Housing (4 Circuits)
    Male Housing (4 Circuits)
  • 1i
    278000221 Male Housing (6 Circuits)(Packard)
    Male Housing (6 Circuits)(Packard)
  • 1j
    278000736 Male Housing (6 Circuits)(Deutsch)
    Male Housing (6 Circuits)(Deutsch)
  • 1k
    278001318 Male Housing (6 Circuits) (AMP)
    Male Housing (6 Circuits) (AMP)
  • 1l
    278001327 Male Housing (6 Circuits) (Packard)
    Male Housing (6 Circuits) (Packard)
  • 2a
    278000161 Female Housing (1 Circuit)(Packard)
    Female Housing (1 Circuit)(Packard)
  • 2b
    278000217 Female Housing (2 Circuits)(Packard)
    Female Housing (2 Circuits)(Packard)
  • 2c
    278000281 Female Housing (3 Circuits)(Packard)
    Female Housing (3 Circuits)(Packard)
  • 2d
    278000394 Female Housing (4 Circuits)(Packard)
    Female Housing (4 Circuits)(Packard)
  • 2e
    278000635 Female Housing (4 Circuits)(Deutsch)
    Female Housing (4 Circuits)(Deutsch)
  • 2f
    278000890 Female Housing (4 Circuits)
    Female Housing (4 Circuits)
  • 2g
    278000156 Female Housing (6 Circuits)(Packard)
    Female Housing (6 Circuits)(Packard)
  • 2h
    270000137 Female Housing (6 Circuits)(Deutsch)
    Female Housing (6 Circuits)(Deutsch)
  • 3a
    409004300 Male Terminal (16 Gauge)(Packard)
    Male Terminal (16 Gauge)(Packard)
  • 3b
    278000222 Male Terminal (18 Gauge)(Packard)
    Male Terminal (18 Gauge)(Packard)
  • 3c
    278000230 Male Terminal (20 Gauge)(AMP)
    Male Terminal (20 Gauge)(AMP)
  • 3d
    278000631 Male Terminal (16-18 Gauge)(Deutsch)
    Male Terminal (16-18 Gauge)(Deutsch)
  • 4a
    409007300 Female Terminal (16 Gauge)(Packard)
    Female Terminal (16 Gauge)(Packard)
  • 4b
    278000223 Female Terminal (18 Gauge)(Packard)
    Female Terminal (18 Gauge)(Packard)
  • 4c
    278001009 Female Terminal (14-18 Gauge)(AMP)
    Female Terminal (14-18 Gauge)(AMP)
  • 4d
    278000632 Female Terminal (16-18 Gauge)(Deutsch)
    Female Terminal (16-18 Gauge)(Deutsch)
  • 4e
    290964068 Female Terminal (14-18 Gauge)(AMP)
    Female Terminal (14-18 Gauge)(AMP)
  • 4f
    278000228 Female Terminal (12-18 Gauge)(AMP)
    Female Terminal (12-18 Gauge)(AMP)
  • 4g
    278001114 Female Terminal
    Female Terminal
  • 4h
    278001014 Female Terminal
    Female Terminal
  • 4i
    278000995 Female Terminal (AMP)
    Female Terminal (AMP)
  • 5a
    278000218 Wire Seal (16-18 Gauge) (Green)(Packard)
    Wire Seal (16-18 Gauge) (Green)(Packard)
  • 5b
    278000585 Wire Seal (20 Gauge) (Purple)(Packard)
    Wire Seal (20 Gauge) (Purple)(Packard)
  • 5c
    278001065 Wire Seal (20 Gauge)
    Wire Seal (20 Gauge)
  • 5d
    278000216 Wire Seal (Cap)
    Wire Seal (Cap)
  • 5e
    278001013 Wire Seal (Yellow)
    Wire Seal (Yellow)
  • 6a
    293720030 Grommet (1 Circuit) (Blue)
    Grommet (1 Circuit) (Blue)
  • 6b
    278000098 Grommet (1 Circuit) (Black)
    Grommet (1 Circuit) (Black)
  • 6c
    278000682 Grommet (1 Circuit) (Light Gray)
    Grommet (1 Circuit) (Light Gray)
  • 6D
    293720025 Grommet (2 Circuit) (Gray)
    Grommet (2 Circuit) (Gray)
  • 6e
    278000193 Grommet (3 Circuit) (Black)
    Grommet (3 Circuit) (Black)
  • 6f
    570026800 Grommet (4 Circuit) (Red)
    Grommet (4 Circuit) (Red)
  • 6g
    293720034 Grommet (4 Circuit) (White)
    Grommet (4 Circuit) (White)
  • 7A
    278000231 Insulating Sheath (Male Terminal)
    Insulating Sheath (Male Terminal)
  • 7b
    278001008 Insulating Sheath (Male Terminal)
    Insulating Sheath (Male Terminal)
  • 7c
    290964077 Insulating Sheath (Male Terminal)
    Insulating Sheath (Male Terminal)
  • 8a
    278001007 Insulating Sheath (Simple) (Female Terminal)
    Insulating Sheath (Simple) (Female Terminal)
  • 8b
    290964072 InsulatingSheath(Simple)(FemaleTerminal)
    InsulatingSheath(Simple)(FemaleTerminal)
  • 8c
    278000770 Insulating Sheath (Double) (Female Terminal)
    Insulating Sheath (Double) (Female Terminal)
  • 9a
    278000992 Open Barrel 1/4'' (14-18 Gauge)(AMP)
    Open Barrel 1/4'' (14-18 Gauge)(AMP)
  • 9b
    409003200 Open Barrel (Essex)
    Open Barrel (Essex)
  • 9c
    278000300 Open Barrel (AMP)
    Open Barrel (AMP)
  • 9d
    278001138 Open Barrel (8 mm)
    Open Barrel (8 mm)
  • 9e
    278001165 Open Barrel
    Open Barrel
  • 9f
    278001323 Open Barrel (AMP)
    Open Barrel (AMP)
  • 9g
    278001324 Open Barrel (AMP)
    Open Barrel (AMP)
  • 10
    278000100 Electric Box Cap
    Electric Box Cap
  • 11a
    293750001 Tie Rap(94 mm) (Dennison)
    Tie Rap(94 mm) (Dennison)
  • 11b
    293750002 Locking Tie 142 mm
    Locking Tie 142 mm
  • 11c
    294000606 Tie Rap(180 mm) (Panduit)
    Tie Rap(180 mm) (Panduit)
  • 11d
    293750009 Tie Rap(155 mm) (Panduit)
    Tie Rap(155 mm) (Panduit)
  • 11e
    293750008 Tie Rap(350 mm) (Dennison)
    Tie Rap(350 mm) (Dennison)
  • 12a
    278000738 (Male)SecondaryLock(4Circuits)(Deutsch)
    (Male)SecondaryLock(4Circuits)(Deutsch)
  • 12b
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 13a
    278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 13b
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 14
    293000052 Sealing Cap (Deutsch)
    Sealing Cap (Deutsch)
  • 15
    293550004 Dielectric Grease, 150gr
    Dielectric Grease, 150gr
  • 16a
    278000993 Male Housing (26 Circuits) (AMP)
    Male Housing (26 Circuits) (AMP)
  • 16b
    278001062 Male Housing (26 Circuits) (AMP)
    Male Housing (26 Circuits) (AMP)
  • 16c
    278001063 Male Housing (26 Circuits) (AMP)
    Male Housing (26 Circuits) (AMP)
  • 17
    278001328 Secondary Lock
    Secondary Lock
  • 18a
    278001330 Cap (6 Circuits)
    Cap (6 Circuits)
  • 18b
    278001326 Fuse Holder Cap
    Fuse Holder Cap
  • 19
    278001325 Fuse Holder
    Fuse Holder
  • 20
    278001329 Buss Bar
    Buss Bar
  • 21
    278001321 Male Housing (8 Circuits) (Carlington)
    Male Housing (8 Circuits) (Carlington)
  • 22
    278001322 Male Housing (12 Circuits) (AMP)
    Male Housing (12 Circuits) (AMP)
