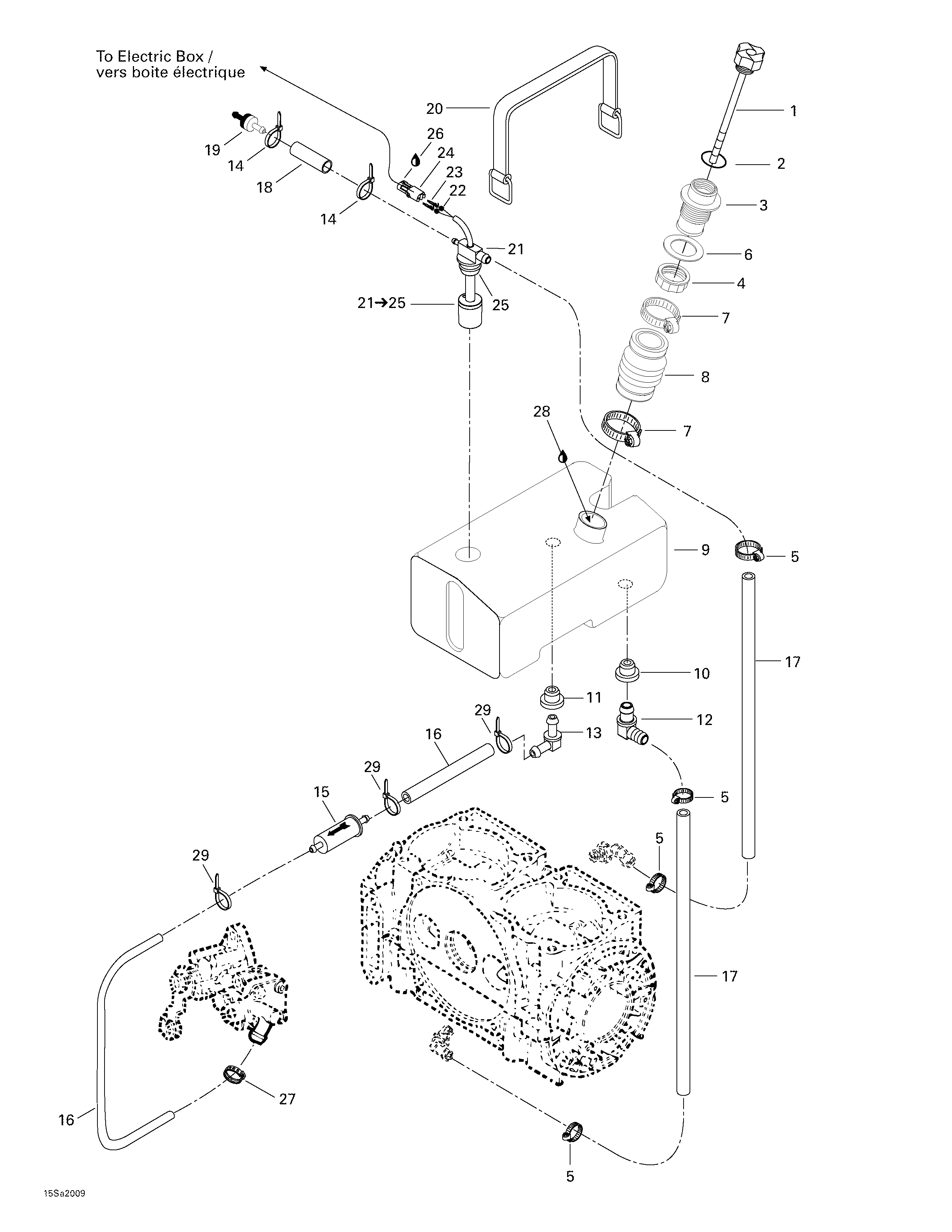

02- Oil Injection System для BRP GTS, 5639 - 2000

  • №
    Артикул
    Название
  • 1
    275000081 Oil Cap Ass'y. Includes 1 - 2.
    Oil Cap Ass'y. Includes 1 - 2.
  • 2
    293250025 O-Ring 32 x 5
    O-Ring 32 x 5
  • 3
    275000212 Filler Neck
    Filler Neck
  • 4
    211100013 Nut Neck Filler Oil
    Nut Neck Filler Oil
  • 5
    293650038 Tridon Clamp
    Tridon Clamp
  • 6
    293250016 Gasket
    Gasket
  • 7
    293650035 Tridon Clamp
    Tridon Clamp
  • 8
    275000070 Filler Neck Hose
    Filler Neck Hose
  • 9
    275000123 Oil Tank
    Oil Tank
  • 10
    570273900 Grommet
    Grommet
  • 11
    570135100 Grommet
    Grommet
  • 12
    293710002 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 13
    414650200 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 14
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 15
    275000051 Oil Filter
    Oil Filter
  • 16
    275000007 Hose 8 mm (Meter)
    Hose 8 mm (Meter)
  • 17
    275000008 Hose 12 mm (Meter)
    Hose 12 mm (Meter)
  • 18
    275500139 Hose 6 mm (Meter)
    Hose 6 mm (Meter)
  • 19
    275500398 Check Valve
    Check Valve
  • 20
    293850022 Strap
    Strap
  • 21
    278001289 Oil Level Sensor Ass'y. Includes 21 - 25.
    Oil Level Sensor Ass'y. Includes 21 - 25.
  • 22
    278000218 Seal-Wire (16-18 Gauge) (Green)
    Seal-Wire (16-18 Gauge) (Green)
  • 23
    278000222 Male Terminal (18 Gauge)
    Male Terminal (18 Gauge)
  • 24
    278000217 Female Housing (2 Circuits)
    Female Housing (2 Circuits)
  • 25
    293720008 Grommet
    Grommet
  • 26
    293550004 Grease Dielectric, 150 g
    Grease Dielectric, 150 g
  • 27
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 28
    413802900 Injection Oil (12 x 1 Liter)
    Injection Oil (12 x 1 Liter)
  • 413803000 Injection Oil (3 x 4 Liters)
    Injection Oil (3 x 4 Liters)
  • 413803200 Injection Oil (205 Liters)
    Injection Oil (205 Liters)
  • 413710500 Synthetic Injection Oil (12 x 1 Liter)
    Synthetic Injection Oil (12 x 1 Liter)
  • 413711000 Synthetic Injection Oil (3 x 4 Liters)
    Synthetic Injection Oil (3 x 4 Liters)
  • 413710700 Synthetic Injection Oil (205 Liters)
    Synthetic Injection Oil (205 Liters)
  • 293600032 Formula XP-S DI Oil (12 x 1 Liter)
    Formula XP-S DI Oil (12 x 1 Liter)
  • 293600033 Formula XP-S DI Oil (3 x 4 Liters)
    Formula XP-S DI Oil (3 x 4 Liters)
  • 293600034 Formula XP-S DI Oil (205 Liters)
    Formula XP-S DI Oil (205 Liters)
  • 29
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
