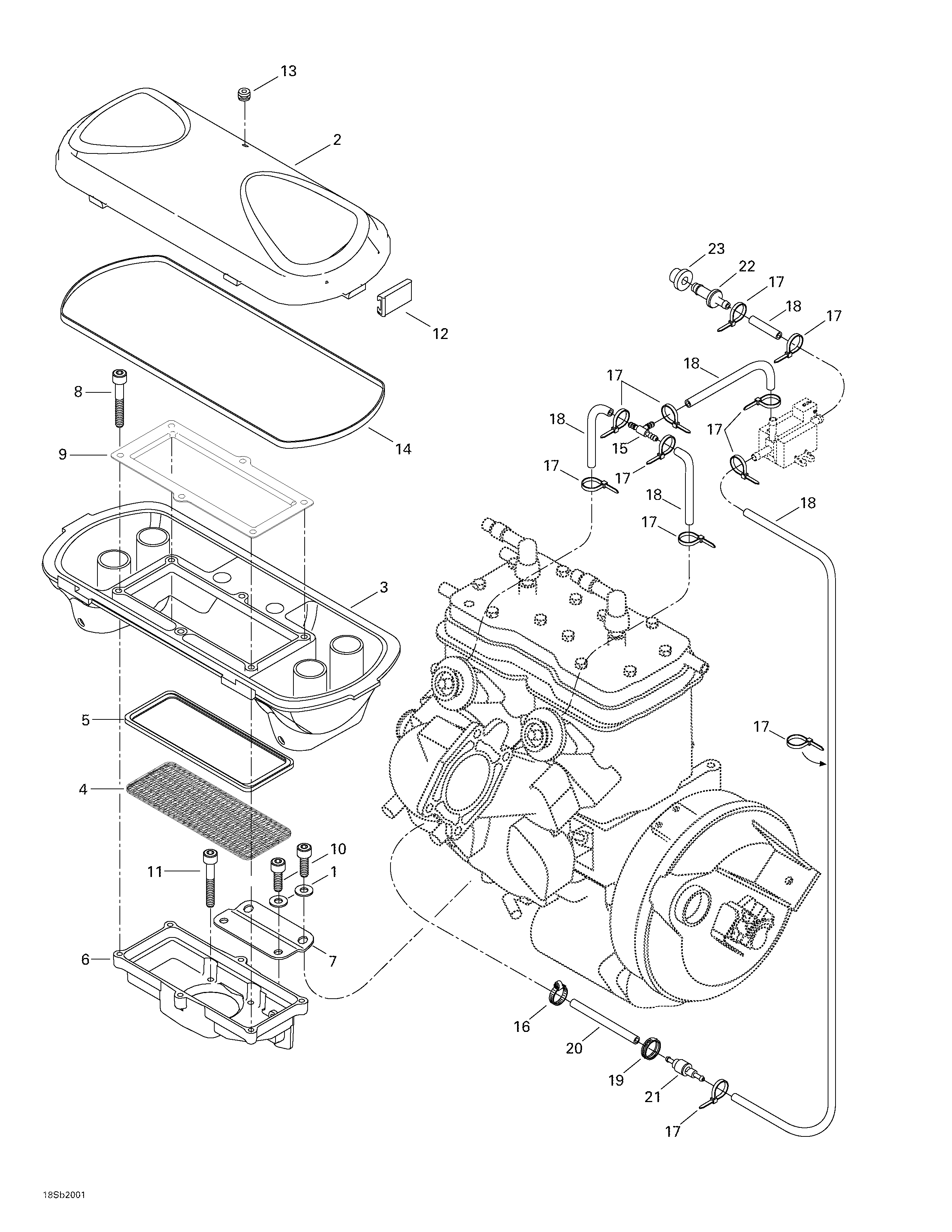

02- Air Intake System для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1234061600 Washer 6 mmWasher 6 mm
-
2273000115 Air Silencer CoverAir Silencer Cover
-
3273000103 Air Silencer BaseAir Silencer Base
-
4273000118 Flame ArresterFlame Arrester
-
5273000020 IsolatorIsolator
-
6273000086 Arrester HousingArrester Housing
-
7270000248 SupportSupport
-
8205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
9273000059 HolderHolder
-
10205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
11205569060 Socket Head Screw M6 x 90 (Scotch Grip)Socket Head Screw M6 x 90 (Scotch Grip)
-
12273000006 Retainer ClipRetainer Clip
-
13293830005 Rubber PlugRubber Plug
-
14293250023 GasketGasket
-
15293710068 ''T'' Fitting''T'' Fitting
-
16293650038 Tridon ClampTridon Clamp
-
17293750001 Tie Rap 94 mmTie Rap 94 mm
-
18270000374 Hose 4.3 mmHose 4.3 mm
-
19293650042 Oetiker ClampOetiker Clamp
-
20275500139 Hose 6 mmHose 6 mm
-
21275500479 Check ValveCheck Valve
-
22293700031 FittingFitting
-
23293720029 GrommetGrommet
