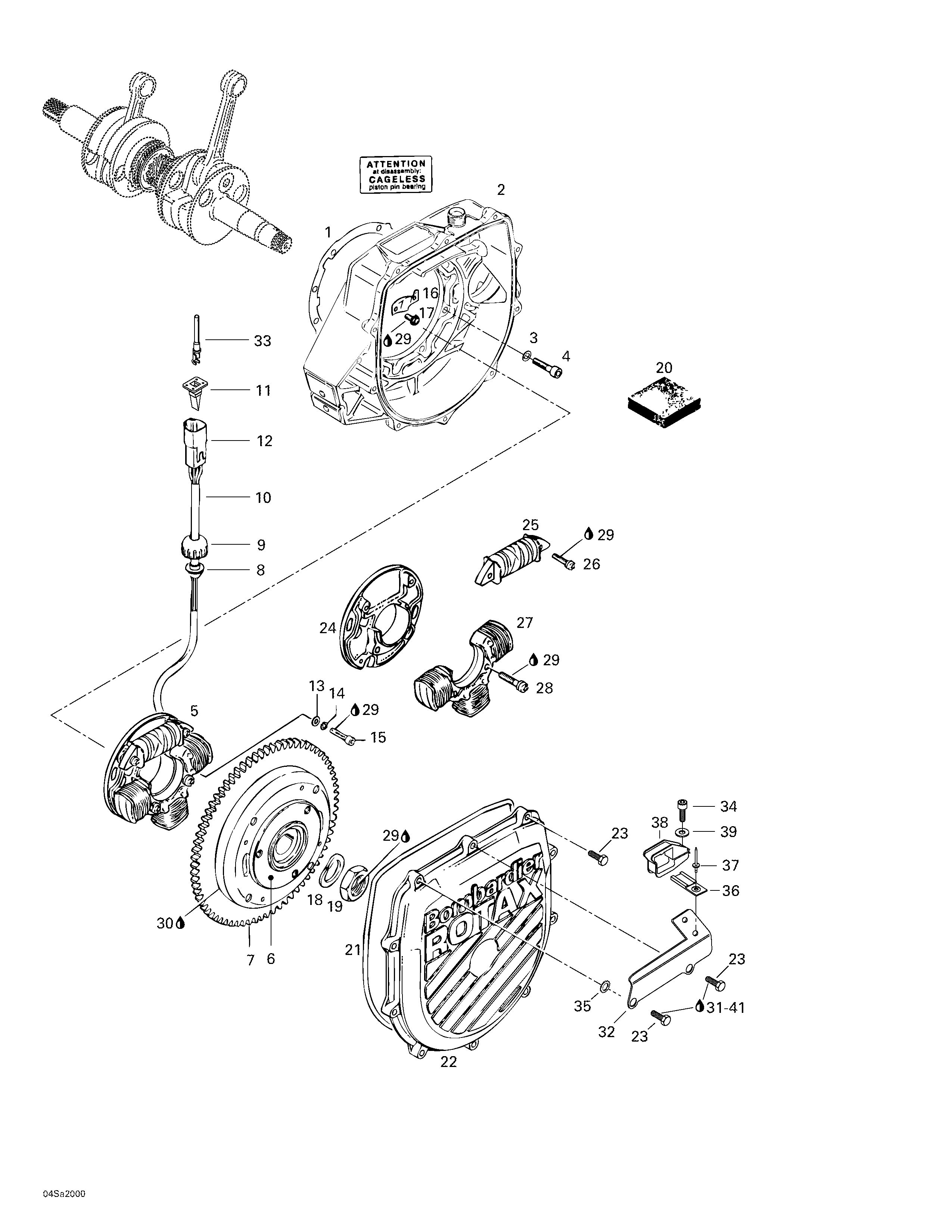

03- Magneto для BRP GS, 5644/5827 - 2000

  • №
    Артикул
    Название
  • 1
    290850605 Gasket
    Gasket
  • 2
    290810852 Ignition Housing (Silver)
    Ignition Housing (Silver)
  • 3
    420945751 Lock Washer 6 mm
    Lock Washer 6 mm
  • 4
    205062544 Allen Screw M6 x 25
    Allen Screw M6 x 25
  • 5
    290886725 Armature Plate Ass'y
    Armature Plate Ass'y
  • 6
    290995119 Magneto Flywheel Ass'y. Includes 6 - 7.
    Magneto Flywheel Ass'y. Includes 6 - 7.
  • 6
    290995118 Magneto Flywheel
    Magneto Flywheel
  • 7
    290834060 Starter Gear 77 Teeth
    Starter Gear 77 Teeth
  • 8
    293720034 Grommet
    Grommet
  • 9
    278000100 Cap
    Cap
  • 10
    290260931 Tubing Isolation (75 mm)
    Tubing Isolation (75 mm)
  • 11
    278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 12
    278000635 Housing Tab Female 4 Circuits
    Housing Tab Female 4 Circuits
  • 13
    420827800 Washer
    Washer
  • 14
    420945750 Lock Washer 5 mm
    Lock Washer 5 mm
  • 15
    420840515 Allen Screw M5 x 18
    Allen Screw M5 x 18
  • 16
    290853080 Retainer Plate
    Retainer Plate
  • 17
    207150844 Hex. Screw M5 x 8
    Hex. Screw M5 x 8
  • 18
    420945759 Lock Washer 22 mm
    Lock Washer 22 mm
  • 19
    420842230 Hex. Nut M22
    Hex. Nut M22
  • 20
    290860680 Protection Mat
    Protection Mat
  • 21
    290831555 O-Ring
    O-Ring
  • 22
    290810147 Ignition Cover
    Ignition Cover
  • 23
    290841543 Self Tapping Screw M6 x 25
    Self Tapping Screw M6 x 25
  • 24
    290886725 Armature Plate
    Armature Plate
  • 25
    410915200 Generating Coil
    Generating Coil
  • 26
    420940810 Combined Screw M5 x 22
    Combined Screw M5 x 22
  • 27
    410916200 Lighting Coil
    Lighting Coil
  • 28
    410913900 Screw With Washer
    Screw With Washer
  • 29
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 30
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 31
    293800023 Loctite 767, Antiseize Lubricant, 454 g
    Loctite 767, Antiseize Lubricant, 454 g
  • 32
    278001064 Ground Plate
    Ground Plate
  • 33
    278000631 Terminal Male
    Terminal Male
  • 34
    205061660 Allen Screw M6 x 16
    Allen Screw M6 x 16
  • 35
    234461608 Washer Star 6 mm
    Washer Star 6 mm
  • 36
    270000141 Clip
    Clip
  • 37
    204000081 Pop Rivet 3/16
    Pop Rivet 3/16
  • 38
    270000158 Adaptor
    Adaptor
  • 39
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 40
    290886317 Engine Gasket Set (Not Shown)
    Engine Gasket Set (Not Shown)
  • 41
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
