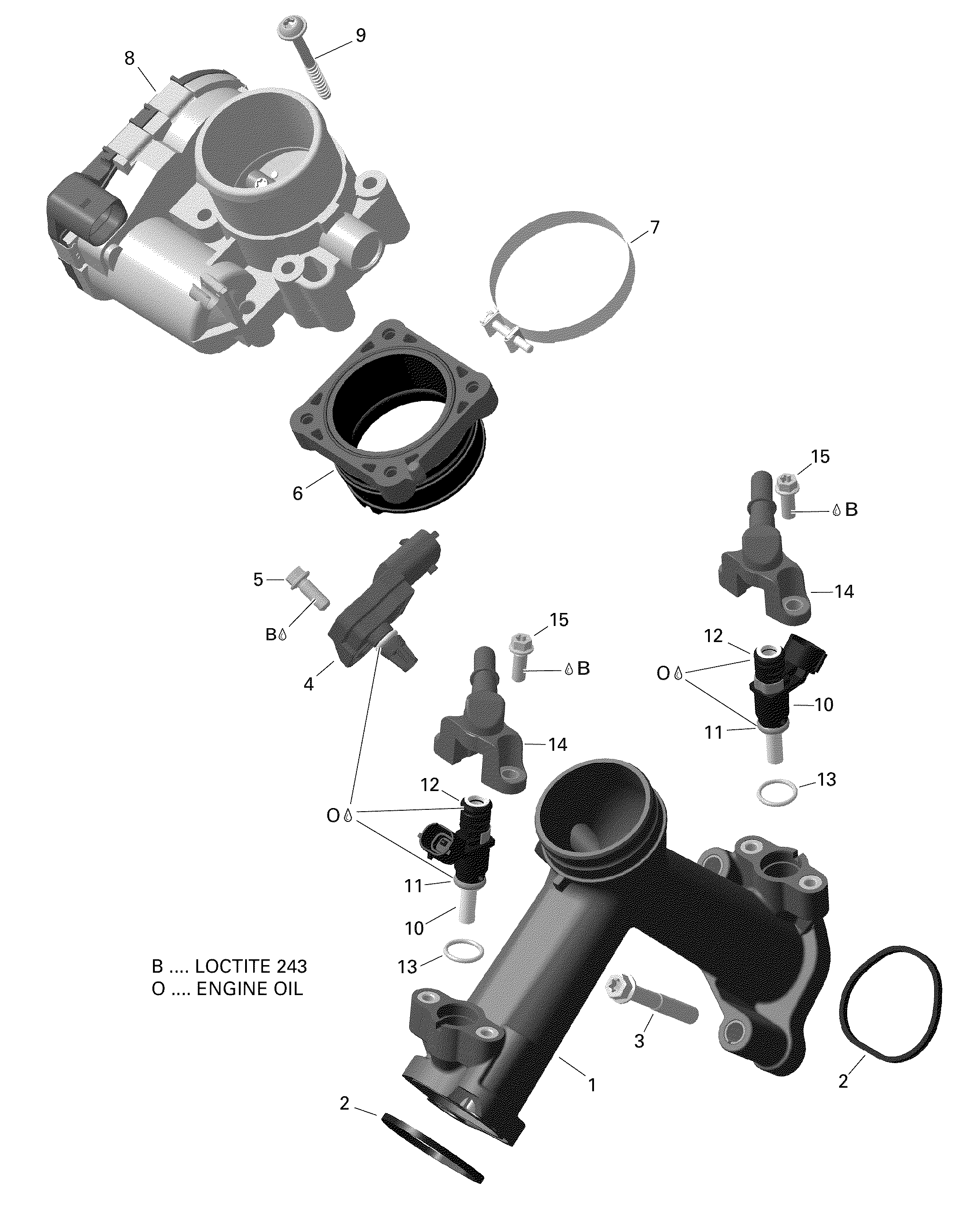

02- Air Intake Manifold And Throttle Body для BRP 003 - Outlander T MAX 570 EFI - PRO+ - T Regulation - 2020
-
№АртикулНазвание
-
1420667581 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420267620 Intake SocketIntake Socket
-
7420251480 ClampClamp
-
8420893147 Throttle Body Ass'yThrottle Body Ass'y
-
9420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
10>13420874840 Injection Valve Ass'yInjection Valve Ass'y
-
11420431890 O-RingO-Ring
-
12420631220 O-RingO-Ring
-
13420631295 O-RingO-Ring
-
14420874901 Fuel RailFuel Rail
-
15420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
