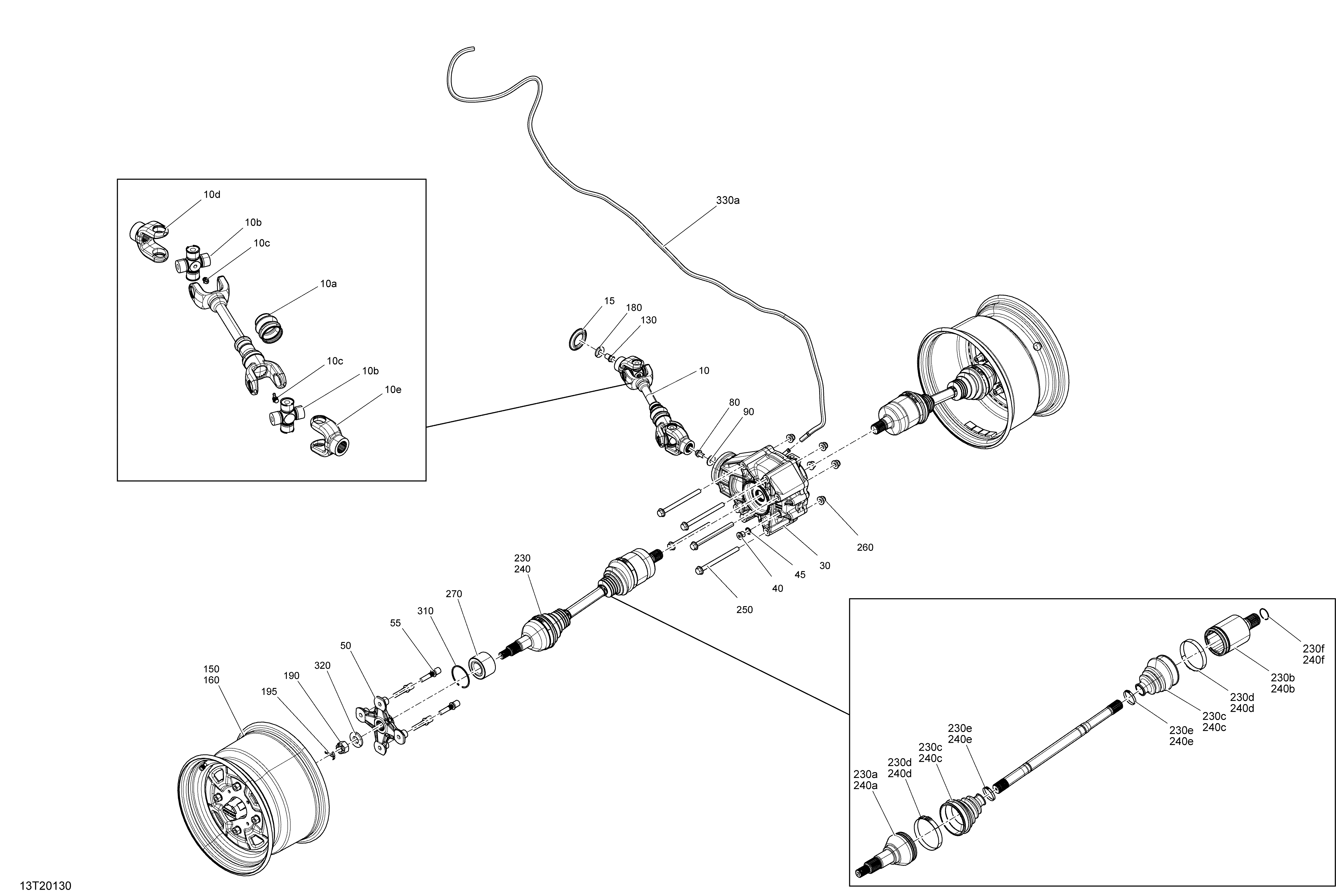

08- Rear Drive - Common Parts для BRP 005 - Outlander T MAX 570 EFI - DPS_XT - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    703501017 Shaft Ass'y Kit
    Shaft Ass'y Kit
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    703500846 Universal Joint Ass'y. Includes to
    Universal Joint Ass'y. Includes to
  • 10c
    715900295 Grease Fitting
    Grease Fitting
  • 10d
    715900499 Joint
    Joint
  • 10e
    715900438 Yoke
    Yoke
  • 15
    705501123 Protector
    Protector
  • 30
    705502546 Final Drive Unit. Includes 30 to 30m
    Final Drive Unit. Includes 30 to 30m
  • 40
    705500504 Fill Level Plug
    Fill Level Plug
  • 45
    705500506 Copper Washer
    Copper Washer
  • 50
    705501716 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 55
    250300642 Wheel Stud
    Wheel Stud
  • 80
    250001044 Screw-Hex.Flange M10 X 16 S.GRIP
    Screw-Hex.Flange M10 X 16 S.GRIP
  • 90
    250200014 Flat Washer M10
    Flat Washer M10
  • 130
    250001039 Hex Flanged Screw M12 X 16
    Hex Flanged Screw M12 X 16
  • 180
    250200005 Conical Spring Washer M12
    Conical Spring Washer M12
  • 190
    232291413 Hex. Flanged Castellated Nut M18
    Hex. Flanged Castellated Nut M18
  • 195
    250400071 Cotter Pin
    Cotter Pin
  • 230
    705502577 RH Homocinetic Joint
    RH Homocinetic Joint
  • 230
    705502577 RH Homocinetic Joint
    RH Homocinetic Joint
  • 230a
    705501776 CV Joint
    CV Joint
  • 230b
    715900604 Plunging Joint
    Plunging Joint
  • 230d
    705501864 Boot Kit. Includes to
    Boot Kit. Includes to
  • 230e
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230f
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 230c
    705501781 Circlip
    Circlip
  • 240
    705501485 LH Homocinetic Joint
    LH Homocinetic Joint
  • 240a
    705501776 CV Joint
    CV Joint
  • 240b
    705501780 Plunging Joint
    Plunging Joint
  • 240c
    705501864 Boot Kit. Includes to
    Boot Kit. Includes to
  • 240d
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 240e
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 240f
    705501781 Circlip
    Circlip
  • 250
    250001041 Hex. Flanged Screw M10 X 135
    Hex. Flanged Screw M10 X 135
  • 260
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 270
    293350118 Cone Bearing
    Cone Bearing
  • 310
    293370019 Circlip
    Circlip
  • 320
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 330a
    293830193 Polyurethane Hose
    Polyurethane Hose
