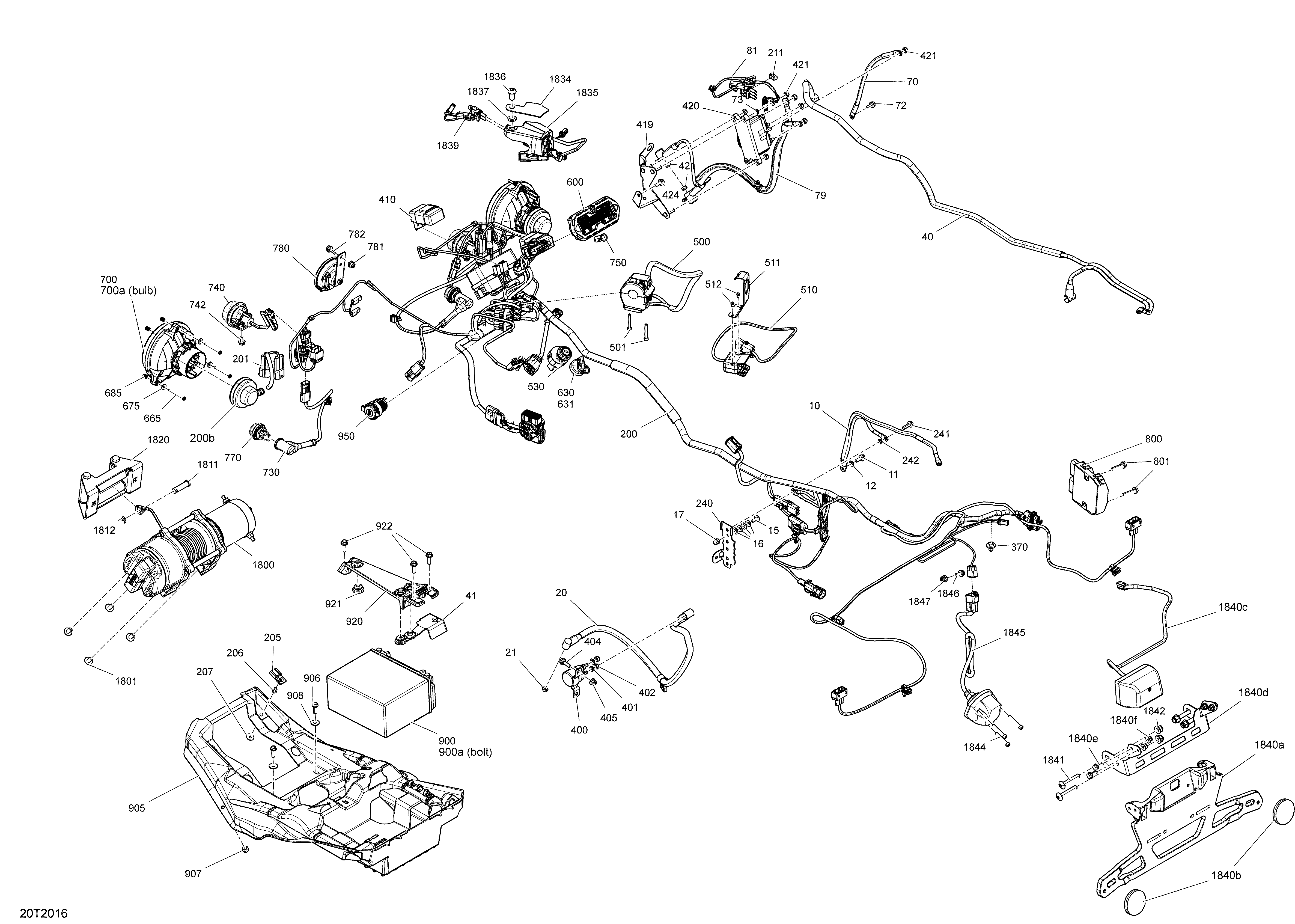

10- Electrical System для BRP 003 - Outlander T 570 EFI - PRO+ - T Regulation - 2020
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'yConnector Ass'y
-
41710006729 Cap Battery CableCap Battery Cable
-
70710005163 Negative CableNegative Cable
-
72210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
73234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
79710005164 Winch CableWinch Cable
-
81710005246 Winch CableWinch Cable
-
200710006170 No ABS CableNo ABS Cable
-
200b710004020 Headlamp Protector CapHeadlamp Protector Cap
-
201710005780 Light CableLight Cable
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 ClipClip
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
370293730040 Mount DartMount Dart
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
410710003239 Flasher UnitFlasher Unit
-
419710004935 Module SupportModule Support
-
420710001000 Winch SolenoidWinch Solenoid
-
421232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
424207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
500710006211 LH Multi Fonction ControlLH Multi Fonction Control
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
510710005241 Winch SwitchWinch Switch
-
511710002631 Winch Interrupter SupportWinch Interrupter Support
-
512250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
530710003847 Ignition SwitchIgnition Switch
-
600710006216 SpeedometerSpeedometer
-
630710000817 Black, Electronic KeyBlack, Electronic Key
-
631710002183 Grey, Electronic KeyGrey, Electronic Key
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low BeamLow Beam
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
730710005676 Position Light HarnessPosition Light Harness
-
740710002964 FlasherFlasher
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
750710003909 Pilot LampPilot Lamp
-
770710001726 Day LightDay Light
-
780710004791 HornHorn
-
781233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
782207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800710005569 Voltage Regulator. DPSVoltage Regulator. DPS
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710006561 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705014429 Stopper RubberStopper Rubber
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1800705008546 WinchWinch
-
1801250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
1811250400021 Clevis PinClevis Pin
-
1812250400022 Cotter PinCotter Pin
-
1820715000011 Winch RollerWinch Roller
-
1834715004008 Top PlateTop Plate
-
1835710004990 Multifonction Housing AssemblyMultifonction Housing Assembly
-
1836710005908 Screw M10 X1.25 X 20 BHCS S.GripScrew M10 X1.25 X 20 BHCS S.Grip
-
1837503192496 WasherWasher
-
1839710004567 CableCable
-
1840a708300434 Plate SupportPlate Support
-
1840b705011221 Red ReflectorRed Reflector
-
1840c710005563 License Plate LightLicense Plate Light
-
1840e207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1840f233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1841250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
1842233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1844205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
1845710005846 Trailer HarnessTrailer Harness
-
1846207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1847233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
