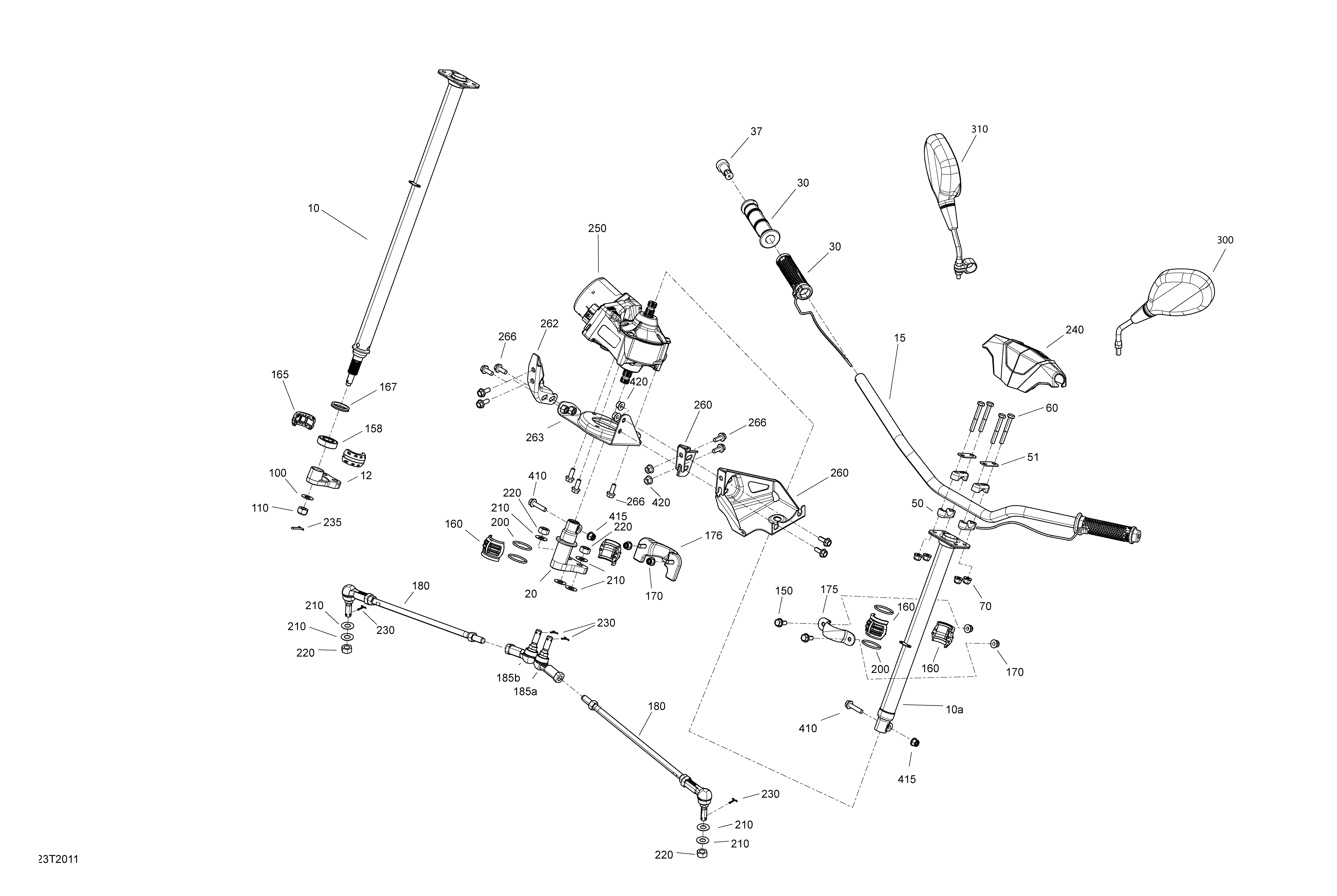

07- Steering для BRP 001 - Outlander T 450 EFI - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    709401545 Black, Upper Main Tube. Package STD
    Black, Upper Main Tube. Package STD
  • 10a
    709401750 Black, Upper Main Tube. Package DPS
    Black, Upper Main Tube. Package DPS
  • 12
    709401542 Pitman Arm. Package STD
    Pitman Arm. Package STD
  • 15
    709401240 Black, Handle Bar
    Black, Handle Bar
  • 20
    709401748 Pitman Arm. Packages PRO, DPS & PRO+
    Pitman Arm. Packages PRO, DPS & PRO+
  • 30
    709400493 Handle Grip. Packages PRO, DPS & STD
    Handle Grip. Packages PRO, DPS & STD
  • 30
    710005038 Heated Hand Grip With Connector. Package PRO+
    Heated Hand Grip With Connector. Package PRO+
  • 37
    709400449 End Piece
    End Piece
  • 50
    709401799 Steering Support
    Steering Support
  • 51
    709400509 Stiffner
    Stiffner
  • 60
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 100
    250200086 Flat Washer. Package STD
    Flat Washer. Package STD
  • 110
    250000047 Hex. Flanged Elastic Nut M12. Package STD
    Hex. Flanged Elastic Nut M12. Package STD
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682534 Hex. Flanged Screw M8 X 25. Not Shown
    Hex. Flanged Screw M8 X 25. Not Shown
  • 158
    503190396 Ball Bearing. Package STD
    Ball Bearing. Package STD
  • 160
    709400783 Spherical Half Bushing. Packages DPS & STD
    Spherical Half Bushing. Packages DPS & STD
  • 165
    709401370 Spherical Half Bushing. Package STD
    Spherical Half Bushing. Package STD
  • 167
    293250177 Seal. Package STD
    Seal. Package STD
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709401428 Column Attachment
    Column Attachment
  • 180
    703501038 Rod-Tie Ass`y. Includes 180 to 180a
    Rod-Tie Ass`y. Includes 180 to 180a
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 200
    293300068 O-Ring. Packages DPS & STD
    O-Ring. Packages DPS & STD
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 235
    250400034 Cotter Pin
    Cotter Pin
  • 240
    709400939 Cover
    Cover
  • 250
    709402230 Power Steering. Package DPS
    Power Steering. Package DPS
  • 260
    709402184 LH Power Steering Bracket
    LH Power Steering Bracket
  • 260
    709402192 Power Steering Module Bracket. Package DPS
    Power Steering Module Bracket. Package DPS
  • 262
    709402185 RH Bracket. Package DPS
    RH Bracket. Package DPS
  • 263
    709401743 Power Steering Support. Package DPS
    Power Steering Support. Package DPS
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package DPS
    Hex. Flanged Screw M8 X 20, Scotch Grip. Package DPS
  • 300
    709400406 LH Mirror
    LH Mirror
  • 310
    709400407 RH Mirror
    RH Mirror
  • 410
    250000986 Hex. Flanged Screw M8 X 35. Package DPS
    Hex. Flanged Screw M8 X 35. Package DPS
  • 415
    233281416 Hex. Elastic Flanged Nut M8. Package DPS
    Hex. Elastic Flanged Nut M8. Package DPS
  • 420
    233081416 Hex. Flanged Nut M8. Package DPS
    Hex. Flanged Nut M8. Package DPS
