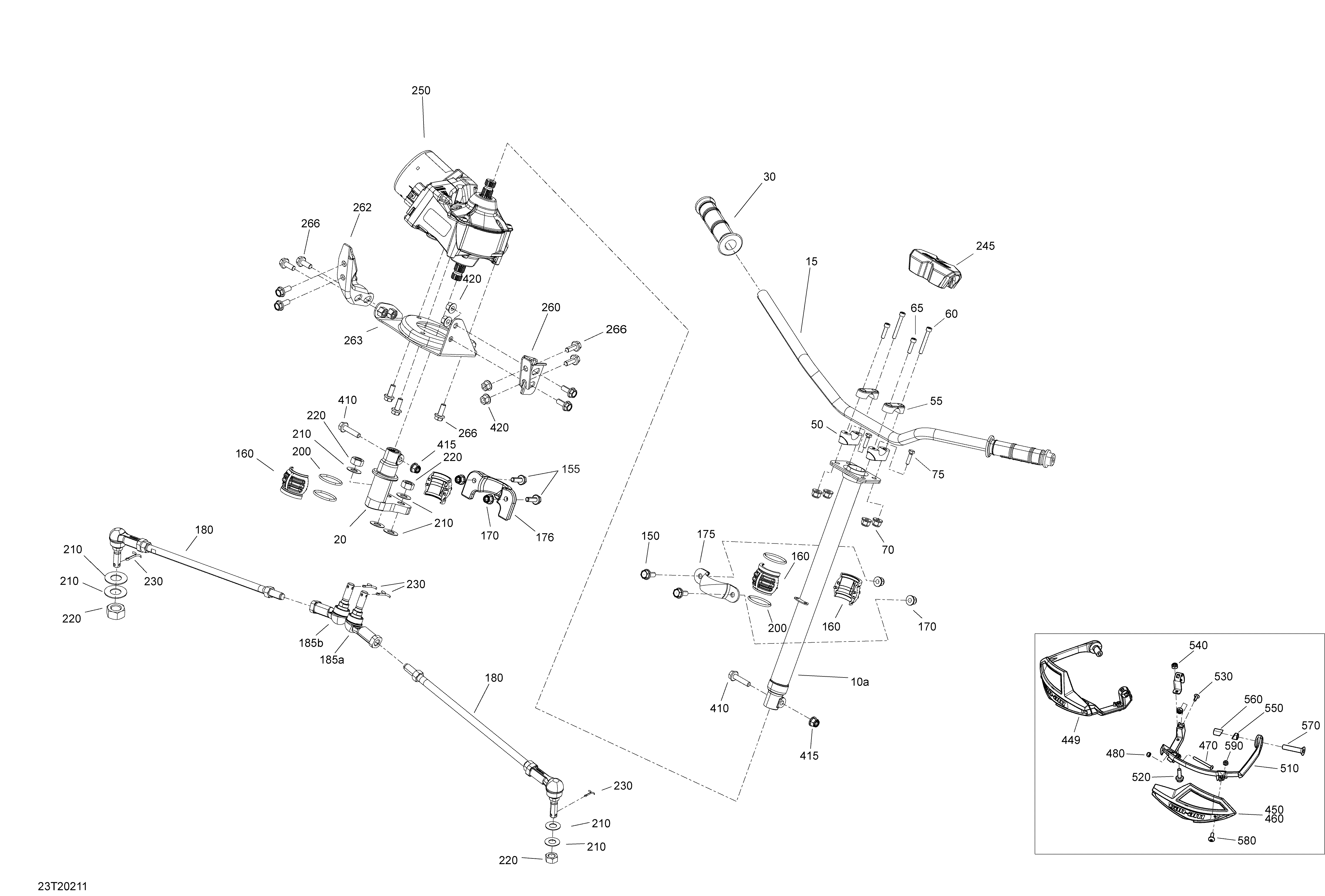

07- Steering для BRP 004 - Renegade 1000R EFI - XXC - International - Non-European Communities - 2020

  • №
    Артикул
    Название
  • 10a
    709401750 Black, Upper Main Tube
    Black, Upper Main Tube
  • 15
    709401643 Red, Handle Bar. Includes 15 to 15a
    Red, Handle Bar. Includes 15 to 15a
  • 15
    709400513 Aluminum Handle Bar
    Aluminum Handle Bar
  • 20
    709401748 Pitman Arm
    Pitman Arm
  • 30
    709400493 Handle Grip
    Handle Grip
  • 50
    709400497 Steering Support
    Steering Support
  • 55
    709400496 Support
    Support
  • 60
    205086060 Socket Head Screw M8 X 60
    Socket Head Screw M8 X 60
  • 65
    205083060 Socket Screw M8 X 30
    Socket Screw M8 X 30
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 75
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 160
    709400783 Spherical Half Bushing
    Spherical Half Bushing
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709401428 Column Attachment
    Column Attachment
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180a
    Tie-Rod Ass`y. Includes 180 to 180a
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180b
    Tie-Rod Ass`y. Includes 180 to 180b
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 200
    293300068 O-Ring
    O-Ring
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 245
    709402328 Steering Cover
    Steering Cover
  • 250
    709402230 Power Steering
    Power Steering
  • 260
    709402184 LH Power Steering Bracket
    LH Power Steering Bracket
  • 262
    709402185 RH Bracket
    RH Bracket
  • 263
    709401743 Power Steering Support
    Power Steering Support
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 410
    250000986 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 415
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 420
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 449
    715003811 Deflector Kit. Includes 450 to 450r
    Deflector Kit. Includes 450 to 450r
  • 450a
    709401667 Red, RH Deflector
    Red, RH Deflector
  • 450b
    709401668 Red, LH Deflector
    Red, LH Deflector
  • 450c
    205444056 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 450d
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 450e
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 450f
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 450g
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 450h
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 450j
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 450k
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 450m
    709400161 Bracket Small
    Bracket Small
  • 450n
    709400162 Bracket Large
    Bracket Large
  • 450p
    205384034 Socket Head Screw
    Socket Head Screw
  • 450q
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 450r
    232551600 Hex. Elastic Nut M5
    Hex. Elastic Nut M5
