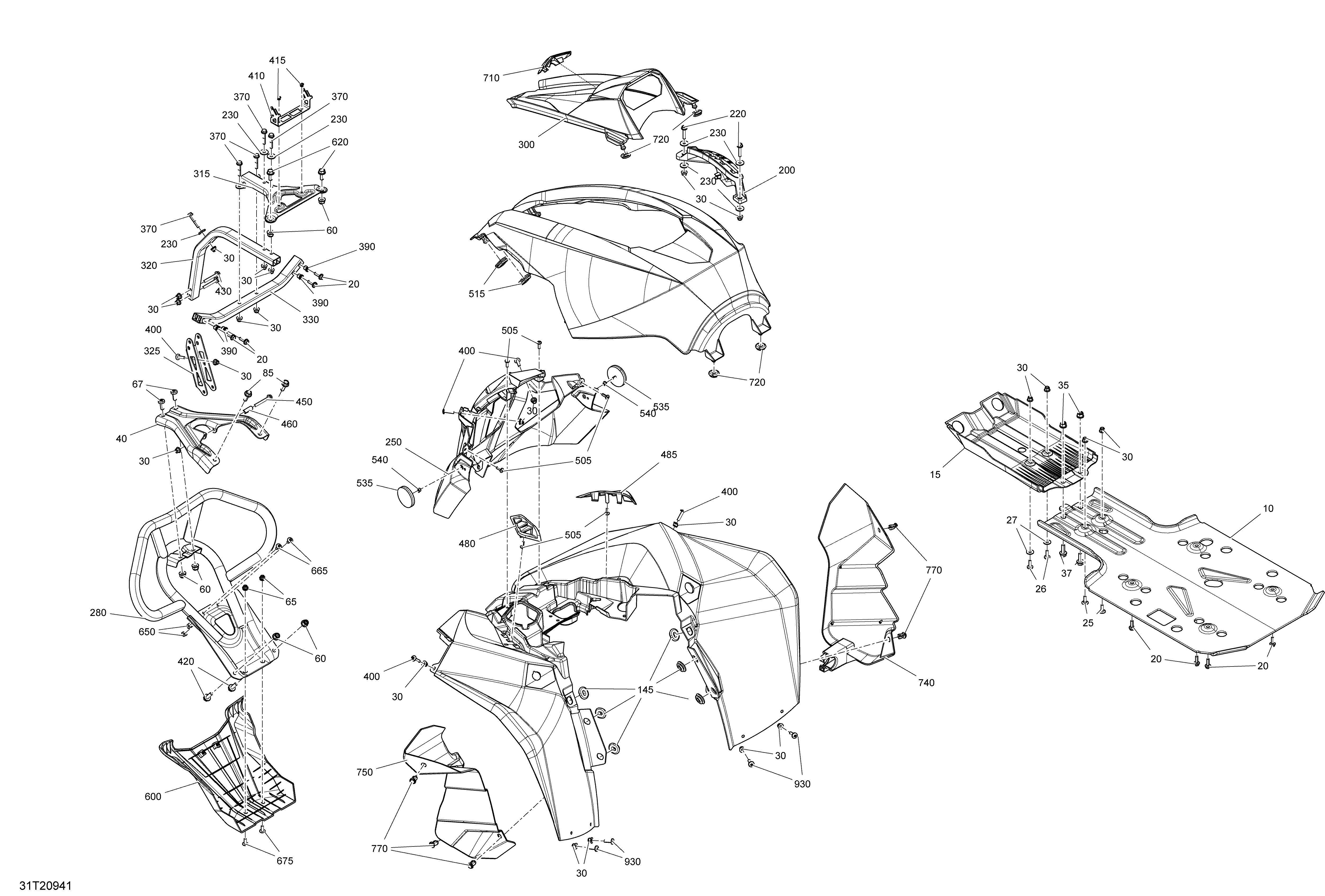

09- Body - Front Section - Carbon Black для BRP 003 - Renegade 1000R EFI - XXC - International - European Communities - 2020

  • №
    Артикул
    Название
  • 10
    705204031 Central Skid Plate
    Central Skid Plate
  • 15
    705007820 Skid Plate
    Skid Plate
  • 20
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 25
    207762044 Carriage Bolt M6 X 20
    Carriage Bolt M6 X 20
  • 26
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 27
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 35
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 37
    207682534 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 40
    705011386 Bumper Support. Includes 40 to 40a
    Bumper Support. Includes 40 to 40a
  • 60
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 65
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
  • 67
    250000740 Torx Screw M8 X 20, Scotch Grip
    Torx Screw M8 X 20, Scotch Grip
  • 85
    207582544 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 145
    705000321 Oval Washer
    Oval Washer
  • 200
    705004416 Lever Indicator
    Lever Indicator
  • 220
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 230
    224061201 Flat Washer
    Flat Washer
  • 250
    705003948 Front Facia
    Front Facia
  • 300
    705003556 Dashboard
    Dashboard
  • 315
    705003599 Bracket
    Bracket
  • 320
    705003511 Front Tube
    Front Tube
  • 325
    705011566 Support. Includes 325 to 325a
    Support. Includes 325 to 325a
  • 330
    705003510 Body Tube
    Body Tube
  • 370
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 390
    293450275 Insert
    Insert
  • 400
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 410
    710002482 Fuse Holder
    Fuse Holder
  • 415
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 420
    207682534 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 430
    207664544 Flanged Hex. Screw M6 X 45
    Flanged Hex. Screw M6 X 45
  • 450
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 460
    705005809 Spacer
    Spacer
  • 480
    705008137 LH Grill
    LH Grill
  • 485
    705008138 RH Grill
    RH Grill
  • 505
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 515
    705003668 Oblong Grommet
    Oblong Grommet
  • 535
    705011222 Amber Reflector
    Amber Reflector
  • 540
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 600
    705004850 Front Bumper Plate
    Front Bumper Plate
  • 620
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 650
    232862412 Square Nut M6
    Square Nut M6
  • 665
    250000454 Torx Screw M6 X 12
    Torx Screw M6 X 12
  • 675
    250000755 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 710
    705002353 Cap
    Cap
  • 720
    705003264 Grommet
    Grommet
  • 740
    705010717 RH Inner Fender
    RH Inner Fender
  • 750
    705011891 LH Inner Fender
    LH Inner Fender
  • 770
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 930
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
