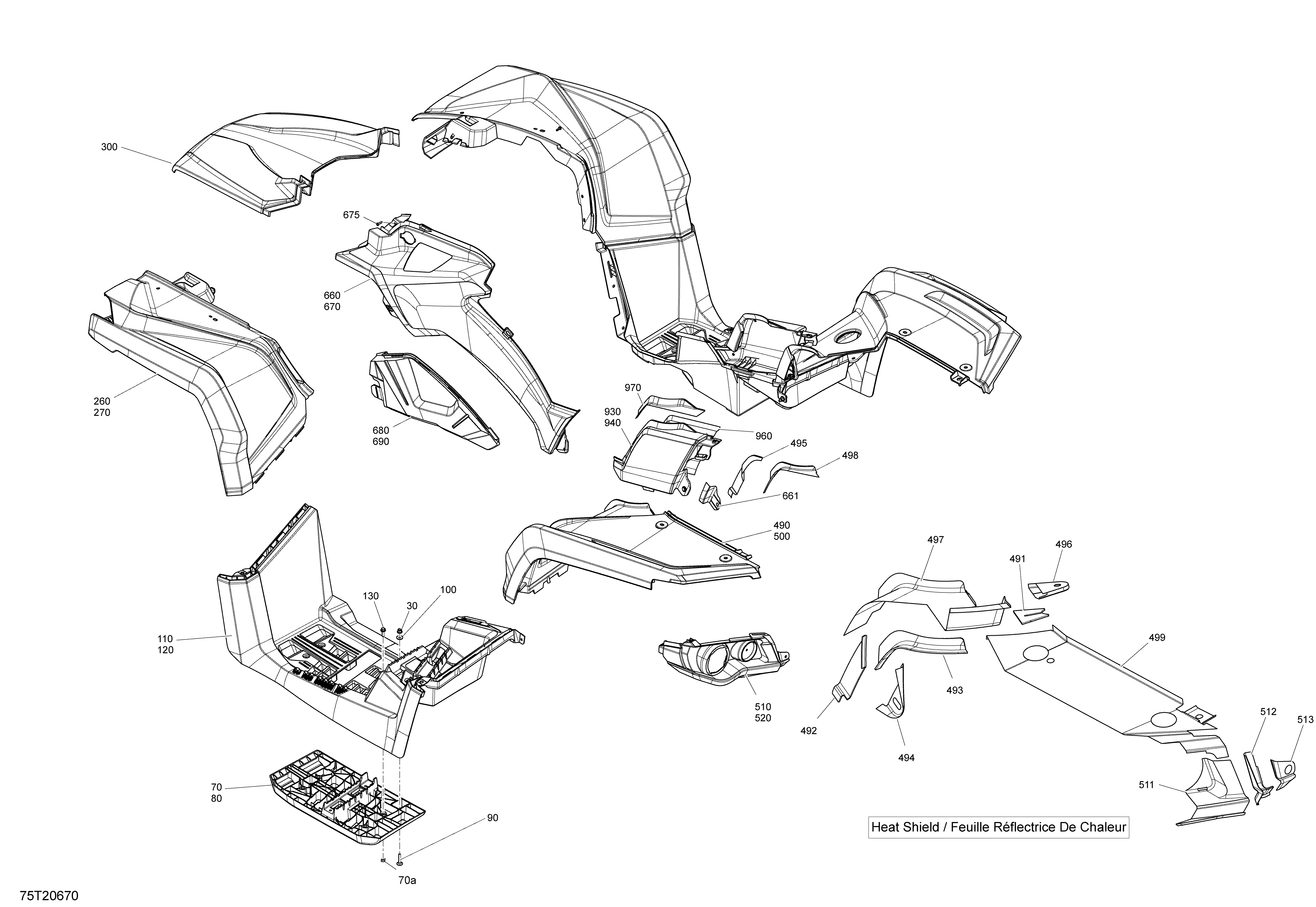

09- Body - Fenders And Lateral Panels - LTD - Boreal Green для BRP 013 - Outlander MAX 1000R EFI - XTP_LTD - International - Non-European Communities - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural FootboardRH Structural Footboard
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705003525 LH Footrest MaxLH Footrest Max
-
120705003521 RH Footrest MaxRH Footrest Max
-
130207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
260715006929 Boreal Green, LH Front Fender KitBoreal Green, LH Front Fender Kit
-
270715006945 Boreal Green, RH Front Fender KitBoreal Green, RH Front Fender Kit
-
300715005801 Capot Vert BorealCapot Vert Boreal
-
490715006960 Boreal Green, LH Rear Fender KitBoreal Green, LH Rear Fender Kit
-
491707002456 Heat ShieldHeat Shield
-
492707002457 Heat ShieldHeat Shield
-
493707002458 Heat ShieldHeat Shield
-
494707002459 Heat ShieldHeat Shield
-
495707002460 Heat ShieldHeat Shield
-
496707002461 Heat ShieldHeat Shield
-
497707002462 Heat ShieldHeat Shield
-
498707002583 Heat ShieldHeat Shield
-
499707002464 Heat ShieldHeat Shield
-
500715005792 Boreal Green RH Rear FenderBoreal Green RH Rear Fender
-
510705006643 LH Rear FaciaLH Rear Facia
-
511707002103 Heat ShieldHeat Shield
-
512707002107 Heat ShieldHeat Shield
-
513707002594 Heat ShieldHeat Shield
-
520705006650 RH Rear FaciaRH Rear Facia
-
660705013241 Boreal Green, LH PanelBoreal Green, LH Panel
-
661707002467 Heat ShieldHeat Shield
-
670705013242 Boreal Green, RH PanelBoreal Green, RH Panel
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
-
960705006870 Heat ShieldHeat Shield
-
970705006871 Heat ShieldHeat Shield
