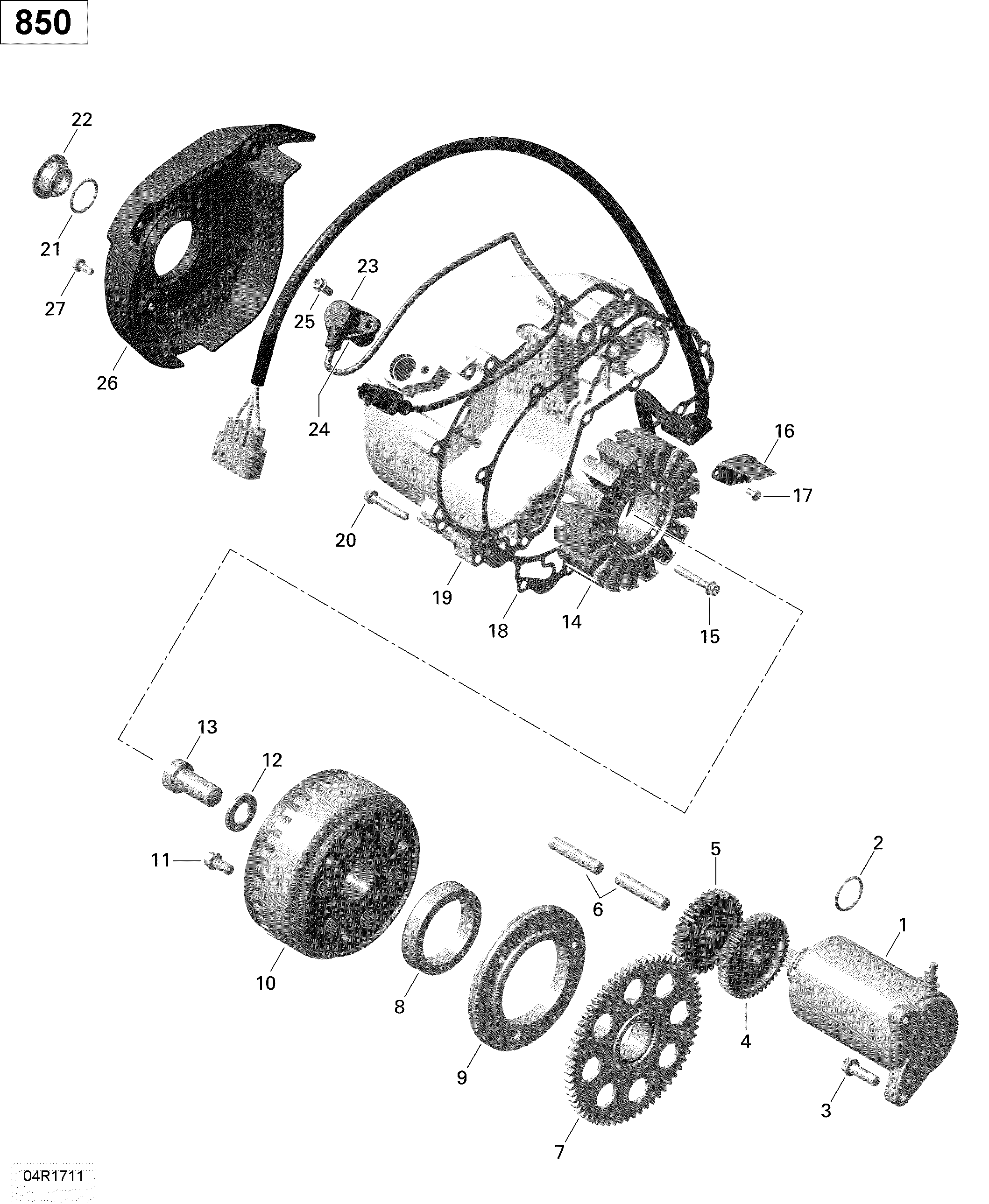

03- Magneto and Electric Starter - 850 EFI (Outlander MAX) для BRP 011 - Outlander MAX 850 EFI - International - 2020
-
№АртикулНазвание
-
1420684562 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420229302 Location PinLocation Pin
-
7420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
8420659112 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420296647 Flywheel. Package-DPS North AmericaFlywheel. Package-DPS North America
-
10420296647 Flywheel. Package-XT North AmericaFlywheel. Package-XT North America
-
10420685704 Flywheel. Package-XT InternationalFlywheel. Package-XT International
-
10420685704 Flywheel. Package-XTP North AmericaFlywheel. Package-XTP North America
-
10420685704 Flywheel. Package-XTP InternationalFlywheel. Package-XTP International
-
10420685704 Flywheel. Package-XTP EuropeFlywheel. Package-XTP Europe
-
11420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420685634 Stator PlateStator Plate
-
15420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420651200 GasketGasket
-
19420212222 CoverCover
-
20420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
21420430782 O-RingO-Ring
-
22420241630 Screw PlugScrew Plug
-
23420966570 Crankshaft Position Sensor Ass'y. Includes 23 to 24Crankshaft Position Sensor Ass'y. Includes 23 to 24
-
24420431580 O-RingO-Ring
-
25420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
26420201390 CoverCover
-
27420941936 Taptite Screw M5 x 12Taptite Screw M5 x 12
