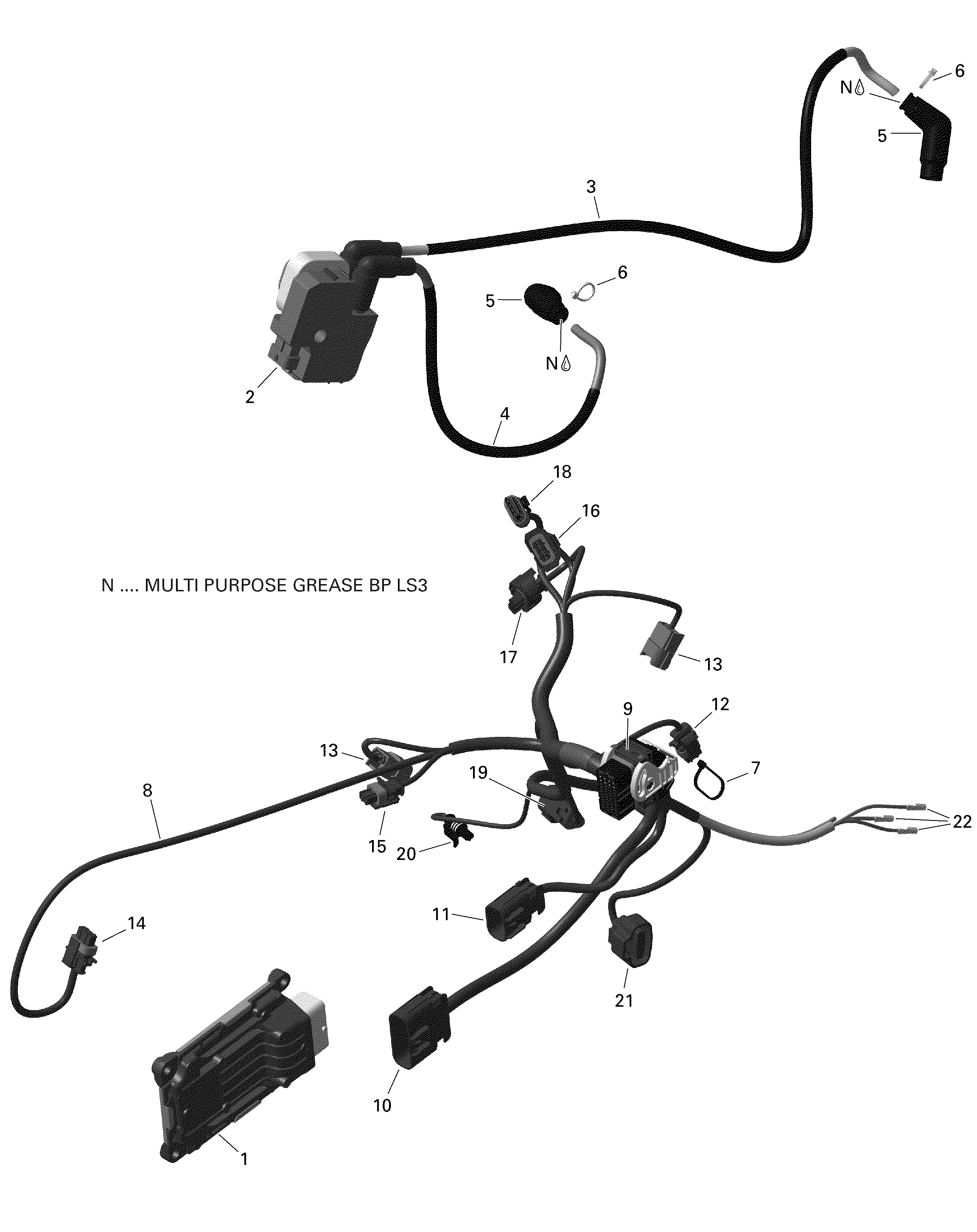

10- Engine Harness And Electronic Module - V1 для BRP 010 - Outlander MAX 650 EFI - XT - International - Non-European Communities - 2020
-
№АртикулНазвание
-
1420464131 ECU Module. OutlanderECU Module. Outlander
-
1420464129 ECU Module. Outlander MaxECU Module. Outlander Max
-
1420464132 ECU Module. Outlander XMRECU Module. Outlander XMR
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8>23420864696 Engine Wiring Harness. Except XMREngine Wiring Harness. Except XMR
-
8>23420264794 Engine Wiring Harness. XMREngine Wiring Harness. XMR
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
17515176410 Male ConnectorMale Connector
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22278001009 Female TerminalFemale Terminal
-
22278001007 Insulated SheathInsulated Sheath
