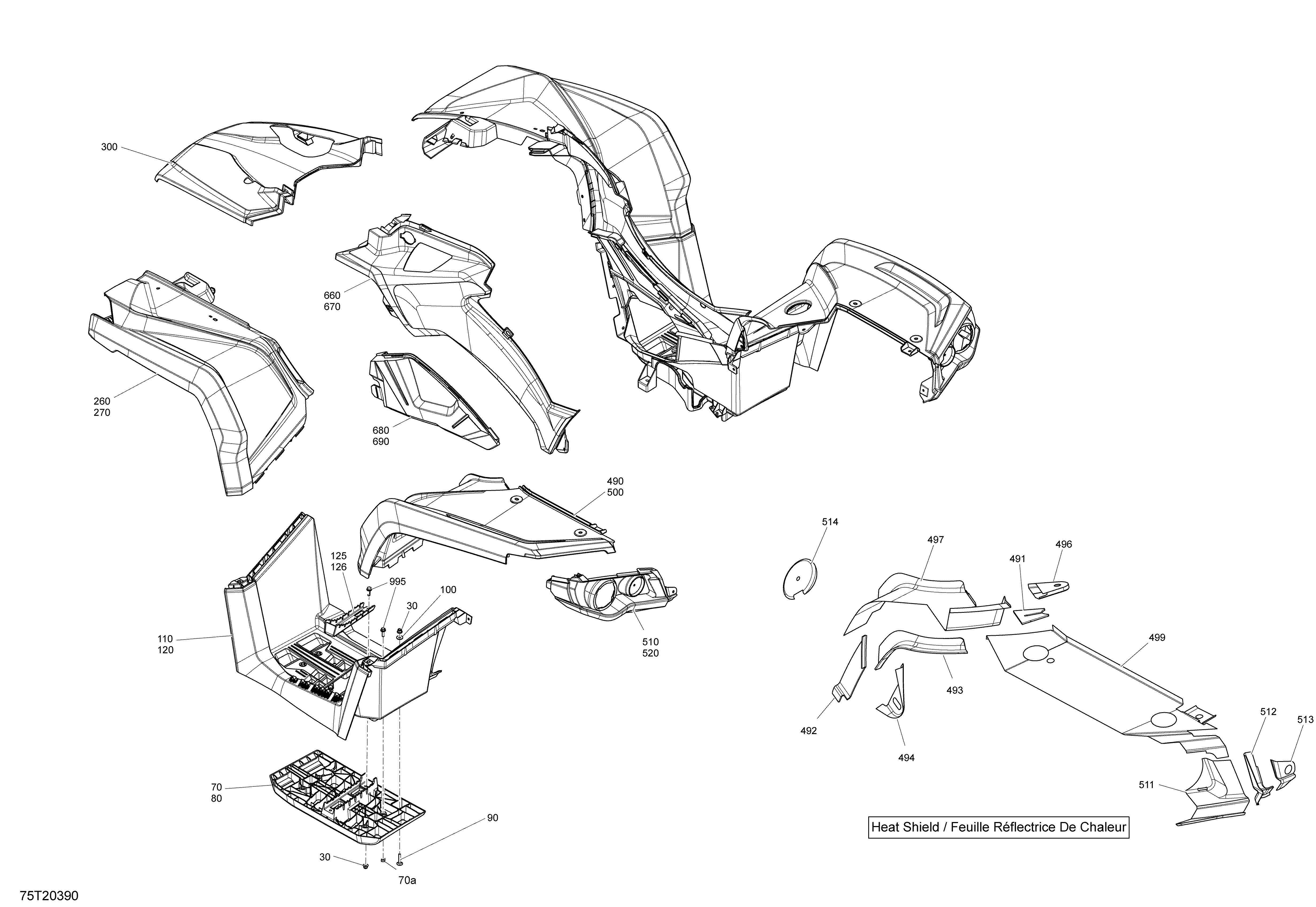

09- Body - Fenders And Side Panels - Model Timeless Black для BRP 007 - Outlander 1000R EFI - XMR - International - European Communities - 2020

  • №
    Артикул
    Название
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 70
    705011540 LH Structural Footboard. Includes 70 to 70a
    LH Structural Footboard. Includes 70 to 70a
  • 70a
    232862412 Square Nut M6
    Square Nut M6
  • 80
    705011542 RH Structural Footboard
    RH Structural Footboard
  • 90
    207763554 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 100
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 110
    705005978 LH Footboard
    LH Footboard
  • 120
    705005977 RH Footboard
    RH Footboard
  • 125
    705004352 LH Footrest
    LH Footrest
  • 126
    705005395 RH Footrest
    RH Footrest
  • 260
    715007052 Timeless Black, LH Front Fender Ass'y
    Timeless Black, LH Front Fender Ass'y
  • 270
    715007058 Timeless Black RH Front Fender
    Timeless Black RH Front Fender
  • 300
    715006984 Carbon Black Hood
    Carbon Black Hood
  • 490
    715007065 Timeless Black, LH Rear Fender Ass'y
    Timeless Black, LH Rear Fender Ass'y
  • 491
    707002456 Heat Shield
    Heat Shield
  • 492
    707002457 Heat Shield
    Heat Shield
  • 493
    707002458 Heat Shield
    Heat Shield
  • 494
    707002459 Heat Shield
    Heat Shield
  • 496
    707002461 Heat Shield
    Heat Shield
  • 497
    707002462 Heat Shield
    Heat Shield
  • 499
    707002464 Heat Shield
    Heat Shield
  • 500
    715005787 Timeless Black RH Rear Fender
    Timeless Black RH Rear Fender
  • 510
    705006643 LH Rear Facia
    LH Rear Facia
  • 511
    707002103 Heat Shield
    Heat Shield
  • 512
    707002107 Heat Shield
    Heat Shield
  • 513
    707002594 Heat Shield
    Heat Shield
  • 514
    707002465 Heat Shield
    Heat Shield
  • 520
    705006650 RH Rear Facia
    RH Rear Facia
  • 660
    705005236 LH Pannel
    LH Pannel
  • 670
    705009121 RH Pannel
    RH Pannel
  • 680
    705014060 LH Central Panel
    LH Central Panel
  • 690
    705003444 Engine Cover
    Engine Cover
  • 995
    207662034 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
