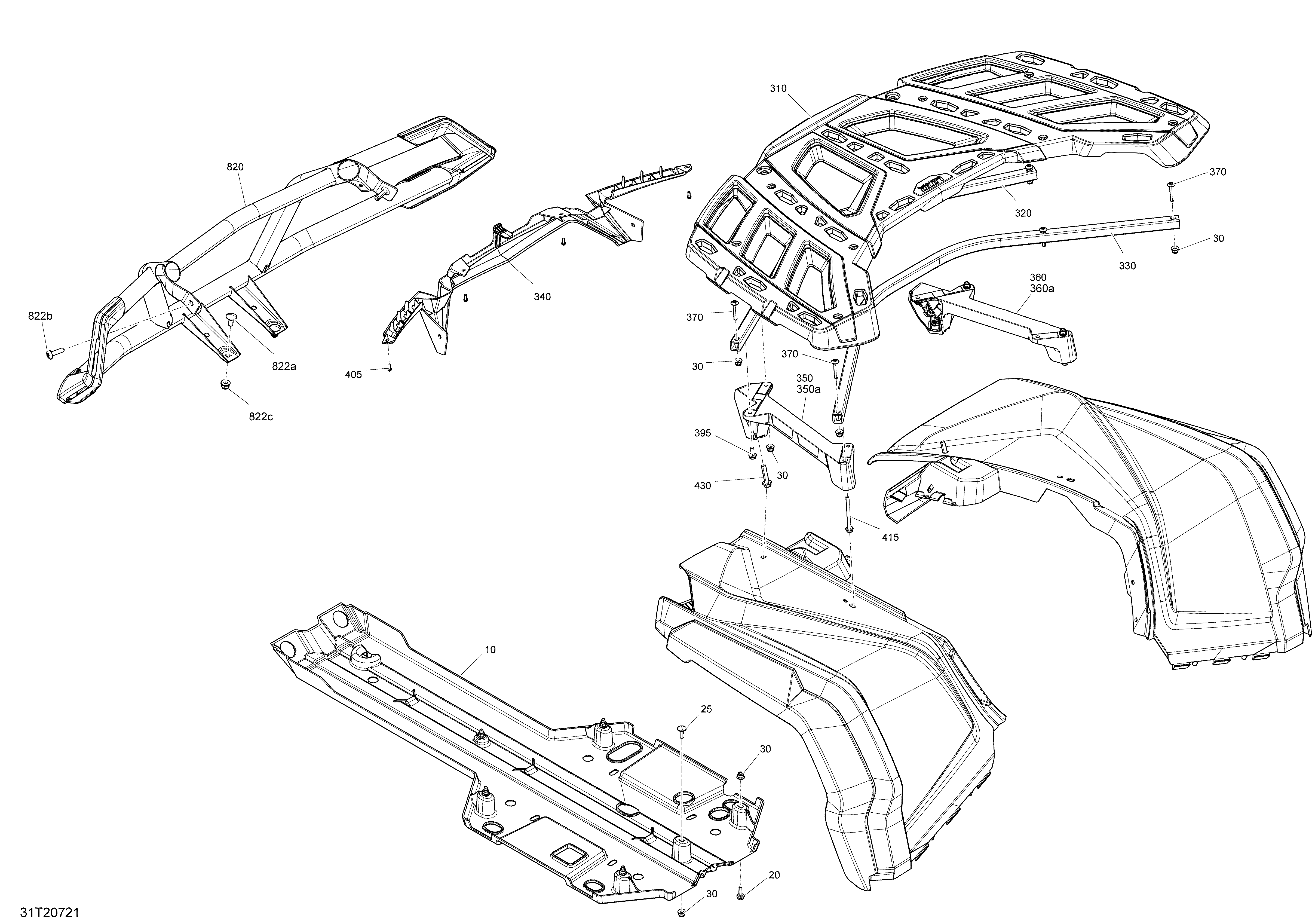

09- Body - Bumper And Skid Plate - Mineral Gray Satin для BRP 005 - Outlander 1000R EFI - XT - International - 2020
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
310705003559 Lugage RackLugage Rack
-
320705005469 TubeTube
-
330705005470 TubeTube
-
340705004523 Lugage Rack MouldingLugage Rack Moulding
-
350705011553 LH Support Luggage Rack Ass'y. Includes 350 to 350aLH Support Luggage Rack Ass'y. Includes 350 to 350a
-
350a269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
360705011555 RH Support Luggage Rack Ass'y. Includes 360 to 360aRH Support Luggage Rack Ass'y. Includes 360 to 360a
-
360a269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
395207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
405241140060 Screw K40 X 10Screw K40 X 10
-
415207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
430207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
820705014565 Deep Black, Front BumperDeep Black, Front Bumper
-
822a207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
822b250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
822c233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
