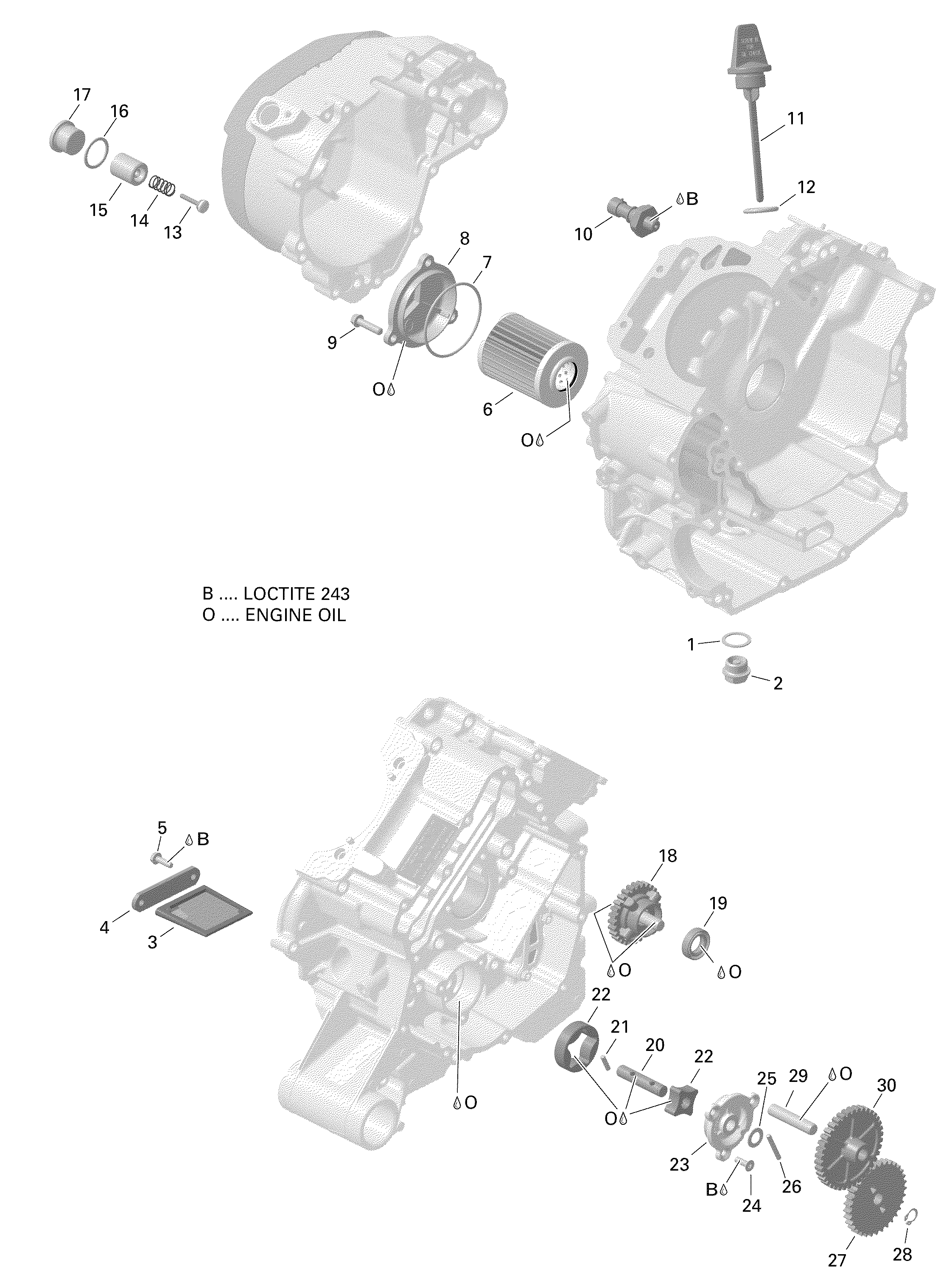

01- Engine Lubrication Version 1 для BRP 003 - Outlander 650 EFI - XT - International - 2020
-
№АртикулНазвание
-
1420250640 Copper WasherCopper Washer
-
2420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
3420256321 Oil SieveOil Sieve
-
4420210661 Cover SieveCover Sieve
-
5420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
6420256188 Oil FilterOil Filter
-
7420230920 O-RingO-Ring
-
8420612132 Oil Filter CoverOil Filter Cover
-
9420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420256915 Oil Pressure SwitchOil Pressure Switch
-
11420256802 Oil DipstickOil Dipstick
-
12420631640 O-RingO-Ring
-
13420656370 Pressure Relief ValvePressure Relief Valve
-
14420939485 Compression SpringCompression Spring
-
15420256486 Housing ValveHousing Valve
-
16420650465 Gasket RingGasket Ring
-
17420640270 Screw PlugScrew Plug
-
18420434307 Idle Gear Ass'y, 28 TeethIdle Gear Ass'y, 28 Teeth
-
19420430555 Oil SealOil Seal
-
20420237059 Oil Pump ShaftOil Pump Shaft
-
21420232731 Needle PinNeedle Pin
-
22420256348 Oil Pump RotorOil Pump Rotor
-
23420210641 Oil Pump CoverOil Pump Cover
-
24420640821 Torx Screw M5 X 16Torx Screw M5 X 16
-
25420827590 Thrust WasherThrust Washer
-
26420232431 Needle PinNeedle Pin
-
27420434320 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
28504152282 CirclipCirclip
-
29420434300 Idle Gear, 38 TeethIdle Gear, 38 Teeth
