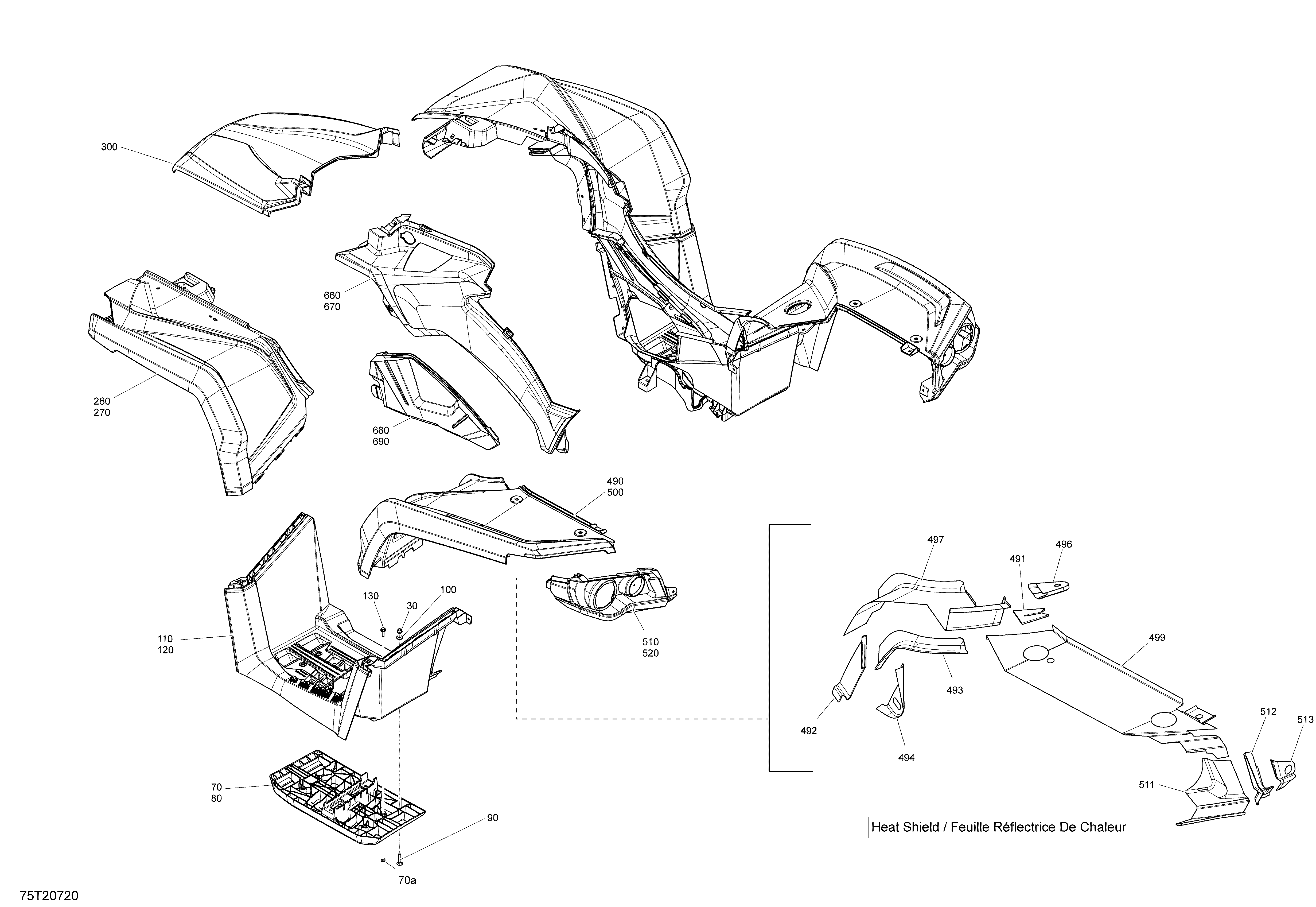

09- Body - Fenders And Lateral Panels - PRO - Yellow для BRP 002 - Outlander 650 EFI - PRO - International - Non-European Communities - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural FootboardRH Structural Footboard
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007039 RH FootrestRH Footrest
-
130207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
260715006900 Yellow, LH Front Fender KitYellow, LH Front Fender Kit
-
270715006936 Yellow, RH Front Fender KitYellow, RH Front Fender Kit
-
300715002234 Yellow Hood KitYellow Hood Kit
-
490715006951 Yellow, LH Rear Fender KitYellow, LH Rear Fender Kit
-
491707002456 Heat ShieldHeat Shield
-
492707002457 Heat ShieldHeat Shield
-
493707002458 Heat ShieldHeat Shield
-
494707002459 Heat ShieldHeat Shield
-
496707002461 Heat ShieldHeat Shield
-
497707002462 Heat ShieldHeat Shield
-
499707002464 Heat ShieldHeat Shield
-
500715006967 Yellow, RH Rear Fender KitYellow, RH Rear Fender Kit
-
510705006643 LH Rear FaciaLH Rear Facia
-
511707002103 Heat ShieldHeat Shield
-
512707002107 Heat ShieldHeat Shield
-
513707002594 Heat ShieldHeat Shield
-
520705006650 RH Rear FaciaRH Rear Facia
-
660705003446 Yellow, LH Lateral PanelYellow, LH Lateral Panel
-
670705009019 Yellow, RH Lateral PanelYellow, RH Lateral Panel
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
