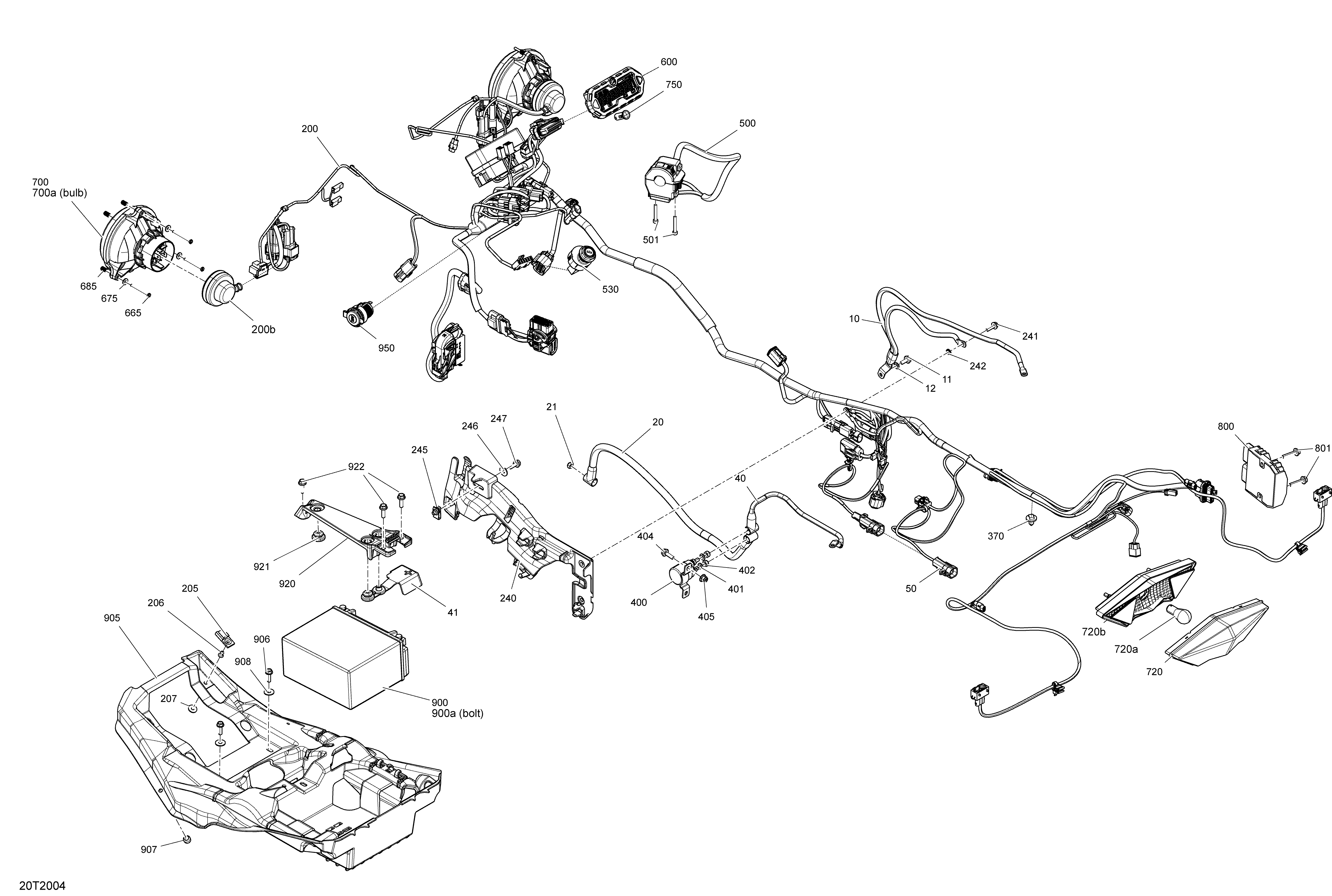

10- Electrical System для BRP 007 - Outlander MAX 450 EFI - International - 2020

  • №
    Артикул
    Название
  • 10
    710004380 Ground Cable
    Ground Cable
  • 11
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 12
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 20
    710004381 Positive Cable
    Positive Cable
  • 21
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 40
    710004376 Positive Cable
    Positive Cable
  • 41
    710006729 Cap Battery Cable
    Cap Battery Cable
  • 50
    710005819 Extension Cable 02 Sensor
    Extension Cable 02 Sensor
  • 200
    710006172 Electric Harness. Package DPS. Includes 200 to 200b
    Electric Harness. Package DPS. Includes 200 to 200b
  • 200
    710006173 Harness Ass'y. Package STD. Includes 200 to 200b
    Harness Ass'y. Package STD. Includes 200 to 200b
  • 200a
    710003976 Fuse Shematic Decal
    Fuse Shematic Decal
  • 200b
    710004020 Headlamp Protector Cap
    Headlamp Protector Cap
  • 205
    270000141 Clip
    Clip
  • 206
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 207
    391301600 Washer
    Washer
  • 240
    707001280 Cable Bracket
    Cable Bracket
  • 241
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 242
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 245
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 246
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 247
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 370
    293730040 Mount Dart
    Mount Dart
  • 400
    710001364 Starter Relay
    Starter Relay
  • 401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 402
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 404
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 405
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 500
    710005072 Multi-Function Handle
    Multi-Function Handle
  • 501
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 530
    710005153 Ignition Switch With Keys
    Ignition Switch With Keys
  • 600
    710005553 Speedometer
    Speedometer
  • 665
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 675
    517225900 Flat Washer
    Flat Washer
  • 685
    517168600 Spring
    Spring
  • 700
    710003900 Low Beam
    Low Beam
  • 700a
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 720a
    520000758 Bulb
    Bulb
  • 720b
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 720
    710001203 Tail Light Housing Ass'y
    Tail Light Housing Ass'y
  • 750
    710003910 Pilot Lamp Cap
    Pilot Lamp Cap
  • 800
    710001103 Voltage Regulator. Package STD
    Voltage Regulator. Package STD
  • 800
    710005569 Voltage Regulator. Package DPS
    Voltage Regulator. Package DPS
  • 801
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 900
    410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 905
    710006561 Battery Support
    Battery Support
  • 906
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 907
    293830005 Rubber Bumper
    Rubber Bumper
  • 908
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 920
    710002404 Fixation Plate
    Fixation Plate
  • 921
    705014429 Stopper Rubber
    Stopper Rubber
  • 922
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 950
    710001248 Outlet DC
    Outlet DC
