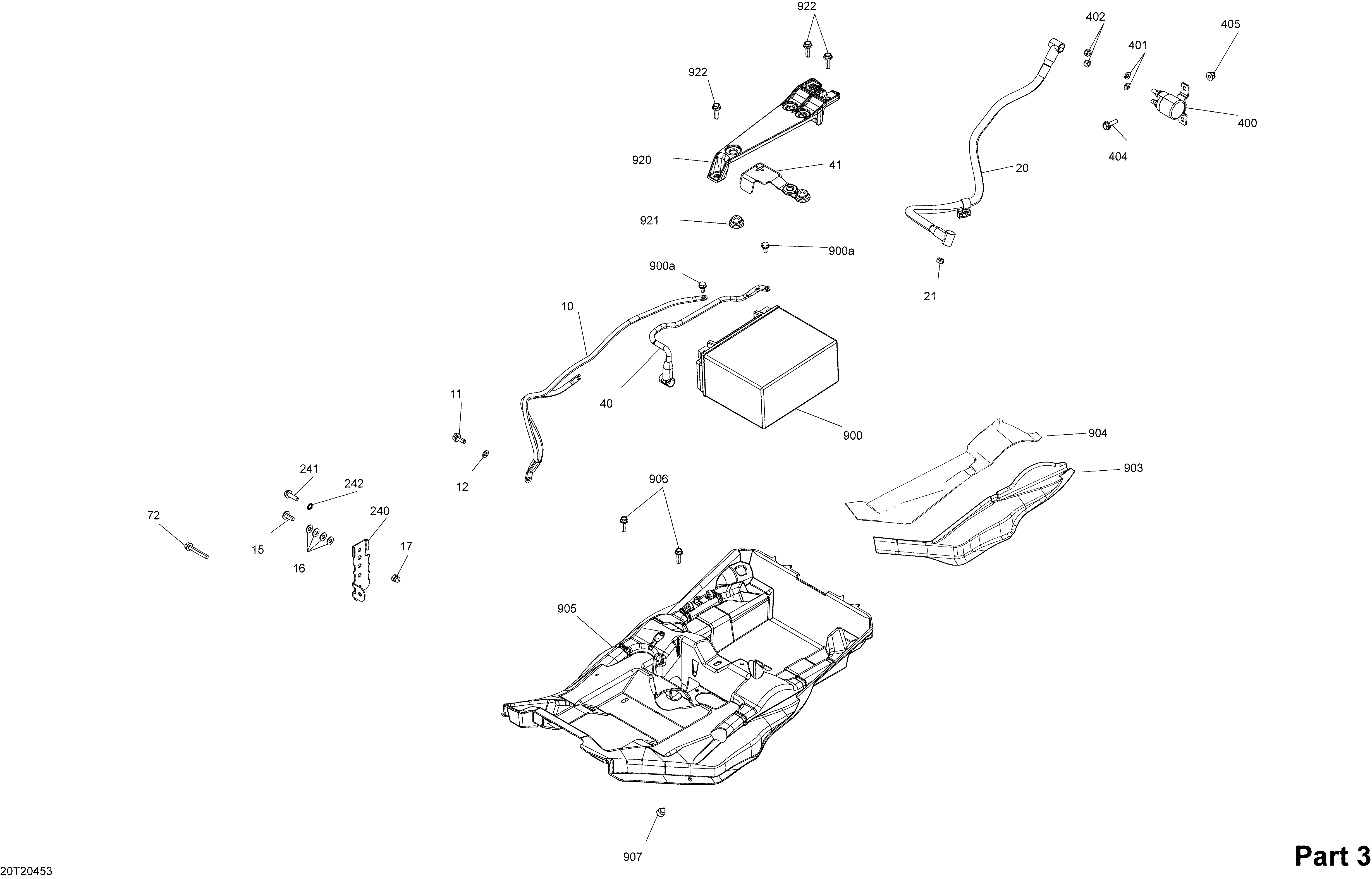

10- Electrical System - Section 3 для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive CablePositive Cable
-
41710006729 Cap Battery CableCap Battery Cable
-
72210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
900410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
903710006532 Heat ShieldHeat Shield
-
904710006533 Heat ShieldHeat Shield
-
905710006561 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
920710002404 Fixation PlateFixation Plate
-
921705014429 Stopper RubberStopper Rubber
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
