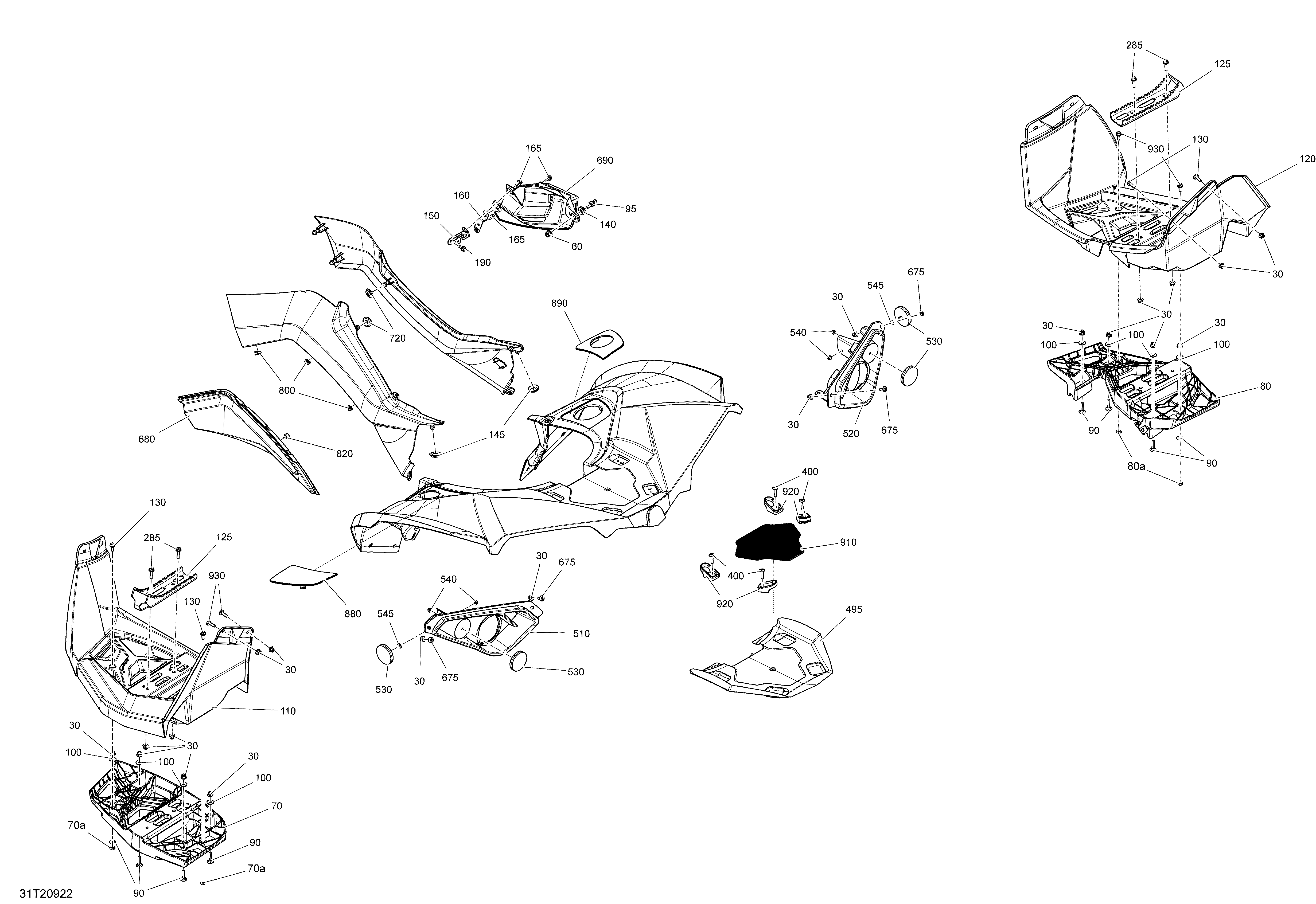

09- Body - Rear Section - Sunburst Yellow для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705004176 LH Footboard. Includes 70 to 70aLH Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705004177 RH Footboard. Includes 80 to 80aRH Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
90207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
95250300039 Ball Head StudBall Head Stud
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705004730 LH Footboard/FenderLH Footboard/Fender
-
120705004729 RH Footboard/FenderRH Footboard/Fender
-
125705002326 FootrestFootrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
140293720053 GrommetGrommet
-
145705000321 Oval WasherOval Washer
-
150705011461 Engine Cover SupportEngine Cover Support
-
160705003646 Engine Cover SupportEngine Cover Support
-
165210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
190207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
285207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
400250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
495705005840 Reflective SheetReflective Sheet
-
510705004731 LH Rear FaciaLH Rear Facia
-
520705004732 RH Rear FaciaRH Rear Facia
-
530705011221 Red ReflectorRed Reflector
-
540233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
545517225900 Flat WasherFlat Washer
-
675250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
680705004988 Panel ExtensionPanel Extension
-
690705004966 Engine CoverEngine Cover
-
720705003264 GrommetGrommet
-
800414479100 ClipClip
-
820293830005 Rubber BumperRubber Bumper
-
880705001910 Black LH CapBlack LH Cap
-
890705002420 Neck CapNeck Cap
-
910705002343 Rear CarpetRear Carpet
-
920705002342 HookHook
-
930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
