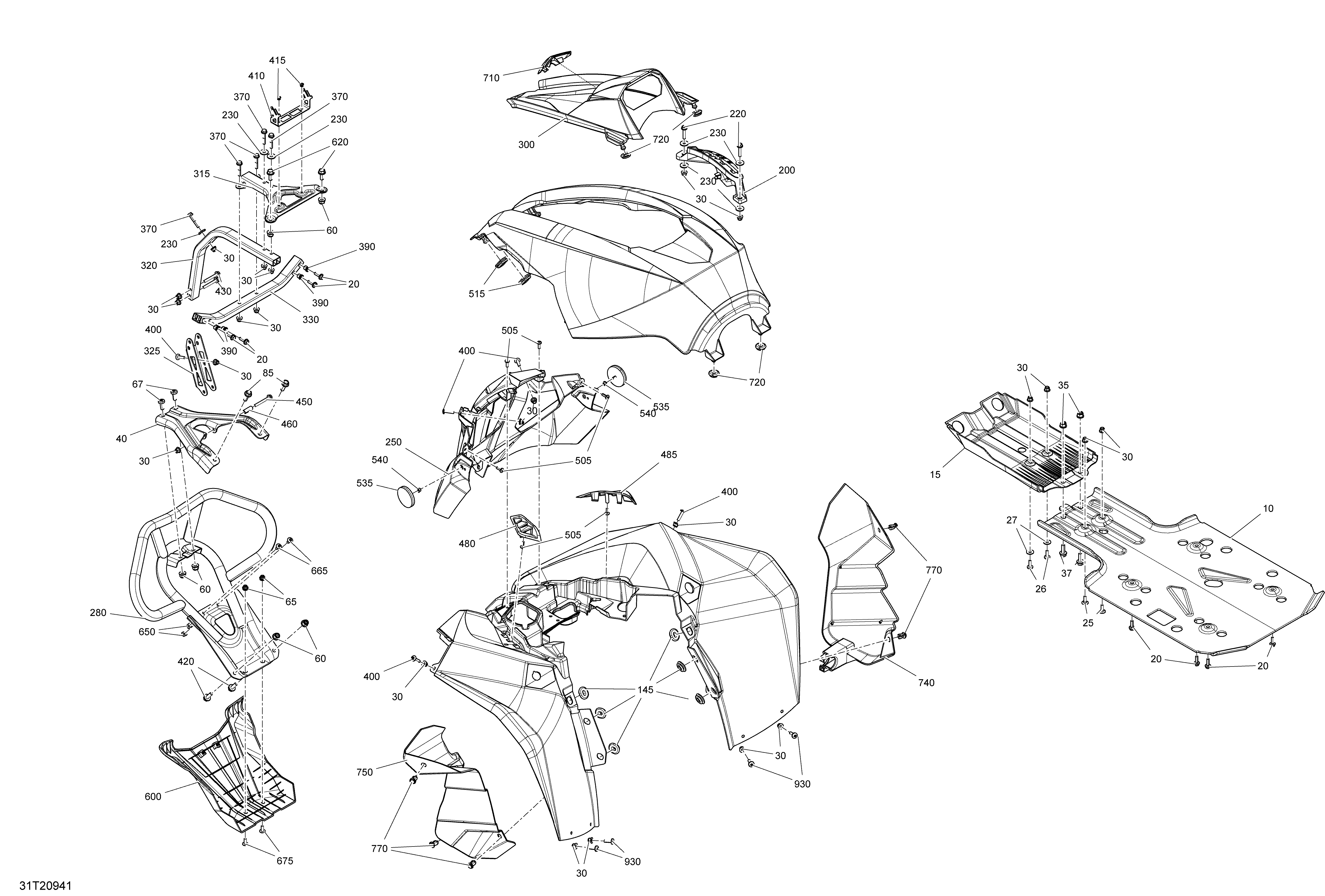

09- Body - Front Section - Black для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
10705204031 Central Skid PlateCentral Skid Plate
-
15705007820 Skid PlateSkid Plate
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
26250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
27234062670 Flat Washer, StainlessFlat Washer, Stainless
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
40705003505 Bumper SupportBumper Support
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
67250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
85207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
145705000321 Oval WasherOval Washer
-
200705003838 Lever IndicatorLever Indicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705003948 Front FaciaFront Facia
-
280705011635 Front BumperFront Bumper
-
300705003556 DashboardDashboard
-
315705003599 BracketBracket
-
320705003511 Front TubeFront Tube
-
325705002282 SupportSupport
-
330705003510 Body TubeBody Tube
-
370207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
390293450275 InsertInsert
-
400250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
410710002482 Fuse HolderFuse Holder
-
415390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
420207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
430207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
450207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
460705005809 SpacerSpacer
-
480705008137 LH GrillLH Grill
-
485705008138 RH GrillRH Grill
-
505250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
515705003668 Oblong GrommetOblong Grommet
-
535705011222 Amber ReflectorAmber Reflector
-
540233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
600705004850 Front Bumper PlateFront Bumper Plate
-
620207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
650232862412 Square Nut M6Square Nut M6
-
665250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
675250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
710705002353 CapCap
-
720705003264 GrommetGrommet
-
740705010717 RH Inner FenderRH Inner Fender
-
750705011891 LH Inner FenderLH Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
