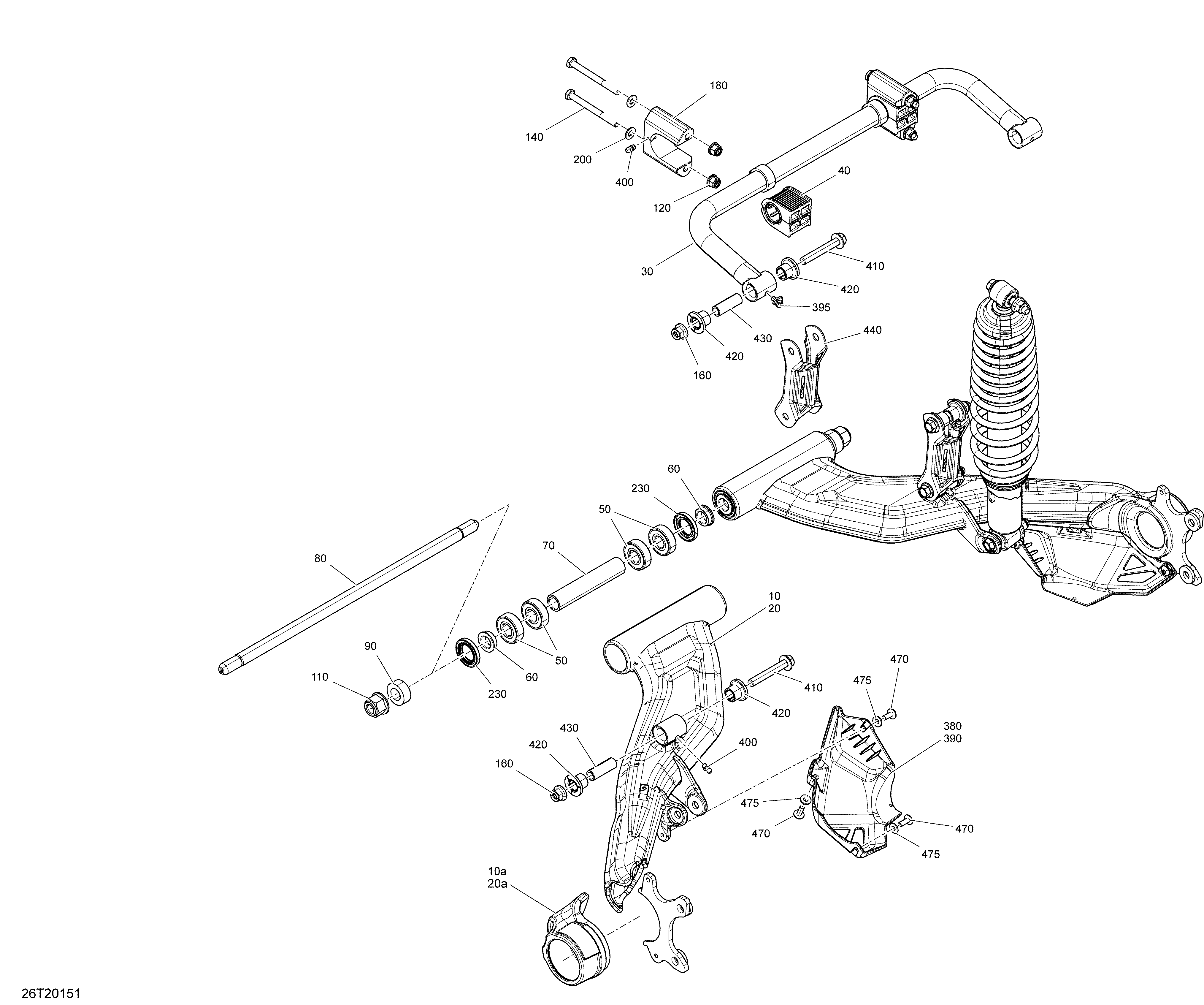

08- Rear Suspension для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
10706003254 LH Swing Arm. XMR. Includes 10 to 10aLH Swing Arm. XMR. Includes 10 to 10a
-
10a706003041 LH Swing Arm. XMRLH Swing Arm. XMR
-
10706003254 LH Swing Arm. XXC. Includes 10 to 10aLH Swing Arm. XXC. Includes 10 to 10a
-
10a706003041 LH Swing Arm. XXCLH Swing Arm. XXC
-
10706003041 LH Swing Arm. STDLH Swing Arm. STD
-
20706003042 RH Swing Arm. STDRH Swing Arm. STD
-
20706003255 RH Swing Arm. XXC. Includes 20 to 20aRH Swing Arm. XXC. Includes 20 to 20a
-
20a706003042 RH Swing Arm. XXCRH Swing Arm. XXC
-
20706003255 RH Swing Arm. XMR. Includes 20 to 20aRH Swing Arm. XMR. Includes 20 to 20a
-
20a706003042 RH Swing Arm. XMRRH Swing Arm. XMR
-
30706003050 SwaybarSwaybar
-
40706003130 BushingBushing
-
50706003749 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 SpacerSpacer
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140250001035 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
160233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706003052 LH ProtectorLH Protector
-
390706003053 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420703500875 Bushing KitBushing Kit
-
430703500875 Bushing KitBushing Kit
-
440706001020 Swaybar LinkageSwaybar Linkage
-
470250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
475250200039 Flat WasherFlat Washer
