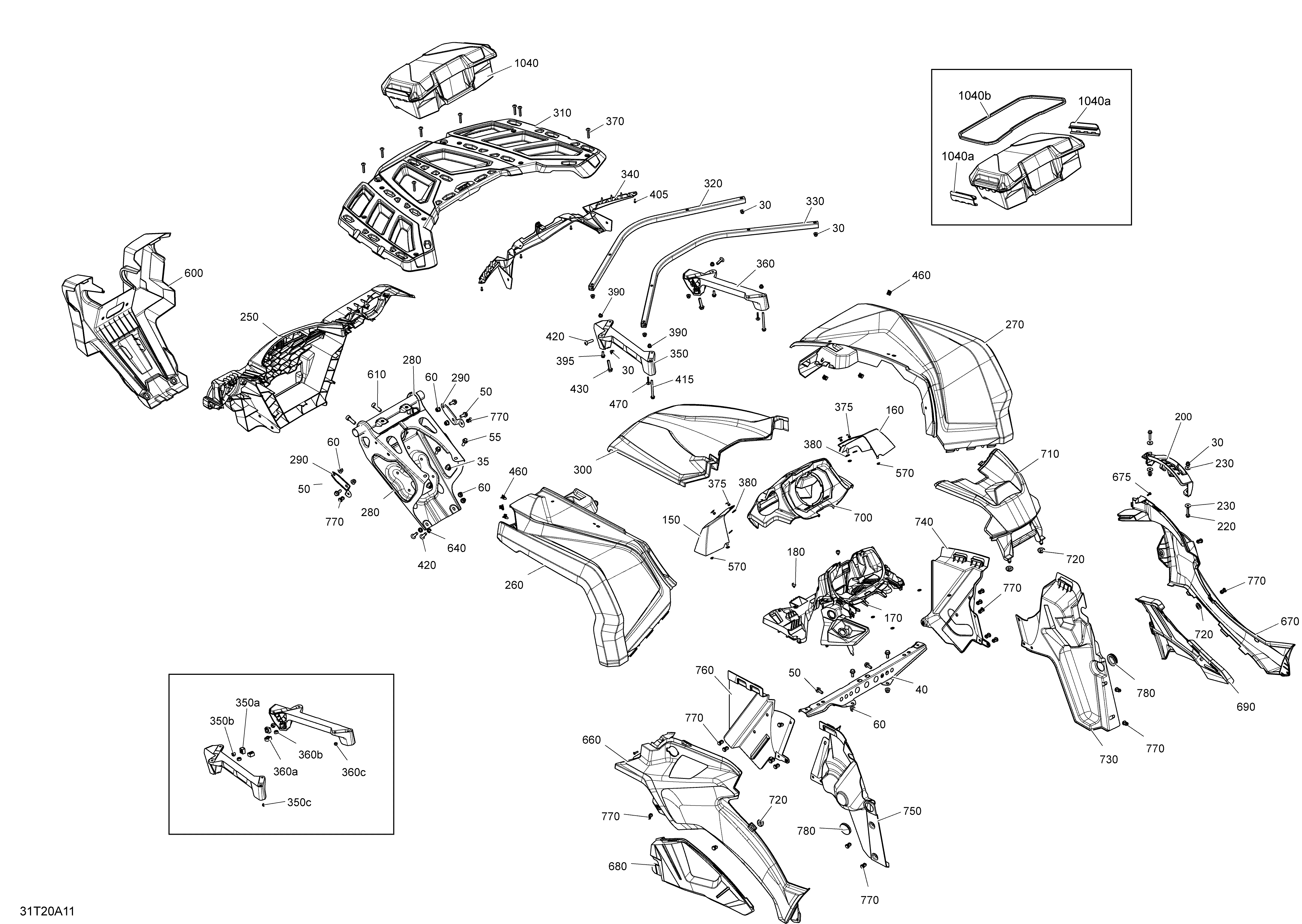

09- Body - Front Section - Squadron Green для BRP 002 - Outlander MAX 6X6 - 650 EFI - North America - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
40705006812 Cargo Rack Center SupportCargo Rack Center Support
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
150705006134 LH Air DeflectorLH Air Deflector
-
160705006135 RH Air DeflectorRH Air Deflector
-
170715006101 Console Support Ass'yConsole Support Ass'y
-
180293830005 Rubber BumperRubber Bumper
-
200715004085 IndicatorIndicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705012822 FasciaFascia
-
260715006447 Squadron Green, LH Front Fender KitSquadron Green, LH Front Fender Kit
-
270715006069 Squadron Green, RH Front Fender KitSquadron Green, RH Front Fender Kit
-
280705009253 Black Front Bumper SupportBlack Front Bumper Support
-
290705004565 Lower Fender SupportLower Fender Support
-
300715005117 Squadron Green, Hood KitSquadron Green, Hood Kit
-
310715002784 Rack KitRack Kit
-
320705005469 TubeTube
-
330705005470 TubeTube
-
340705004523 Lugage Rack MouldingLugage Rack Moulding
-
350705011553 LH Support Luggage Rack Ass'y. Includes 350 to 350cLH Support Luggage Rack Ass'y. Includes 350 to 350c
-
350a269501943 Elastic Nut Housing M8. Includes 350a to 350bElastic Nut Housing M8. Includes 350a to 350b
-
350b232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
350c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
360705011555 RH Support Luggage Rack Ass'y. Includes 360 to 360cRH Support Luggage Rack Ass'y. Includes 360 to 360c
-
360a269501943 Elastic Nut Housing M8. Includes 360a to 360bElastic Nut Housing M8. Includes 360a to 360b
-
360b232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
375293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
380517124300 WasherWasher
-
390250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
395207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
405241140060 Screw K40 X 10Screw K40 X 10
-
415207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
460517302785 Edge ClipEdge Clip
-
470250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
570732610072 Push NutPush Nut
-
600705006299 Front Guard PlateFront Guard Plate
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
640705004497 RingRing
-
660705009760 Squadron Green, LH Lateral PanelSquadron Green, LH Lateral Panel
-
670705009764 Squadron Green, RH Lateral PanelSquadron Green, RH Lateral Panel
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
-
700705007095 Gauge Support. Includes 700 to 700aGauge Support. Includes 700 to 700a
-
710715006098 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
730705013925 RH Wheel Arch ProtectorRH Wheel Arch Protector
-
740705011463 LH Wheel Arch ProtectorLH Wheel Arch Protector
-
750705013924 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
-
1040708200408 Box Ass'y. Includes 1040 to 1040bBox Ass'y. Includes 1040 to 1040b
-
1040a269501945 Clip. Includes 1040a to 1040bClip. Includes 1040a to 1040b
-
1040b715900411 Neoprene SealNeoprene Seal
