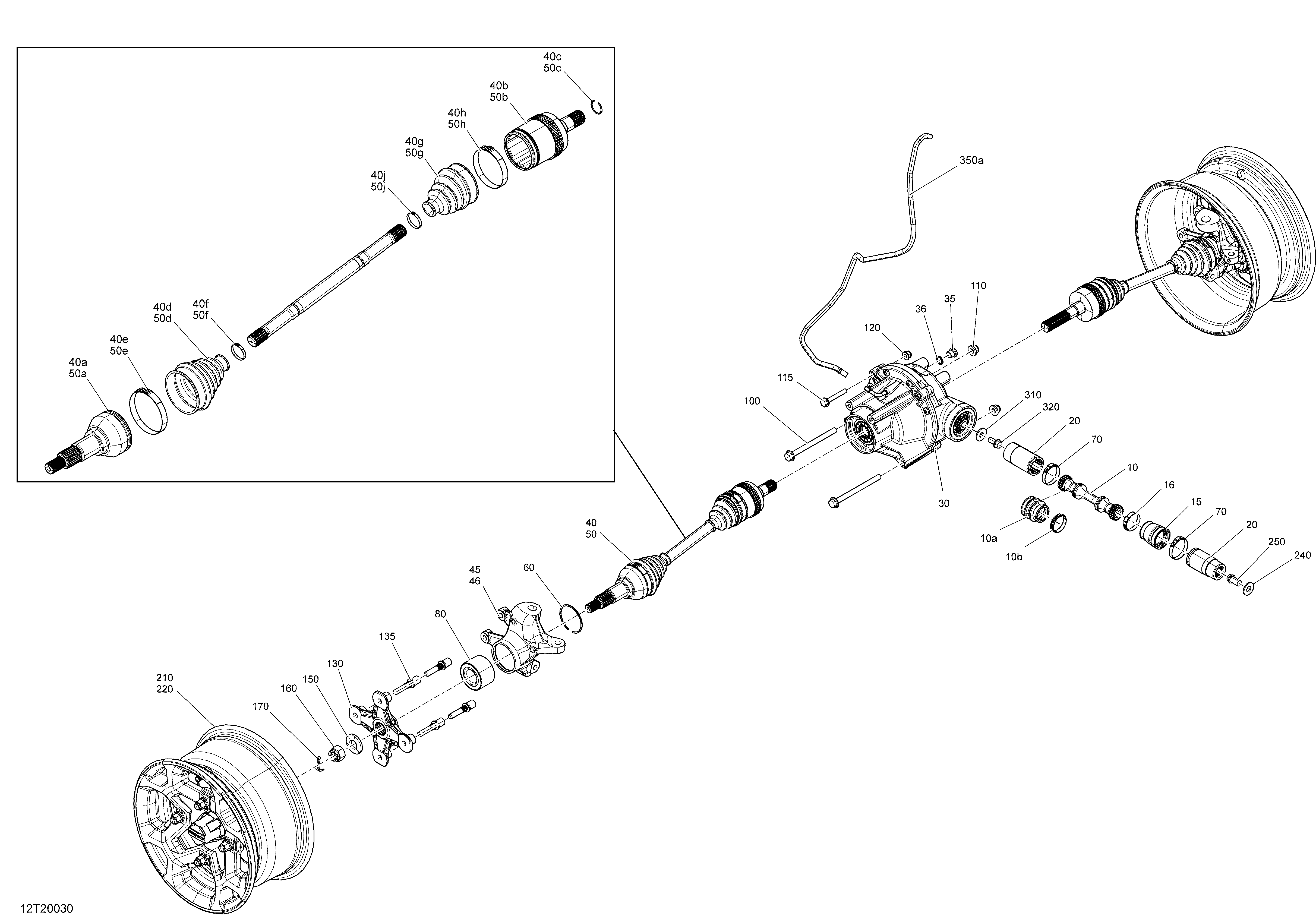

07- Front Drive - Common Parts для BRP 003 - Outlander 570 EFI - XMR - North America - 2020
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker Gear ClampOetiker Gear Clamp
-
20705401969 Coupling-SleeveCoupling-Sleeve
-
25703500678 Front Bushing Shaft Kit. Not ShownFront Bushing Shaft Kit. Not Shown
-
30703500908 Front Differential. Includes 30 to 30yFront Differential. Includes 30 to 30y
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401116 RH Homocinetic JointRH Homocinetic Joint
-
40a705401344 CV JointCV Joint
-
40b705401345 Boot Kit, Wheel Side. Includes toBoot Kit, Wheel Side. Includes to
-
40c715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40e705401346 Boot Kit, Différential Side. Includes toBoot Kit, Différential Side. Includes to
-
40f715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
40g715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40h705401348 RH Plunging JointRH Plunging Joint
-
40j705401349 Circlip JointCirclip Joint
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
50705401115 LH Homocinetic JointLH Homocinetic Joint
-
50a705401344 CV JointCV Joint
-
50b705401345 Boot Kit, Wheel Side. Includes toBoot Kit, Wheel Side. Includes to
-
50c715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50d715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e705401346 Boot Kit, Différential Side. Includes toBoot Kit, Différential Side. Includes to
-
50f715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
50g715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50h705401350 LH Plunging JointLH Plunging Joint
-
50j705401349 Circlip JointCirclip Joint
-
60293350118 Cone BearingCone Bearing
-
70293650138 Oetiker Gear ClampOetiker Gear Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
135250300642 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250001042 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
310250200014 Flat Washer M10Flat Washer M10
-
320250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
350a293830193 Polyurethane HosePolyurethane Hose
