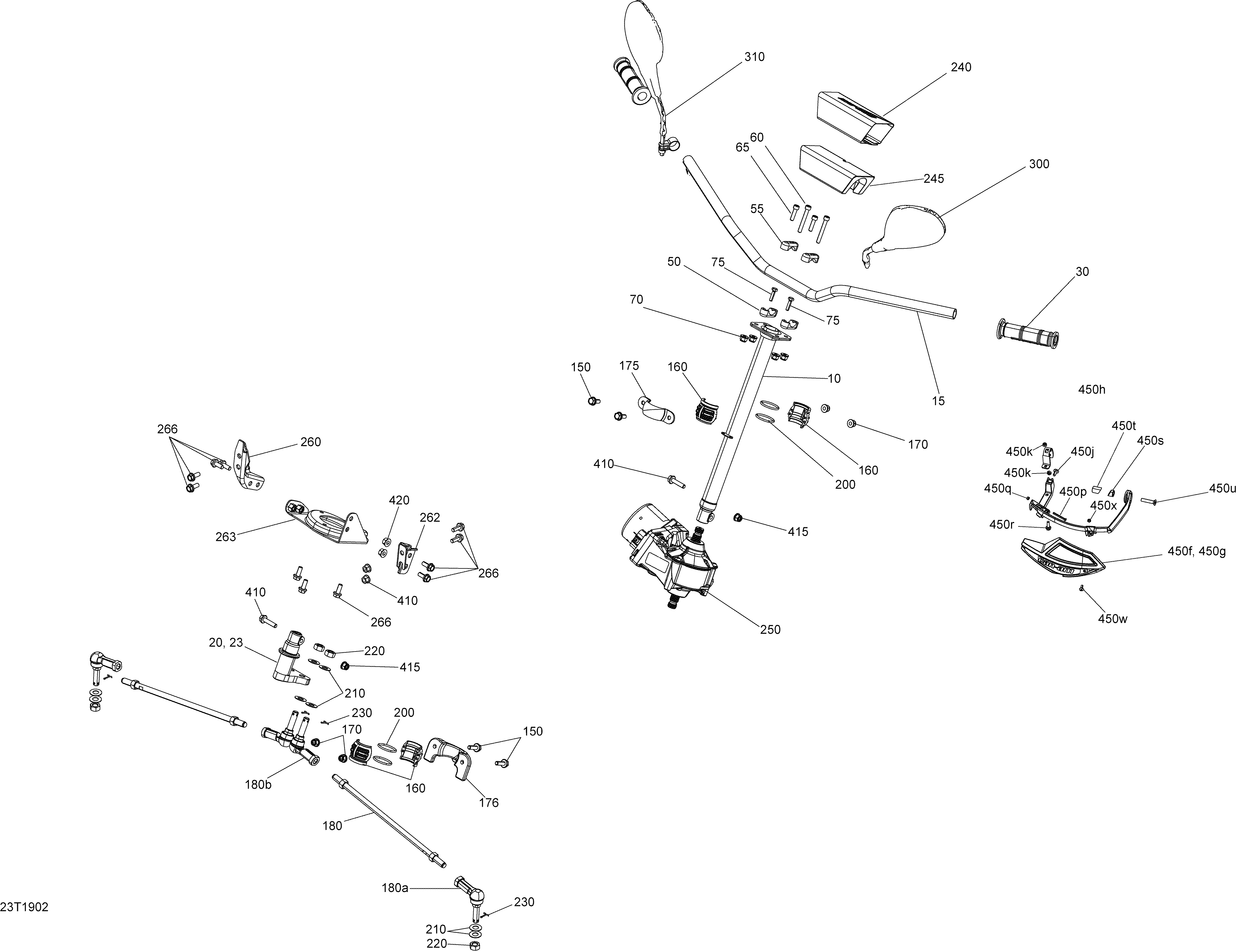

07- Steering для BRP 001 - Renegade 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10709401750 Black Upper Main TubeBlack Upper Main Tube
-
15709402063 Sunburst Yellow - Handle BarSunburst Yellow - Handle Bar
-
20709401748 Pitman ArmPitman Arm
-
30709400493 Handle GripHandle Grip
-
50709400497 Steering SupportSteering Support
-
55709400496 SupportSupport
-
60205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
65205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501025 Tie-Rod Ass`y. Includes 180 to 180aTie-Rod Ass`y. Includes 180 to 180a
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
185709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
245709402079 CoverCover
-
250709402230 Power SteeringPower Steering
-
260709402192 Power Steering Module BracketPower Steering Module Bracket
-
262709402185 Bracket RhBracket Rh
-
263709401743 Power Steering SupportPower Steering Support
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
300a709400406 LH MirrorLH Mirror
-
300b709400523 RH MirrorRH Mirror
-
410250000986 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
415233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
420233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
450f709402053 RH Air DeflectorRH Air Deflector
-
450g709402054 LH Air DeflectorLH Air Deflector
-
450h205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
450j232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
450k715001378 Air Deflector Support KitAir Deflector Support Kit
-
450m715001378 Air Deflector Support KitAir Deflector Support Kit
-
450n715001378 Air Deflector Support KitAir Deflector Support Kit
-
450p207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
450q250000717 Torx Head Screw M6 X 1.0 X 16Torx Head Screw M6 X 1.0 X 16
-
450r232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
450s709400161 Bracket, SmallBracket, Small
-
450t709400162 Bracket, LargeBracket, Large
-
450u205384034 Socket Head ScrewSocket Head Screw
-
450w250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
450x232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
