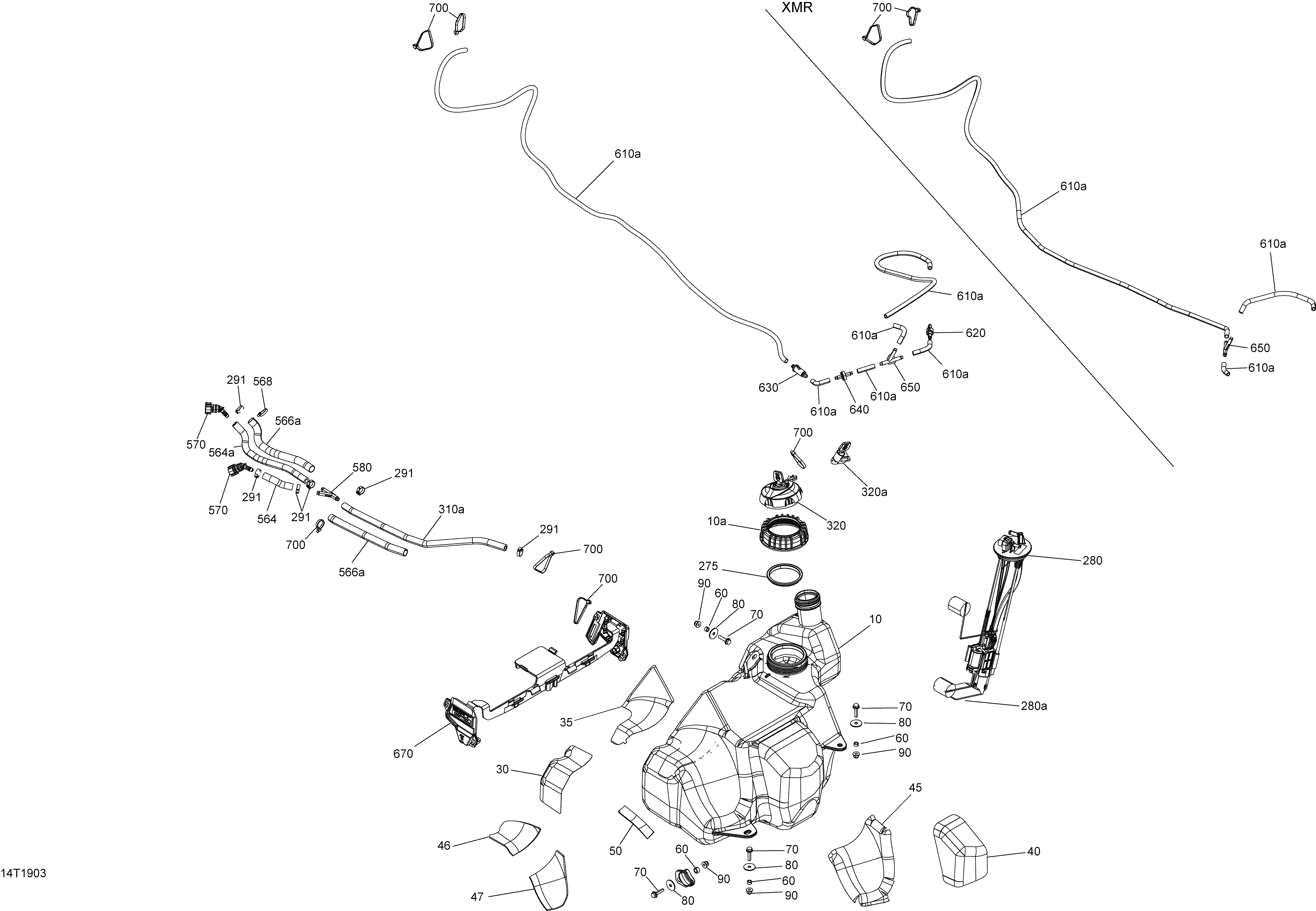

02- Fuel для BRP 001 - Renegade 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10709000843 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a709000328 Fuel Pump Module NutFuel Pump Module Nut
-
30709000381 Heat Reflective SheetHeat Reflective Sheet
-
35709000387 Heat Reflective SheetHeat Reflective Sheet
-
40709000382 Heat Reflective SheetHeat Reflective Sheet
-
45709000388 Heat Reflective SheetHeat Reflective Sheet
-
50293830172 Rubber PadRubber Pad
-
60293900104 BushingBushing
-
70207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
80224060251 WasherWasher
-
90233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
275709000208 SealSeal
-
280709000758 Fuel Pump. Includes 280 to 280aFuel Pump. Includes 280 to 280a
-
280a709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
291293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
310a709000516 Fuel LineFuel Line
-
320707001750 Lock Device Kit. Includes 320 to 320bLock Device Kit. Includes 320 to 320b
-
320a707000666 LockLock
-
320b860200387 Locking Cap Tank. Not ShownLocking Cap Tank. Not Shown
-
325414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
562a709000516 Fuel Line. Not ShownFuel Line. Not Shown
-
564a709000516 Fuel LineFuel Line
-
566a415080000 Tubing 16 mmTubing 16 mm
-
567415080000 Tubing 16 mm. Not ShownTubing 16 mm. Not Shown
-
568293750002 Tie-Rap 142 mm. Not ShownTie-Rap 142 mm. Not Shown
-
569414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
570709000627 Quick Fitting 45° Ass'yQuick Fitting 45° Ass'y
-
575709000627 Quick Fitting 45° Ass'y. Not ShownQuick Fitting 45° Ass'y. Not Shown
-
576293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
580293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
610a293830193 Polyurethane HosePolyurethane Hose
-
611a293830193 Polyurethane Hose. Not ShownPolyurethane Hose. Not Shown
-
612a293830193 Polyurethane Hose. Not ShownPolyurethane Hose. Not Shown
-
615a415079900 Tubing 10 mm. Not ShownTubing 10 mm. Not Shown
-
616414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
620513033469 Check ValveCheck Valve
-
630709000330 FilterFilter
-
640275500398 Check ValveCheck Valve
-
650293710059 Y-FittingY-Fitting
-
670709000359 Hose Support Ass'y. Includes 670 to 670aHose Support Ass'y. Includes 670 to 670a
-
670a232561600 Hex. Elastic Stop Nut M6. Not ShownHex. Elastic Stop Nut M6. Not Shown
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
