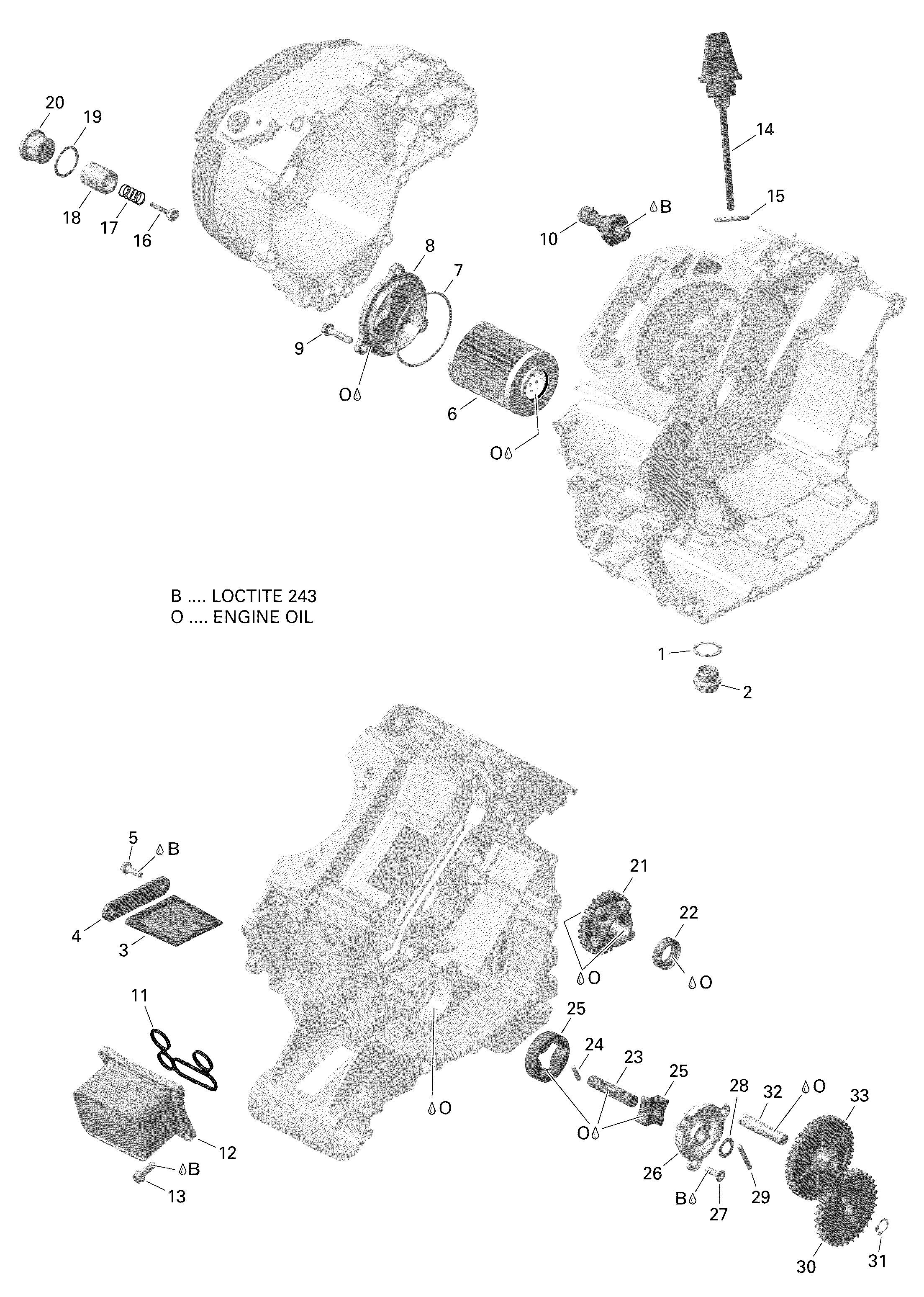

01- Engine Lubrication Version 2 для BRP 001 - Renegade 650 EFI - T3 - 2019
-
№АртикулНазвание
-
1420552280 O-RingO-Ring
-
2420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
3420256322 Oil SieveOil Sieve
-
4420612070 Cover SieveCover Sieve
-
5420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
6420256188 Oil FilterOil Filter
-
7420230920 O-RingO-Ring
-
8420612132 Oil Filter CoverOil Filter Cover
-
9420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420256915 Oil Pressure SwitchOil Pressure Switch
-
11420430325 Oil SealOil Seal
-
12420890181 RadiatorRadiator
-
13420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420256802 Oil DipstickOil Dipstick
-
15420631640 O-RingO-Ring
-
16420656370 Pressure Relief ValvePressure Relief Valve
-
17420939485 Compression SpringCompression Spring
-
18420256486 Housing ValveHousing Valve
-
19420650465 Gasket RingGasket Ring
-
20420640270 Screw PlugScrew Plug
-
21>22420434307 Idle Gear Ass'y, 28 TeethIdle Gear Ass'y, 28 Teeth
-
22420430555 Oil SealOil Seal
-
23420237059 Oil Pump ShaftOil Pump Shaft
-
24420232731 Needle PinNeedle Pin
-
25420256348 Oil Pump RotorOil Pump Rotor
-
26420210641 Oil Pump CoverOil Pump Cover
-
27420640823 Torx Head Screw M5 X 16Torx Head Screw M5 X 16
-
28420827590 Thrust WasherThrust Washer
-
29420232431 Needle PinNeedle Pin
-
30420434320 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
31504152282 CirclipCirclip
-
32420229302 Location PinLocation Pin
-
33420434300 Idle Gear, 38 TeethIdle Gear, 38 Teeth
