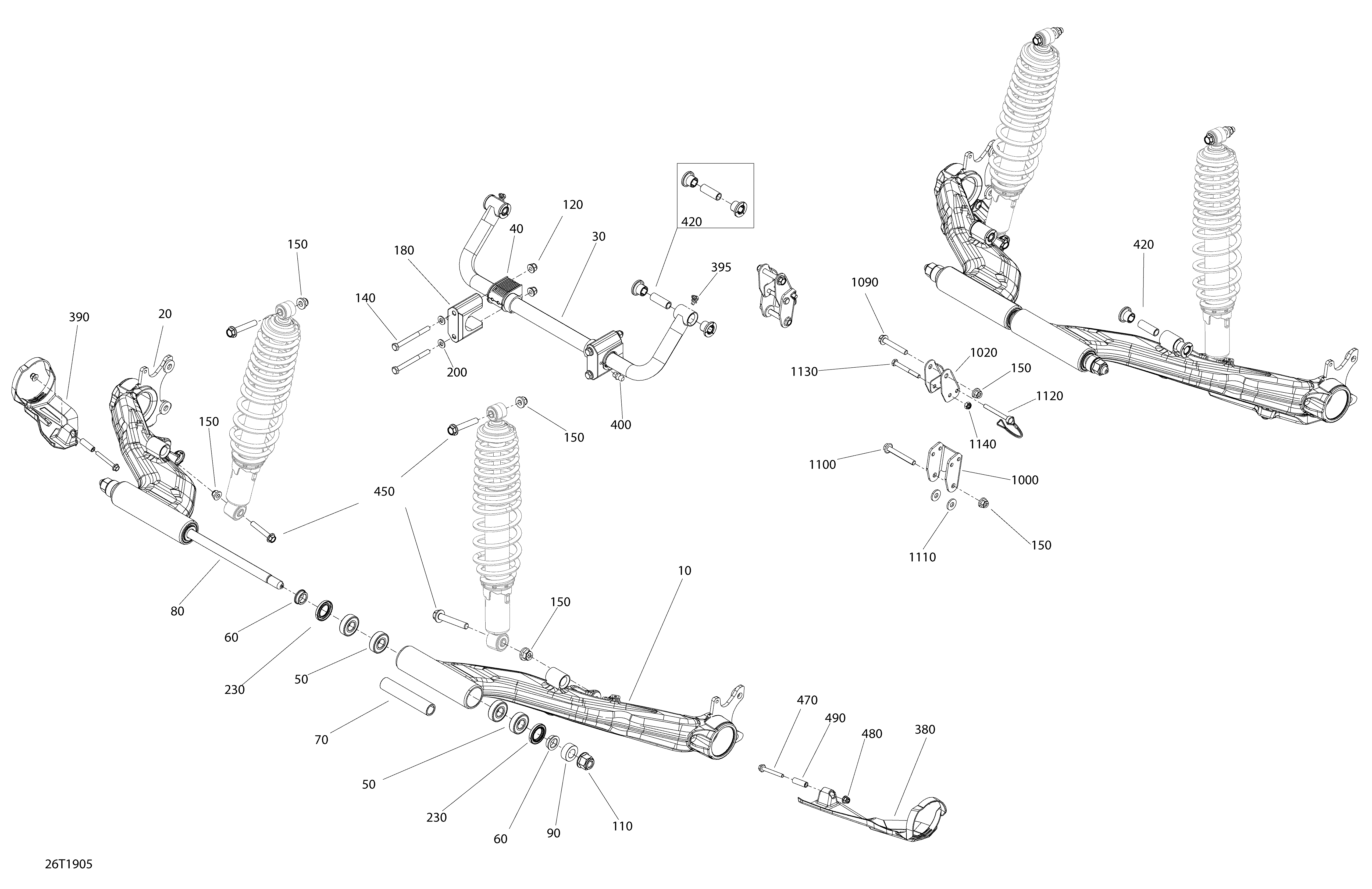

08- Rear Suspension 6X6 - Europe для BRP 004 - Outlander MAX 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
10706003471 Black LH Swing ArmBlack LH Swing Arm
-
20706001647 Black RH Swing ArmBlack RH Swing Arm
-
30706001678 Sway BarSway Bar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002258 SpacerSpacer
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140250001035 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
390706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
420703500875 Bushing KitBushing Kit
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
470207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
490707001376 BushingBushing
-
1000706003107 Linkage Outer PartLinkage Outer Part
-
1020706003109 Linkage Inner PartLinkage Inner Part
-
1090207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
1100207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
1110505073634 WasherWasher
-
1120706001602 Pin Onto The ShaftPin Onto The Shaft
-
1130207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
1140232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
