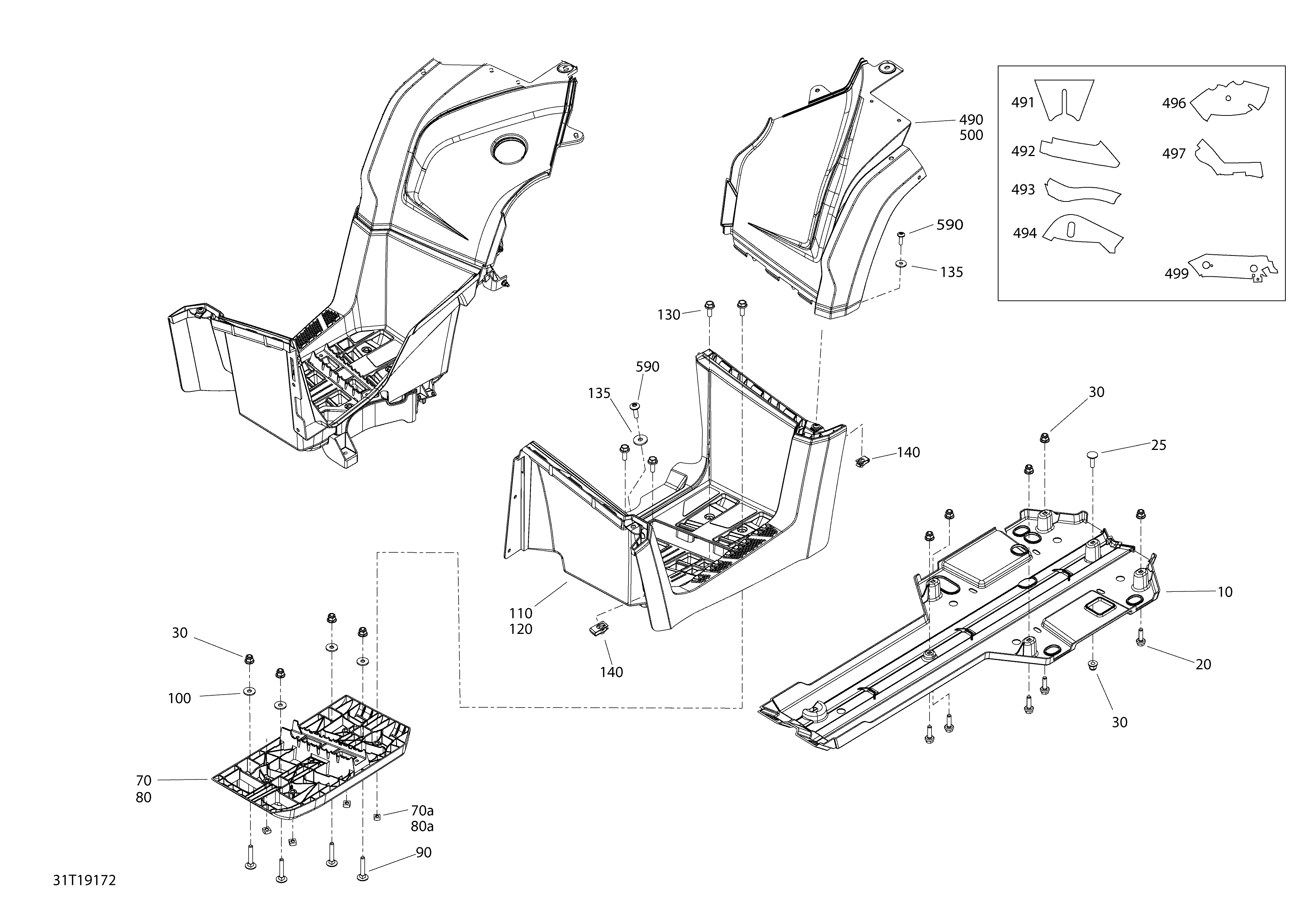

09- Body And Accessories 6X6 - 1000 EFI - Pure Magnesium - Middle для BRP 003 - Outlander 6X6 - 1000 EFI - T3 - 2019

  • №
    Артикул
    Название
  • 10
    715002374 Protective Plate Kit
    Protective Plate Kit
  • 20
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 25
    207762044 Carriage Bolt M6 X 20
    Carriage Bolt M6 X 20
  • 30
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 70
    705011540 LH Structural Footboard. Includes 70 to 70a
    LH Structural Footboard. Includes 70 to 70a
  • 70a
    232862412 Square Nut M6
    Square Nut M6
  • 80
    705011542 RH Structural Footboard. Includes 80 to 80a
    RH Structural Footboard. Includes 80 to 80a
  • 80a
    232862412 Square Nut M6
    Square Nut M6
  • 90
    207763554 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 100
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 110
    705007040 LH Footrest
    LH Footrest
  • 120
    705007039 RH Footrest
    RH Footrest
  • 130
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 135
    224061201 Flat Washer
    Flat Washer
  • 140
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 490
    715006084 Pure Magnesium Rear LH Fender
    Pure Magnesium Rear LH Fender
  • 491
    707002456 Heat Shield
    Heat Shield
  • 492
    707002457 Heat Shield
    Heat Shield
  • 493
    707002458 Heat Shield
    Heat Shield
  • 494
    707002459 Heat Shield
    Heat Shield
  • 496
    707002461 Heat Shield
    Heat Shield
  • 497
    707002462 Heat Shield
    Heat Shield
  • 499
    707002464 Heat Shield
    Heat Shield
  • 500
    715006091 Pure Magnesium Rear RH Fender
    Pure Magnesium Rear RH Fender
  • 590
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
