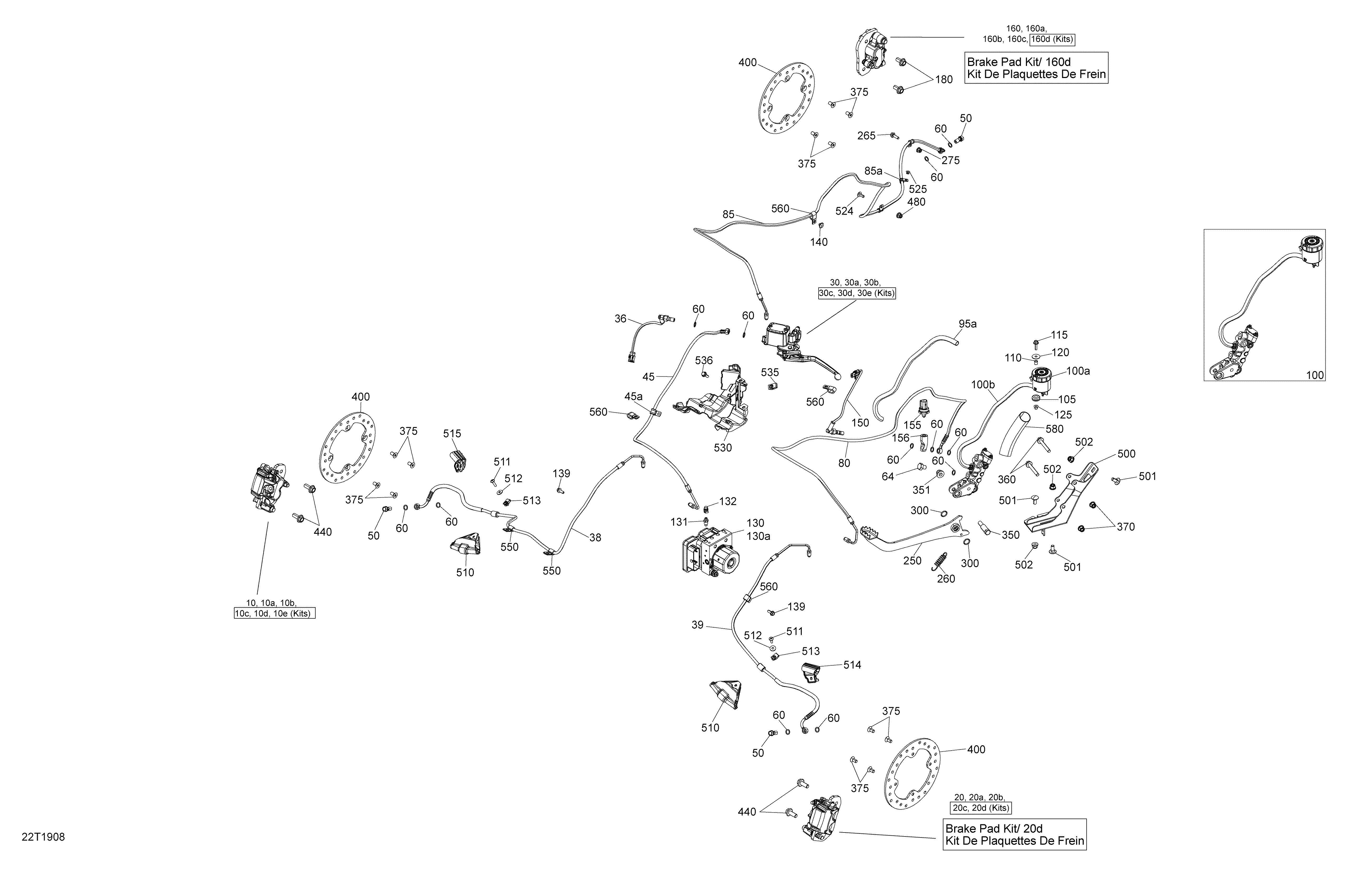

06- Brakes - 650 EFI - Except PRO Nordic для BRP 003 - Outlander MAX 650 EFI - T3 - 2019

  • №
    Артикул
    Название
  • 10
    705600861 RH Front Caliper Ass'y. Includes 10a to 10b
    RH Front Caliper Ass'y. Includes 10a to 10b
  • 10a
    705601017 Bleeding Screw
    Bleeding Screw
  • 10b
    705601018 Spring
    Spring
  • 10d
    705601014 RH Brake Pad Kit
    RH Brake Pad Kit
  • 10e
    705601016 Pin Set
    Pin Set
  • 20
    705600862 LH Front Caliper Ass'y. Includes 20a to 20b
    LH Front Caliper Ass'y. Includes 20a to 20b
  • 20a
    705601017 Bleeding Screw
    Bleeding Screw
  • 20b
    705601018 Spring
    Spring
  • 20c
    705601016 Pin Set
    Pin Set
  • 20d
    705601015 LH Brake Pad Kit
    LH Brake Pad Kit
  • 30
    705601431 LH Front Master Cylinder Ass'y. Includes 30a to 30b
    LH Front Master Cylinder Ass'y. Includes 30a to 30b
  • 30a
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 30b
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 30c
    705601013 Lever Set
    Lever Set
  • 30d
    507032477 Clamp And Screw Kit
    Clamp And Screw Kit
  • 30e
    219800096 Cap Set
    Cap Set
  • 36
    705601669 Brake Switch
    Brake Switch
  • 38
    705601688 RH Brake Line
    RH Brake Line
  • 39
    705601689 LH Brake Line
    LH Brake Line
  • 45
    705601574 Brake Hose. Includes 45 to 45a
    Brake Hose. Includes 45 to 45a
  • 45a
    293650256 Clamp
    Clamp
  • 50
    705600609 Banjo Bolt (M10 x 1.25 thread)
    Banjo Bolt (M10 x 1.25 thread)
  • 60
    705601628 Copper Washer
    Copper Washer
  • 64
    250000163 Hex. Screw M10 X 14, Scotch Grip
    Hex. Screw M10 X 14, Scotch Grip
  • 80
    705601575 Brake Hose
    Brake Hose
  • 85
    705601577 RH Rear Hose. Includes 85 to 85a
    RH Rear Hose. Includes 85 to 85a
  • 85a
    293650256 Clamp
    Clamp
  • 95a
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 100
    705601274 Rear Master Cylinder Ass'y. Includes 100 to 100c
    Rear Master Cylinder Ass'y. Includes 100 to 100c
  • 100a
    705601020 Oil Tank
    Oil Tank
  • 100b
    705601019 Housing Oil Hose
    Housing Oil Hose
  • 105
    414036300 Grommet
    Grommet
  • 110
    293900112 Bushing
    Bushing
  • 115
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 120
    224060201 Flat Washer
    Flat Washer
  • 130
    703500984 VCM Module. Includes 130 to 130a
    VCM Module. Includes 130 to 130a
  • 130a
    710003279 Damper Shock
    Damper Shock
  • 131
    705600502 Bleeder Screw
    Bleeder Screw
  • 132
    705601190 Bleeder Bolt Cap
    Bleeder Bolt Cap
  • 135
    710003279 Damper Shock
    Damper Shock
  • 139
    210261640 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 140
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 150
    705601670 Dual Brake Switch
    Dual Brake Switch
  • 155
    705601617 Banjo Coupling
    Banjo Coupling
  • 156
    705601578 Pressure Sensor
    Pressure Sensor
  • 160
    705600859 RH Rear Caliper Ass'y. Includes 160a to 160b
    RH Rear Caliper Ass'y. Includes 160a to 160b
  • 160a
    705601017 Bleeding Screw
    Bleeding Screw
  • 160b
    705601018 Spring
    Spring
  • 160c
    705601016 Pin Set
    Pin Set
  • 160d
    705601014 RH Brake Pad Kit
    RH Brake Pad Kit
  • 180
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 250
    705601155 Brake Pedal
    Brake Pedal
  • 260
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 265
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 275
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 300
    293300144 O-Ring
    O-Ring
  • 350
    250000513 Shoulder Screw M10
    Shoulder Screw M10
  • 351
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 360
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 370
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 375
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 400
    705600999 Disc Brake
    Disc Brake
  • 440
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 480
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 500
    705202000 Bracket Brake Pedal
    Bracket Brake Pedal
  • 501
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 502
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 510
    705600962 Front Hose Protector
    Front Hose Protector
  • 511
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 512
    250200025 Washer M5
    Washer M5
  • 513
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 524
    250000755 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 525
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 530
    705600983 Front Hose Bracket
    Front Hose Bracket
  • 535
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 536
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 540
    518321570 Open Clamp
    Open Clamp
  • 541
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 550
    293650219 Clamp
    Clamp
  • 560
    293650220 Clamp
    Clamp
  • 580
    409902200 Tubing 25 mm
    Tubing 25 mm
