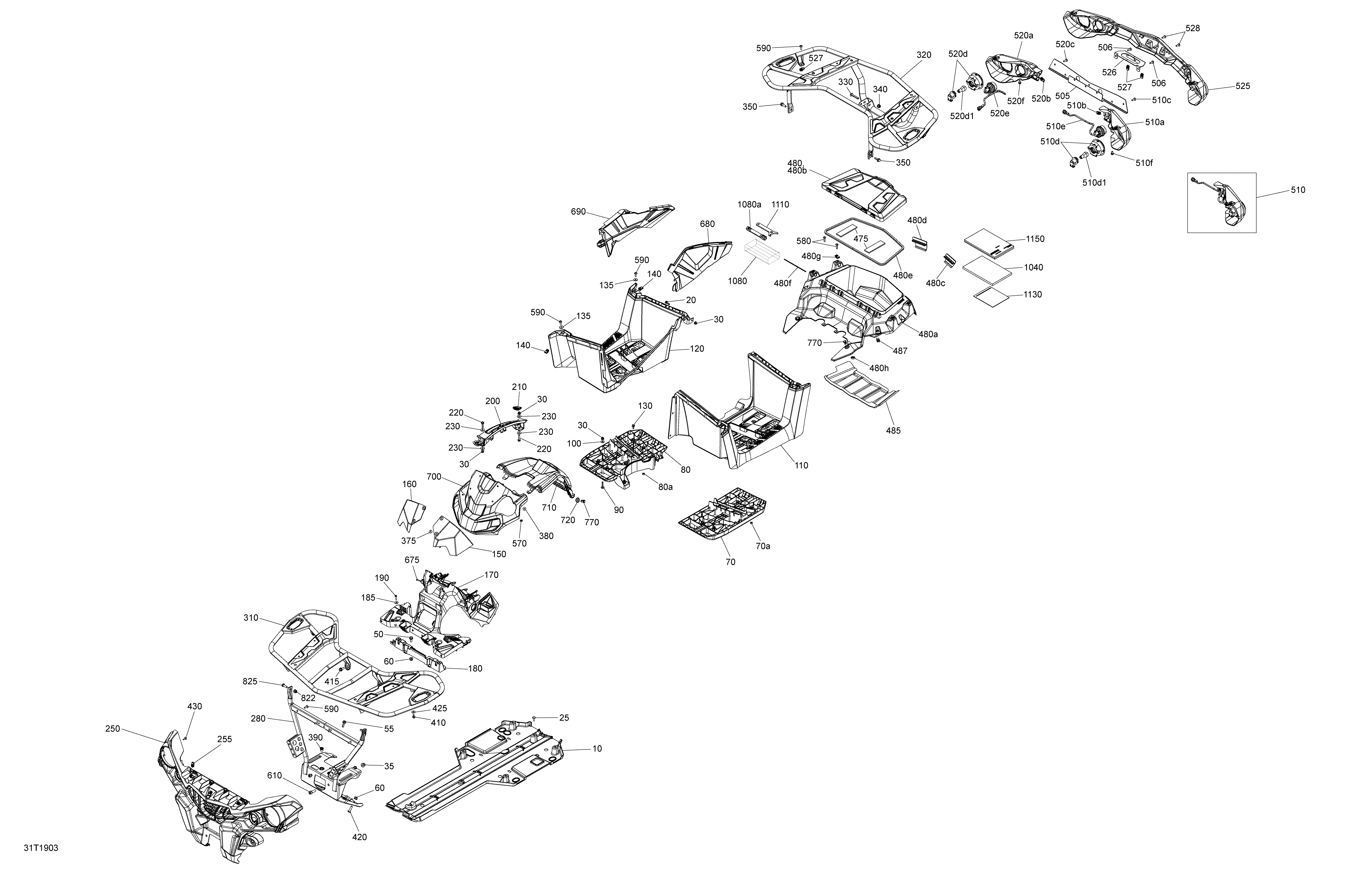

09- Body And Accessories - 570 EFI - T3 для BRP 002 - Outlander 570 EFI - DPS_PRO - T3 - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Except Package STDProtective Plate Kit. Except Package STD
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20. Except Package STDCarriage Bolt M6 X 20. Except Package STD
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10. Except Package Pro NordicHex. Flanged Elastic Nut M10. Except Package Pro Nordic
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007039 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
150705006134 LH Air Deflector. Package PROLH Air Deflector. Package PRO
-
160705006135 RH Air Deflector. Package PRORH Air Deflector. Package PRO
-
170715003984 Dash Support KitDash Support Kit
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
200715003979 IndicatorIndicator
-
210705005003 Shiftgate TrimShiftgate Trim
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705009335 Front FaciaFront Facia
-
255250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
280705009256 Front StructureFront Structure
-
310705006887 Black Front Luggage RackBlack Front Luggage Rack
-
320715002787 Black Rear Luggage RackBlack Rear Luggage Rack
-
330250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
340233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
350250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
375293150104 Pop Rivet 3/16''. Package PROPop Rivet 3/16''. Package PRO
-
380517124300 Washer. Package PROWasher. Package PRO
-
390293450307 InsertInsert
-
410210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
415207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
425234062670 Flat Washer, StainlessFlat Washer, Stainless
-
430250000725 Screw M4 X 16Screw M4 X 16
-
475293830163 Rubber PadRubber Pad
-
480715004412 Storage CoverStorage Cover
-
480a705007136 Rear BoxRear Box
-
480b715004412 Storage CoverStorage Cover
-
480c705007448 LH Box Rear LatchLH Box Rear Latch
-
480d705007921 RH Box Rear Latch. Includes 480d to 480eRH Box Rear Latch. Includes 480d to 480e
-
480e715900411 Neoprene SealNeoprene Seal
-
480f705007531 Retaining RodRetaining Rod
-
480g250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
480h414859400 CapCap
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
505708002041 Cable HousingCable Housing
-
506250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
510705011495 LH Rear Light Support Ass'yLH Rear Light Support Ass'y
-
510705011495 LH Rear Light Support Ass'y. Includes 510 to 510gLH Rear Light Support Ass'y. Includes 510 to 510g
-
510a705010329 LH SupportLH Support
-
510b250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
510c250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
510d710001645 Tail Light. Includes 510d to 510d1Tail Light. Includes 510d to 510d1
-
510d1520000758 BulbBulb
-
510e710002964 FlasherFlasher
-
510f207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
510g705010330 RH SupportRH Support
-
510h250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
510j250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
510k710001645 Tail Light. Includes 510k to 510k1Tail Light. Includes 510k to 510k1
-
510k1520000758 BulbBulb
-
510m710002964 FlasherFlasher
-
510n207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
525705011887 Rear FaciaRear Facia
-
526705012280 BracketBracket
-
527250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
528250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
570732610072 Push Nut. Package PROPush Nut. Package PRO
-
580250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610205003044 Socket Screw M10 x 30. Package PROSocket Screw M10 x 30. Package PRO
-
610236282054 Hex. Screw M8 X 20. Packages DPS & STDHex. Screw M8 X 20. Packages DPS & STD
-
610236282054 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705012554 Gauge Support. Packages DPS & STDGauge Support. Packages DPS & STD
-
700705012572 Gauge Support. Packages PRO & Pro Nordic. Includes 700 to 700aGauge Support. Packages PRO & Pro Nordic. Includes 700 to 700a
-
710715005837 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
822233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
825250000898 Screw Pan Torx M8 X 25Screw Pan Torx M8 X 25
-
1040219001969 OPERATOR'S GUIDE EN 2019OPERATOR'S GUIDE EN 2019
-
1080704700168 Tool Kit. Includes 1080 to 1080aTool Kit. Includes 1080 to 1080a
-
1080a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
1110529000035 Adjustement WrenchAdjustement Wrench
-
1130219400038 Waranty FormWaranty Form
-
1150219001376 Manual Winch Kit. Package PROManual Winch Kit. Package PRO
