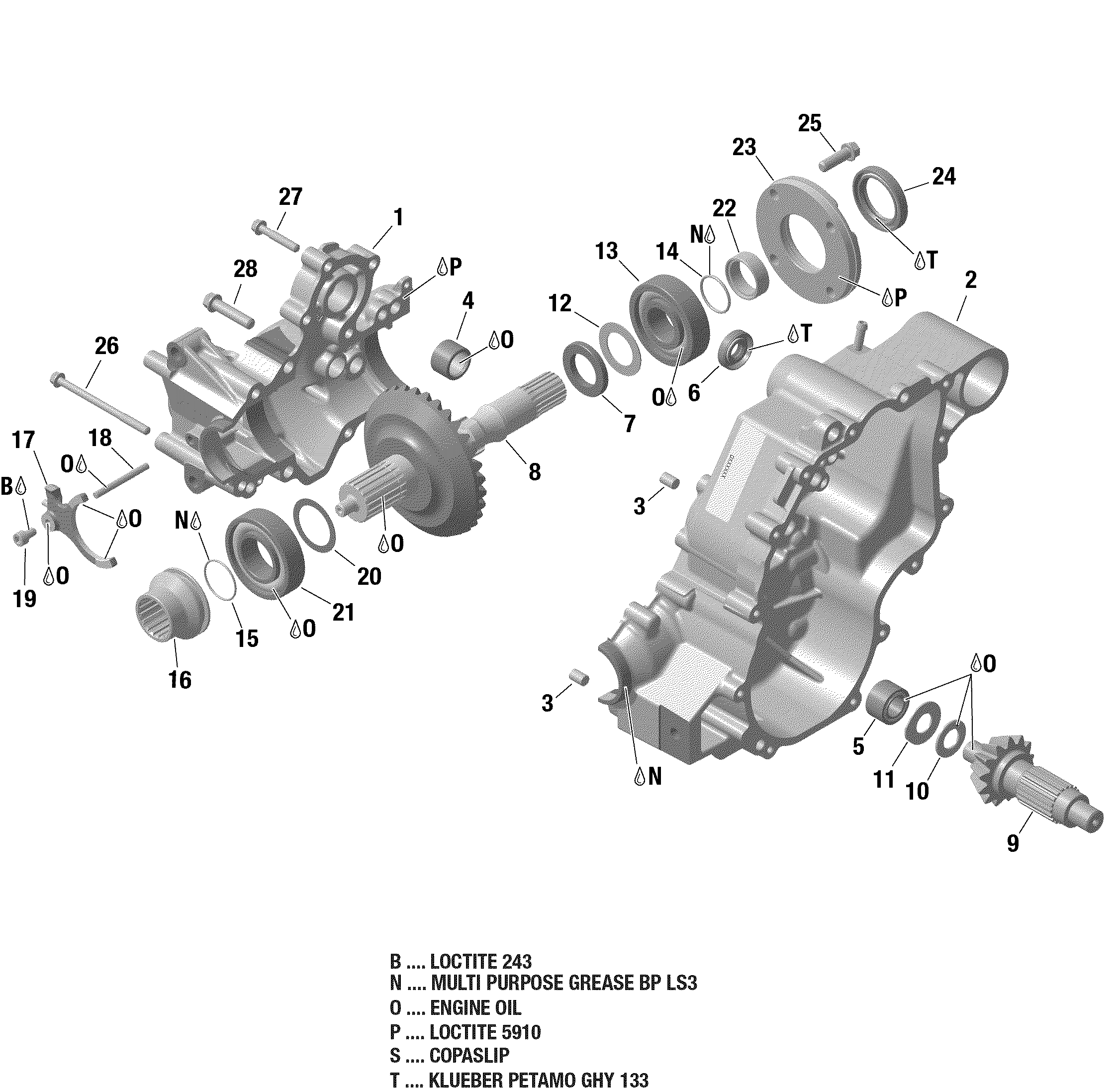

05- Gear Box 1 - 420684829 для BRP 002 - Outlander 570 EFI - DPS_PRO - T3 - 2019
-
№АртикулНазвание
-
1>6420686205 Gear Housing Ass'yGear Housing Ass'y
-
3420632010 Center Pin 8 X 12Center Pin 8 X 12
-
4420832240 Needle BushingNeedle Bushing
-
5420232085 Needle BushingNeedle Bushing
-
6420250450 Oil SealOil Seal
-
7420247772 Distance RingDistance Ring
-
8>9420635557 Drive Ass'yDrive Ass'y
-
10420632300 Axial Needle BearingAxial Needle Bearing
-
11420281306 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
12420281300 Washer Thrust SetWasher Thrust Set
-
13420932823 Ball BearingBall Bearing
-
14420631610 O-RingO-Ring
-
15420630040 O-RingO-Ring
-
16420257673 Shifting SleeveShifting Sleeve
-
17420257606 Shifting ForkShifting Fork
-
18420832650 Needle PinNeedle Pin
-
19420241081 Allen Screw M6 X 10Allen Screw M6 X 10
-
20420944584 Shim 0.5Shim 0.5
-
21420932580 Ball BearingBall Bearing
-
22420247123 Distance RingDistance Ring
-
23420611441 Bearing CoverBearing Cover
-
24420950089 Oil SealOil Seal
-
25420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
26420440374 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
27420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
28420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
29420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
