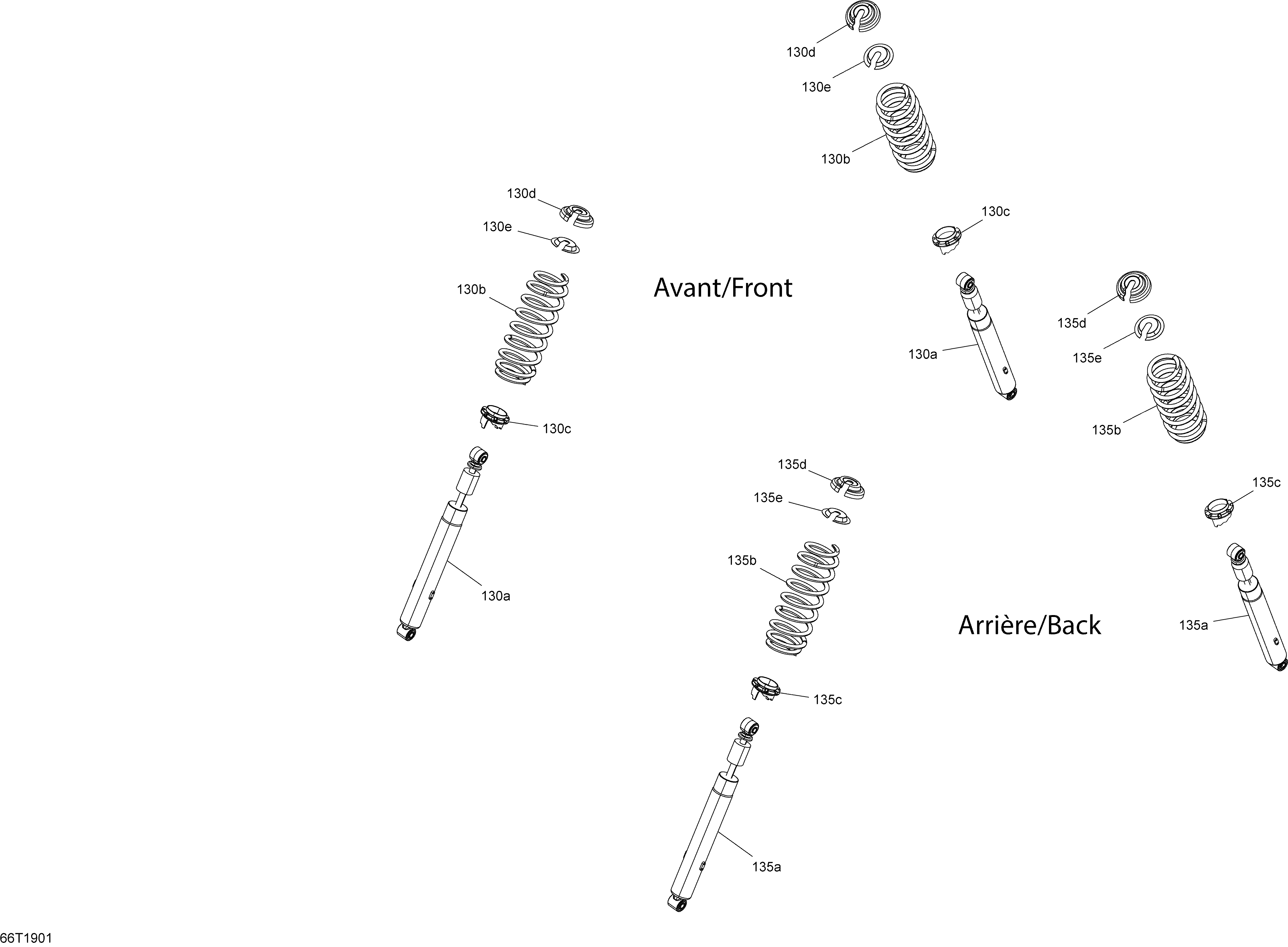

07- Shocks - DPS - STD для BRP 001 - Outlander 450 EFI - T3 - 2019
-
№АртикулНазвание
-
130a706201163 Front ShockFront Shock
-
130b706202629 Black SpringBlack Spring
-
130c706002356 Adjuster RingAdjuster Ring
-
130d706200881 Spring StopperSpring Stopper
-
130e706200785 CapCap
-
135a706001524 Rear ShockRear Shock
-
135b706002475 Black SpringBlack Spring
-
135c706002356 Adjuster RingAdjuster Ring
-
135d706200881 Spring StopperSpring Stopper
-
135e706200785 CapCap
