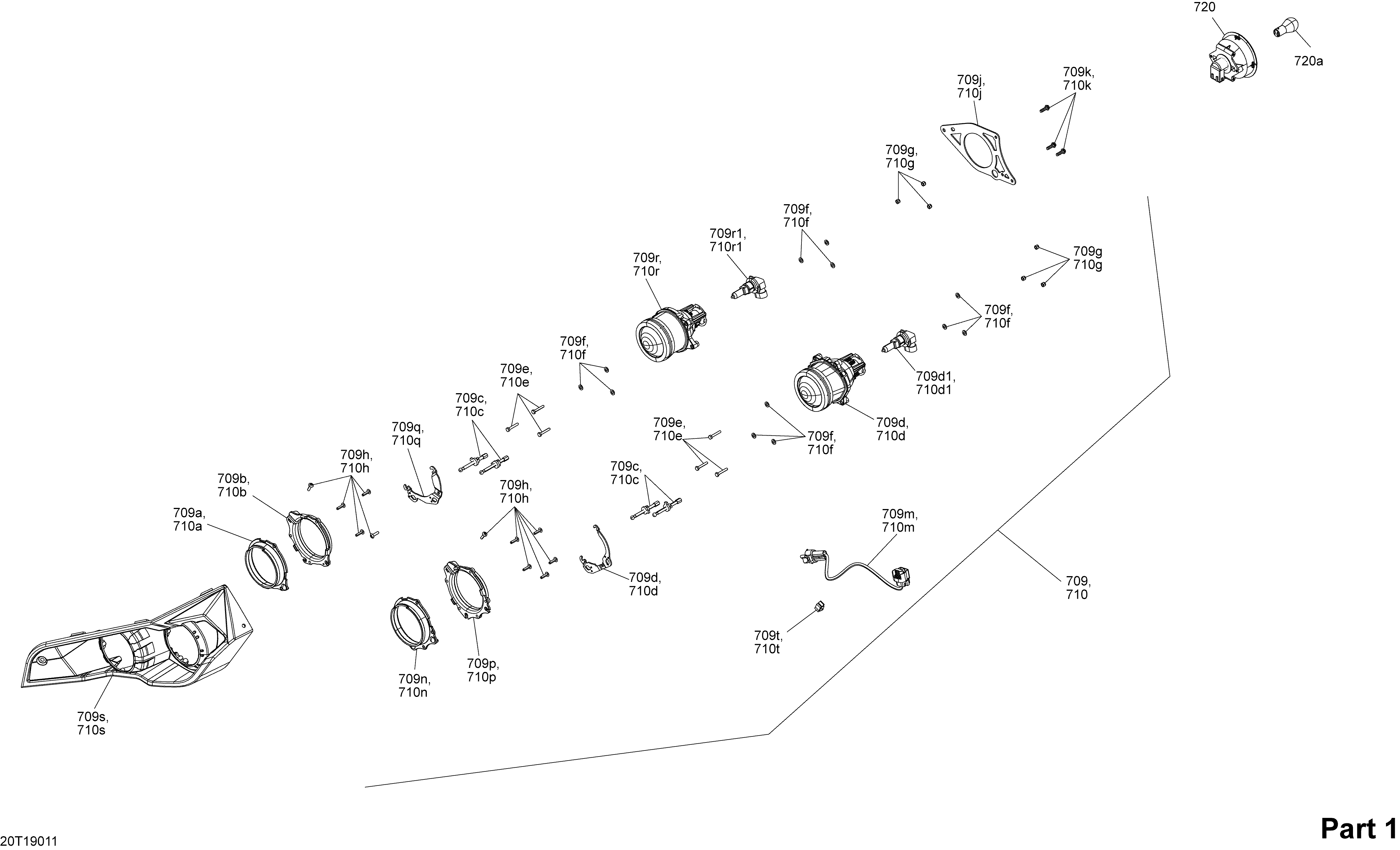

10- Electrical - 1000R EFI - Part 1 для BRP 004 - Renegade 1000R EFI - International - Non European Communities - 2019

  • №
    Артикул
    Название
  • 709a
    710001083 LH Low Front Housing
    LH Low Front Housing
  • 709b
    710001084 LH Low Rear Housing
    LH Low Rear Housing
  • 709c
    710001147 Setting Screw
    Setting Screw
  • 709d
    710002524 Low Beam Ass'y. Includes 709d to 709d1
    Low Beam Ass'y. Includes 709d to 709d1
  • 709d1
    415129249 Halogen Bulb
    Halogen Bulb
  • 709e
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 709f
    234051410 Flat Washer M5
    Flat Washer M5
  • 709g
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 709h
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 709j
    705004309 Painted Headlamp Support
    Painted Headlamp Support
  • 709k
    241151640 Hex. Flanged Screw K50 X 2.24 X 16
    Hex. Flanged Screw K50 X 2.24 X 16
  • 709m
    710005944 Light Harness
    Light Harness
  • 709n
    710001087 LH High Front Housing
    LH High Front Housing
  • 709p
    710001088 LH High Rear Housing
    LH High Rear Housing
  • 709q
    710005853 LH High Light Support
    LH High Light Support
  • 709r
    710002525 High Beam Ass'y. Includes 709r to 709r1
    High Beam Ass'y. Includes 709r to 709r1
  • 709r1
    415129249 Halogen Bulb
    Halogen Bulb
  • 709s
    705004508 LH Front Facia
    LH Front Facia
  • 709t
    414227300 Clip
    Clip
  • 710a
    710001081 RH Low Front Housing
    RH Low Front Housing
  • 710b
    710001082 RH Low Rear Housing
    RH Low Rear Housing
  • 710c
    710001147 Setting Screw
    Setting Screw
  • 710d
    710002524 Low Beam Ass'y
    Low Beam Ass'y
  • 710d1
    415129249 Halogen Bulb
    Halogen Bulb
  • 710e
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 710f
    234051410 Flat Washer M5
    Flat Washer M5
  • 710g
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 710h
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 710j
    705004309 Painted Headlamp Support
    Painted Headlamp Support
  • 710k
    241151640 Hex. Flanged Screw K50 X 2.24 X 16
    Hex. Flanged Screw K50 X 2.24 X 16
  • 710m
    710005944 Light Harness
    Light Harness
  • 710n
    710001085 RH High Front Housing
    RH High Front Housing
  • 710p
    710001086 RH High Rear Housing
    RH High Rear Housing
  • 710q
    710005856 RH High Light Support
    RH High Light Support
  • 710r
    710002525 High Beam Ass'y
    High Beam Ass'y
  • 710r1
    415129249 Halogen Bulb
    Halogen Bulb
  • 710s
    705004509 RH Front Facia
    RH Front Facia
  • 710t
    414227300 Clip
    Clip
  • 720
    710001645 Tail Light. Includes 720 to 720a
    Tail Light. Includes 720 to 720a
  • 720a
    520000758 Bulb
    Bulb
