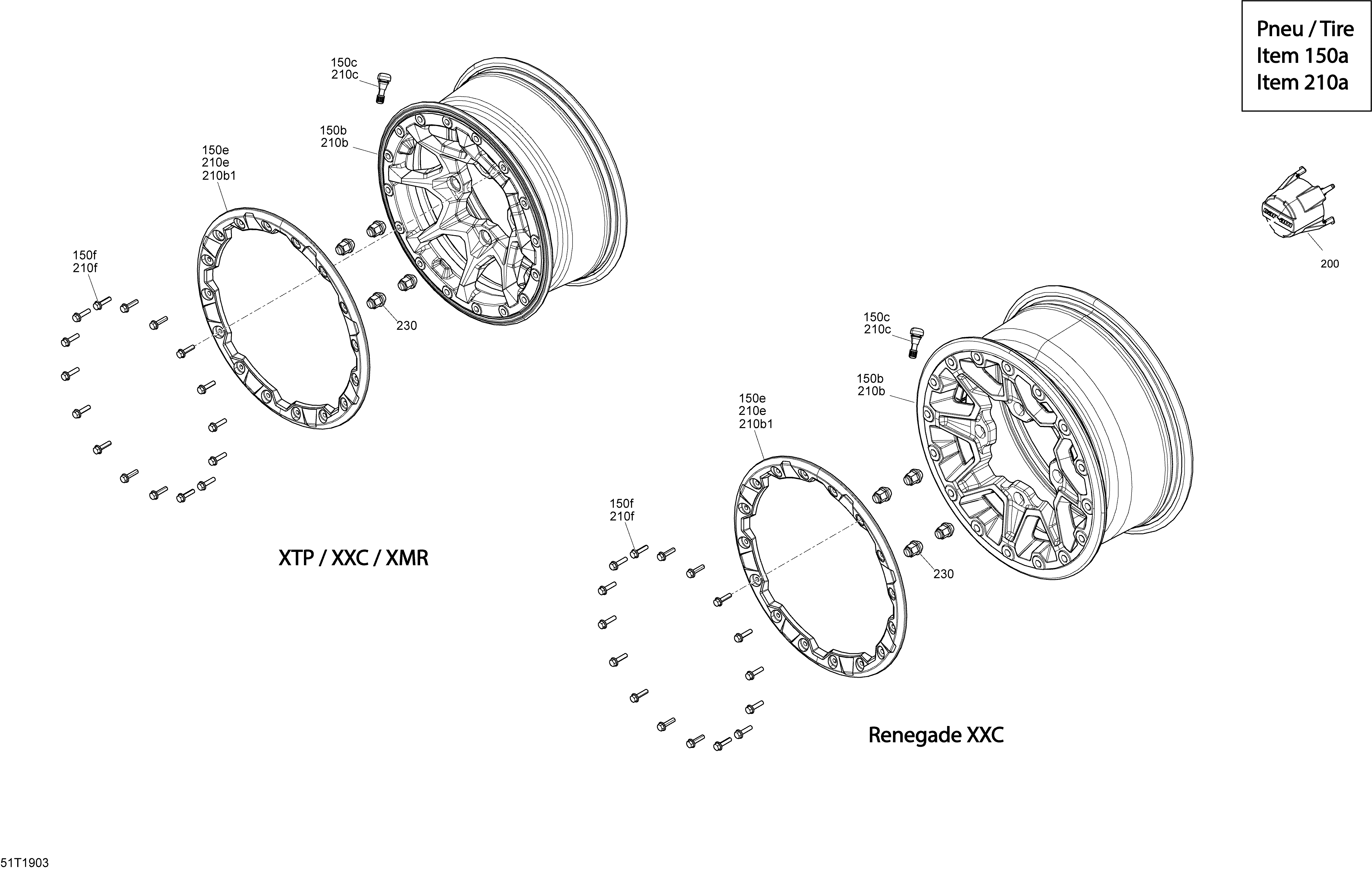

07- Wheels - XXC для BRP 003 - Renegade 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
150a705500926 TireTire
-
150b705502244 Black, RimBlack, Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
150e705401867 Black Reinforcement Disc. Timeless Black MetallicBlack Reinforcement Disc. Timeless Black Metallic
-
150e705402326 Beadlock. Deep BlackBeadlock. Deep Black
-
150f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
200705400928 Wheel CapWheel Cap
-
210a705400600 TireTire
-
210b705401678 Black, RimBlack, Rim
-
210b1293450317 InsertInsert
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210e705401867 Black Reinforcement Disc. Timeless Black MetallicBlack Reinforcement Disc. Timeless Black Metallic
-
210e705402326 Beadlock. Deep BlackBeadlock. Deep Black
-
210f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
