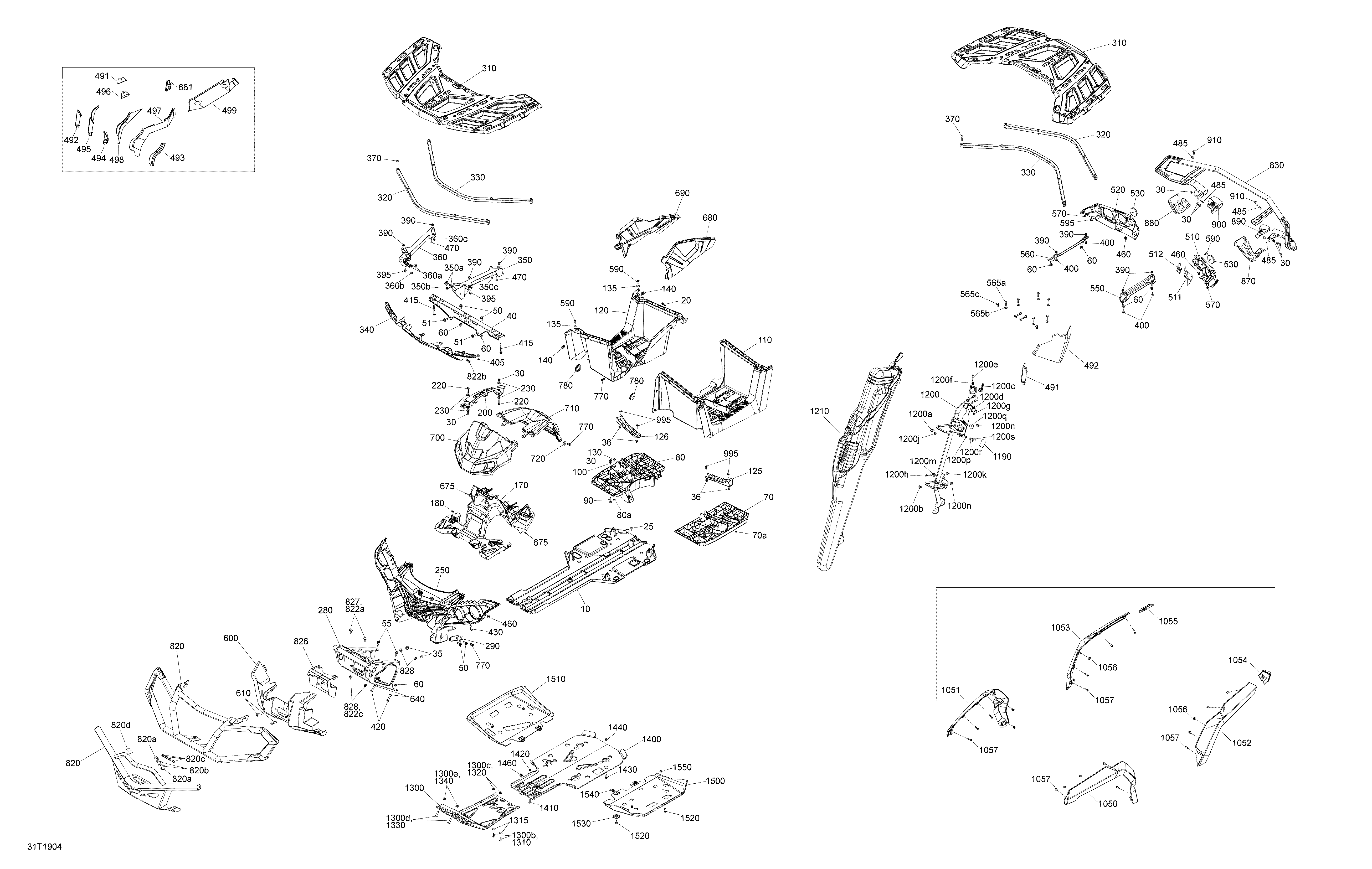

09- Body And Accessories - 650 для BRP 005 - Outlander MAX 650 EFI - International - European Communities - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
36233261434 Flanged Elastic Nut M6. Package North EditionFlanged Elastic Nut M6. Package North Edition
-
40705006812 Cargo Rack Center SupportCargo Rack Center Support
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705003525 LH Footrest MaxLH Footrest Max
-
120705003521 RH Footrest MaxRH Footrest Max
-
125705004352 LH Footrest. Package North EditionLH Footrest. Package North Edition
-
126705005395 RH Footrest. Package North EditionRH Footrest. Package North Edition
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
170715003984 Dash Support KitDash Support Kit
-
180293830005 Rubber BumperRubber Bumper
-
200715003977 Shifter Gate Kit. Except Package North EditionShifter Gate Kit. Except Package North Edition
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705012822 FasciaFascia
-
280705009253 Black Front Bumper SupportBlack Front Bumper Support
-
290705004565 Lower Fender SupportLower Fender Support
-
310715002784 Rack KitRack Kit
-
320705005469 TubeTube
-
330705005470 TubeTube
-
340705004523 Lugage Rack MouldingLugage Rack Moulding
-
350705011553 LH Support Luggage Rack Ass'y. Includes 350 to 350cLH Support Luggage Rack Ass'y. Includes 350 to 350c
-
350a269501943 Elastic Nut Housing M8. Includes 350a to 350bElastic Nut Housing M8. Includes 350a to 350b
-
350b232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
350c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
360705011555 RH Support Luggage Rack Ass'y. Includes 360 to 360cRH Support Luggage Rack Ass'y. Includes 360 to 360c
-
360a269501943 Elastic Nut Housing M8. Includes 360a to 360bElastic Nut Housing M8. Includes 360a to 360b
-
360b232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
390250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
395207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
400207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
405241140060 Screw K40 X 10Screw K40 X 10
-
415207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
460517302785 Edge ClipEdge Clip
-
470250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
485207762044 Carriage Bolt M6 X 20. Package XTCarriage Bolt M6 X 20. Package XT
-
491707002456 Heat ShieldHeat Shield
-
492707002457 Heat ShieldHeat Shield
-
493707002458 Heat ShieldHeat Shield
-
494707002459 Heat ShieldHeat Shield
-
495707002460 Heat ShieldHeat Shield
-
496707002461 Heat ShieldHeat Shield
-
497707002462 Heat ShieldHeat Shield
-
498707002583 Heat ShieldHeat Shield
-
499707002464 Heat ShieldHeat Shield
-
510705006643 LH Rear FaciaLH Rear Facia
-
511707002103 Heat ShieldHeat Shield
-
512707002107 Heat ShieldHeat Shield
-
513707002293 Heat ShieldHeat Shield
-
520705006650 RH Rear FaciaRH Rear Facia
-
530705011221 Red ReflectorRed Reflector
-
550705007277 LH SupportLH Support
-
560705007278 RH SupportRH Support
-
565a250000841 Screw Hex Flange M6 X 25Screw Hex Flange M6 X 25
-
565b234062670 Flat Washer, StainlessFlat Washer, Stainless
-
565c293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
570732610072 Push NutPush Nut
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
595207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600705006299 Front Guard PlateFront Guard Plate
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
640705004497 RingRing
-
661707002467 Heat ShieldHeat Shield
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705007066 Gage SupportGage Support
-
710715002783 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
-
820715004837 Black, Bumber Kit. Package XT - CamoBlack, Bumber Kit. Package XT - Camo
-
820715004837 Black, Bumber Kit. Package XT - Intense RedBlack, Bumber Kit. Package XT - Intense Red
-
820705012994 Can-Am Red, Front Bumper. Package XT - Timeless BlackCan-Am Red, Front Bumper. Package XT - Timeless Black
-
822a207782044 Carriage Bolt, M8 X 20. Package XTCarriage Bolt, M8 X 20. Package XT
-
822b233281434 Hex. Flanged Elastic Nut M8. Package XTHex. Flanged Elastic Nut M8. Package XT
-
822c250000886 Torx Screw M8 X 30. Package XTTorx Screw M8 X 30. Package XT
-
830715004920 Rear Bumper. Package XT - Intense RedRear Bumper. Package XT - Intense Red
-
830715004920 Rear Bumper. Package XT - CamoRear Bumper. Package XT - Camo
-
830705013000 Can-Am Red, Rear Bumper. Package XT - Timeless BlackCan-Am Red, Rear Bumper. Package XT - Timeless Black
-
835a250000842 Torx Screw M6 X 30 Stainless. Package XTTorx Screw M6 X 30 Stainless. Package XT
-
835b207762044 Carriage Bolt M6 X 20. Package XTCarriage Bolt M6 X 20. Package XT
-
835c233261434 Flanged Elastic Nut M6. Package XTFlanged Elastic Nut M6. Package XT
-
835d233281434 Hex. Flanged Elastic Nut M8. Package XTHex. Flanged Elastic Nut M8. Package XT
-
835e705005094 LH Bracket. Package XTLH Bracket. Package XT
-
835f705005095 RH Bracket. Package XTRH Bracket. Package XT
-
870705008164 LH Rear Bracket. Package XTLH Rear Bracket. Package XT
-
880705008165 RH Rear Bracket. Package XTRH Rear Bracket. Package XT
-
890705005094 LH Bracket. Package XTLH Bracket. Package XT
-
900705005095 RH Bracket. Package XTRH Bracket. Package XT
-
910250000842 Torx Screw M6 X 30 Stainless. Package XTTorx Screw M6 X 30 Stainless. Package XT
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
-
960705006870 Heat ShieldHeat Shield
-
970705006871 Heat ShieldHeat Shield
-
995207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1050705003914 LH Front MudguardLH Front Mudguard
-
1051705003915 RH Front MudguardRH Front Mudguard
-
1052705003918 LH Rear MudguardLH Rear Mudguard
-
1053705003920 RH Rear MudguardRH Rear Mudguard
-
1054705004888 LH Mudgard CapLH Mudgard Cap
-
1055705004889 RH Mudgard CapRH Mudgard Cap
-
1057250001072 Self Tapping Screw 8 X 5/8Self Tapping Screw 8 X 5/8
-
1056732610072 Push NutPush Nut
-
1000j250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
1000k207342544 Hex. Cap Screw M4 X 25Hex. Cap Screw M4 X 25
-
1000m517124300 WasherWasher
-
1010705007948 Seat HolderSeat Holder
