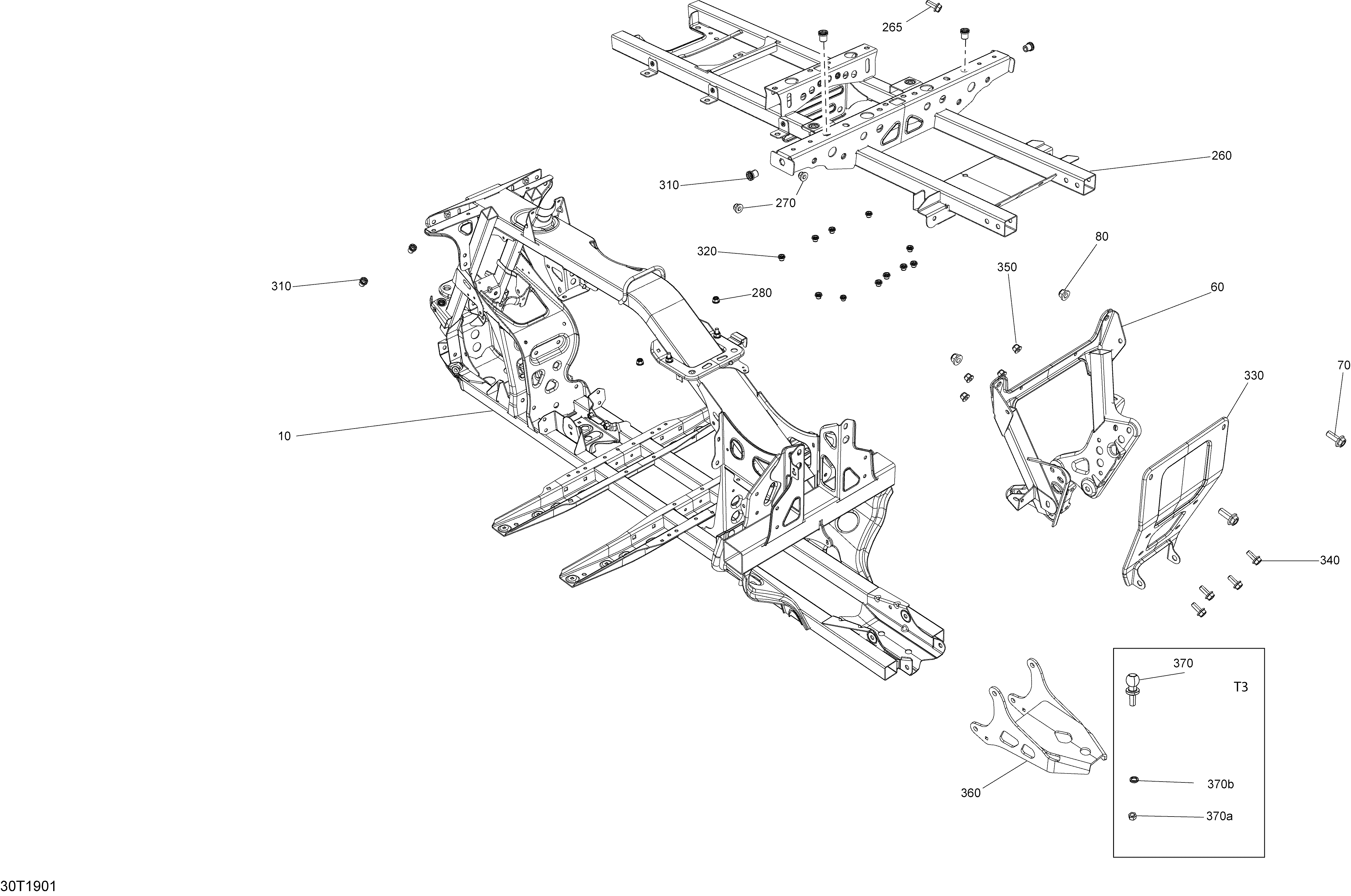

09- Frame - Non XMR для BRP 004 - Outlander 1000R EFI - International - Non European Communities - 2019
-
№АртикулНазвание
-
10705207326 Black, FrameBlack, Frame
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
260705204075 Black Frame ExtensionBlack Frame Extension
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
310293450307 InsertInsert
-
320250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
330705203301 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360705207080 Trailer HitchTrailer Hitch
