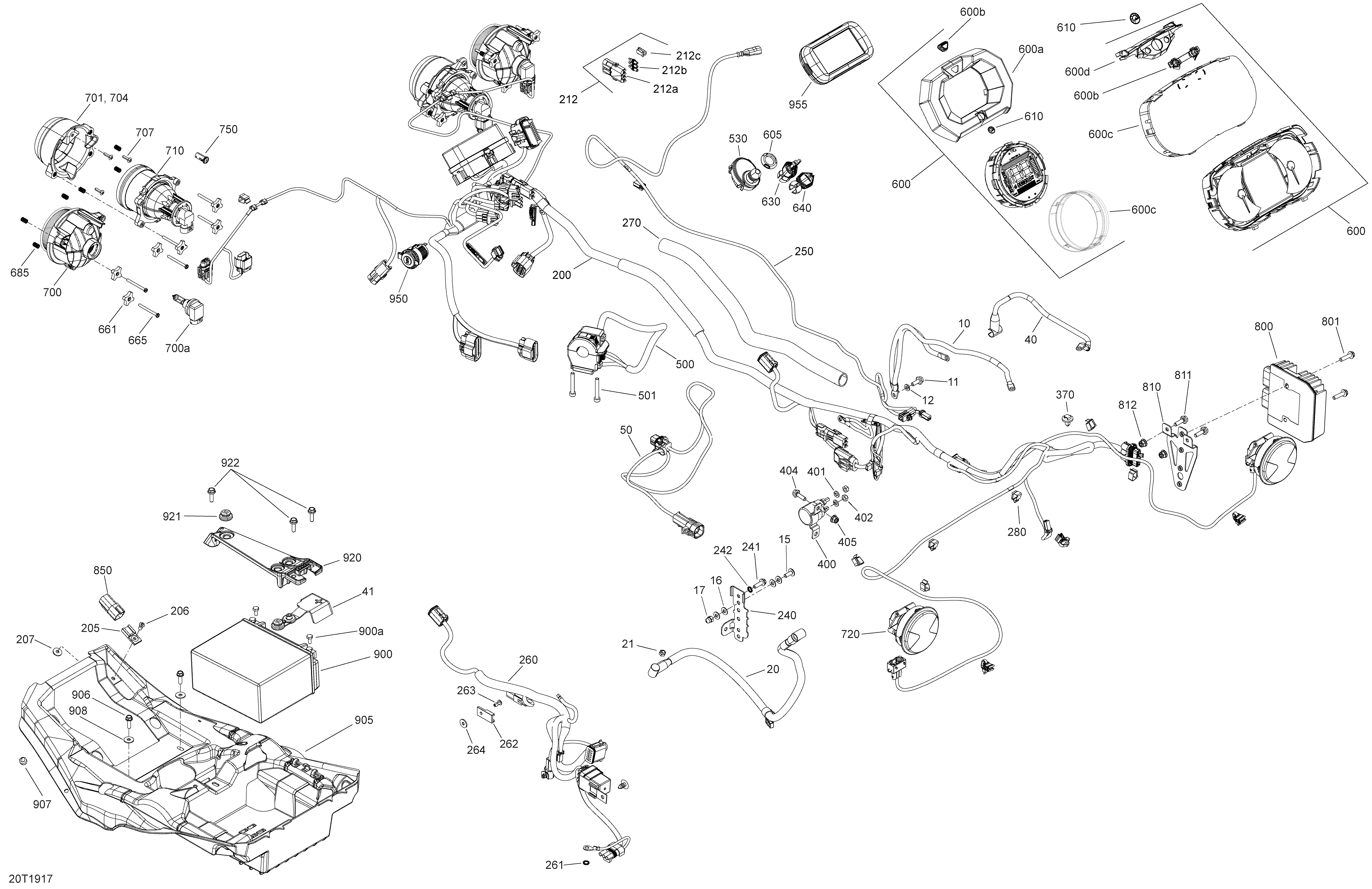

10- Electrical - 1000R EFI - Packages XXC, XTP, XMR & LTD для BRP 003 - Outlander 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive Cable. Package XXCPositive Cable. Package XXC
-
41710002569 CapCap
-
200710006240 HarnessHarness
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
250710004324 Brake Harness. Package XXCBrake Harness. Package XXC
-
260710005160 Compressor Harness. Package LTDCompressor Harness. Package LTD
-
261234461608 External Serrated Lock Washer 6 mm. Package LTDExternal Serrated Lock Washer 6 mm. Package LTD
-
262270000141 Clip. Package LTDClip. Package LTD
-
263390402300 Pop Rivet 3/16''. Package LTDPop Rivet 3/16''. Package LTD
-
264391301600 Washer. Package LTDWasher. Package LTD
-
270710003260 Protective Tubing. Package XMRProtective Tubing. Package XMR
-
280414227300 ClipClip
-
370293730040 Mount DartMount Dart
-
385710002896 Tie-Rap Clip. Package XMRTie-Rap Clip. Package XMR
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500710006134 Handle SwitchHandle Switch
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530515178225 DESS Switch, RFIDDESS Switch, RFID
-
600710006331 Speedometer. Includes 600 to 600dSpeedometer. Includes 600 to 600d
-
600b415129349 LensLens
-
600c415129355 Speedometer ButtonSpeedometer Button
-
600d705004366 Cap SupportCap Support
-
605278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
610516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
630710005232 Green Key RFIDGreen Key RFID
-
640710004964 Grey Key RFIDGrey Key RFID
-
661572106600 HandleHandle
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
685517168600 SpringSpring
-
700710006177 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a715900141 Bulb 12V 55WBulb 12V 55W
-
701710002291 RH High Front HousingRH High Front Housing
-
704710002292 LH High Front HousingLH High Front Housing
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
710710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
720710001645 Tail Light. Includes 720 to 720aTail Light. Includes 720 to 720a
-
720a520000758 BulbBulb
-
800710005842 Voltage RegulatorVoltage Regulator
-
801210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
810710001752 Rectifier SupportRectifier Support
-
811207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
812233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
850710004904 Connector PlugConnector Plug
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
955710005035 GPS. Package LTDGPS. Package LTD
