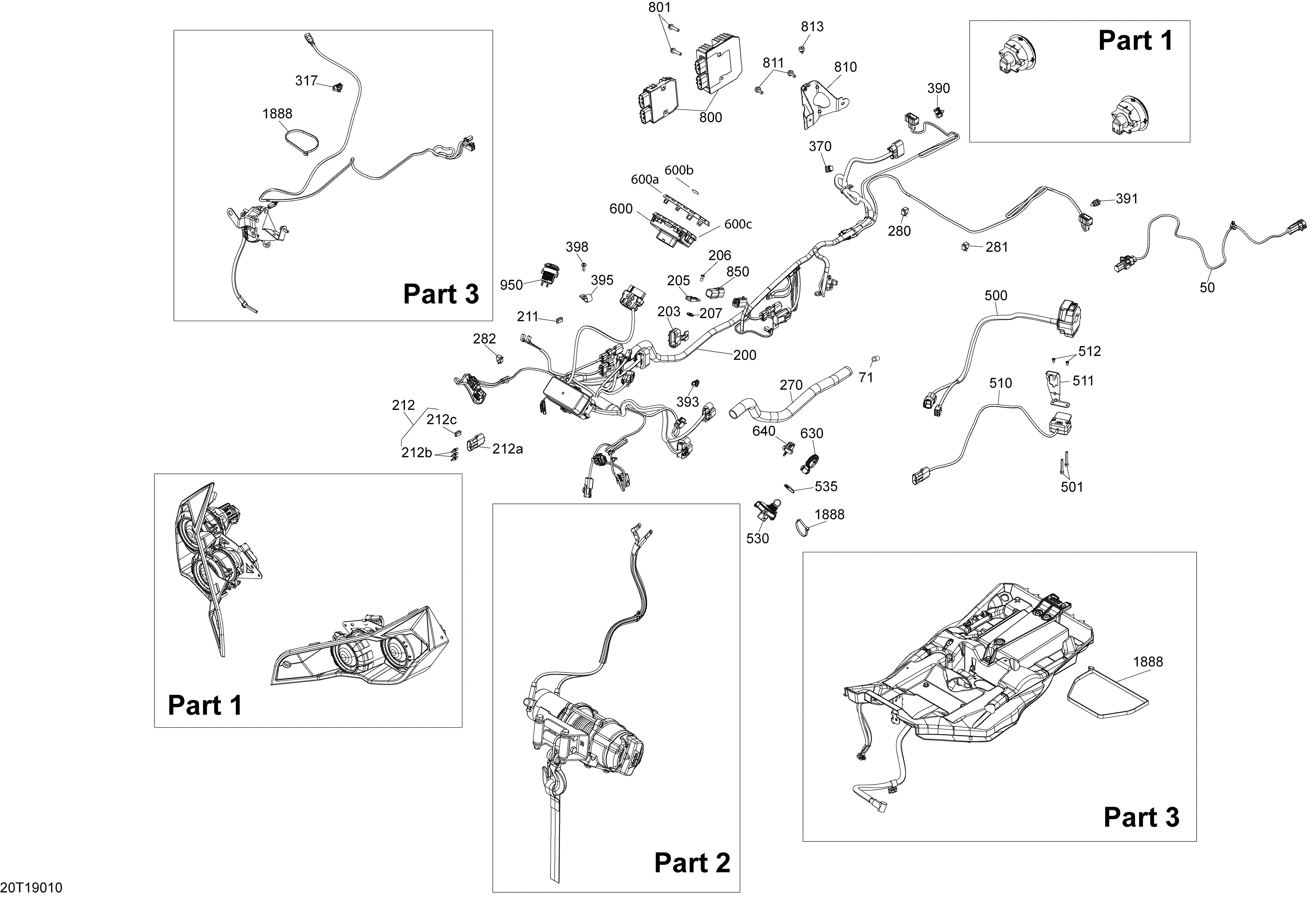

10- Electrical - 1000R EFI - Main для BRP 003 - Renegade 1000R EFI - North America - 2019

  • №
    Артикул
    Название
  • 200
    710006239 Harness
    Harness
  • 203
    710005760 DPS Connector Cap
    DPS Connector Cap
  • 205
    270000141 Clip
    Clip
  • 206
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 207
    391301600 Washer
    Washer
  • 211
    710000992 Clip. Package XMR
    Clip. Package XMR
  • 212
    710000917 Connector Ass'y. Except Package XMR. Includes 212 to 212c
    Connector Ass'y. Except Package XMR. Includes 212 to 212c
  • 212a
    278000281 Female Terminal Housing, 3 Circuits. Except Package XMR
    Female Terminal Housing, 3 Circuits. Except Package XMR
  • 212b
    278000216 Wire Seal. Except Package XMR
    Wire Seal. Except Package XMR
  • 212c
    710000992 Clip. Except Package XMR
    Clip. Except Package XMR
  • 270
    710003260 Protective Tubing. Package XMR
    Protective Tubing. Package XMR
  • 280
    414227300 Clip
    Clip
  • 281
    414227300 Clip
    Clip
  • 282
    414227300 Clip
    Clip
  • 370
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 390
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 391
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 393
    710002896 Tie-Rap Clip. Package XMR
    Tie-Rap Clip. Package XMR
  • 395
    518321570 Open Clamp. Package XMR
    Open Clamp. Package XMR
  • 398
    250000720 Torx Screw K50 X 16. Package XMR
    Torx Screw K50 X 16. Package XMR
  • 500
    710006134 Handle Switch. Except Package STD
    Handle Switch. Except Package STD
  • 500
    710006229 Multi Fonction Control. Package STD
    Multi Fonction Control. Package STD
  • 501
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 510
    710005241 Winch Switch. Package XMR
    Winch Switch. Package XMR
  • 511
    710004670 Black Support. Package XMR
    Black Support. Package XMR
  • 512
    250000153 Hex. Cap Screw 6-32 X 1/4''. Package XMR
    Hex. Cap Screw 6-32 X 1/4''. Package XMR
  • 530
    515178225 DESS Switch, RFID
    DESS Switch, RFID
  • 535
    278002963 Safety Nut (DESS Switch)
    Safety Nut (DESS Switch)
  • 600
    710006216 Speedometer. Includes 600 to 600c
    Speedometer. Includes 600 to 600c
  • 600a
    710001183 Trim Ring Ass'y. Includes 600a to 600b
    Trim Ring Ass'y. Includes 600a to 600b
  • 600b
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 600c
    715900265 Button
    Button
  • 630
    710005232 Green Key RFID
    Green Key RFID
  • 640
    710004964 Grey Key RFID
    Grey Key RFID
  • 800
    710001103 Voltage Regulator. Package STD
    Voltage Regulator. Package STD
  • 800
    710005842 Voltage Regulator. Except Package STD
    Voltage Regulator. Except Package STD
  • 801
    210262550 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 810
    710002587 Rectifier Support
    Rectifier Support
  • 811
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 813
    293830005 Rubber Bumper
    Rubber Bumper
  • 850
    710004904 Connector Plug
    Connector Plug
  • 950
    710001248 Outlet DC
    Outlet DC
