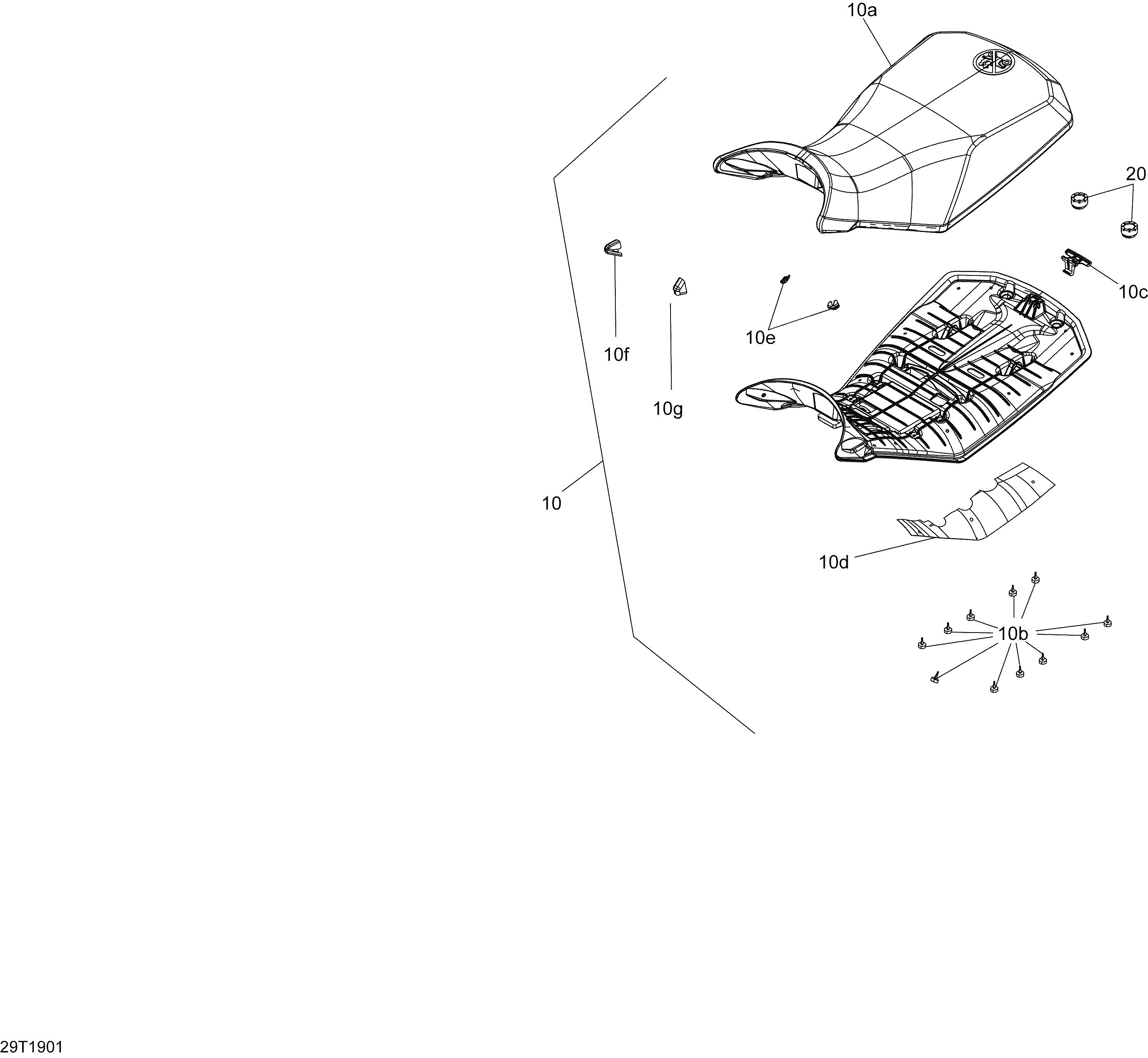

09- Seat для BRP 002 - Renegade 850 EFI - North America - 2019
-
№АртикулНазвание
-
10708002486 Assembly Seat. Package STD. Includes 10 to 10dAssembly Seat. Package STD. Includes 10 to 10d
-
10a708000887 Seat Cover. Package STDSeat Cover. Package STD
-
10b708000759 Rubber Stopper. Package STDRubber Stopper. Package STD
-
10c708000914 Latch. Package STDLatch. Package STD
-
10d705005762 Heat Shield. Package STDHeat Shield. Package STD
-
10708002490 Assembly Seat. Package XXC Triple Black. Includes 10 to 10dAssembly Seat. Package XXC Triple Black. Includes 10 to 10d
-
10a708002318 Seat Cover. Package XXC Triple BlackSeat Cover. Package XXC Triple Black
-
10b708000759 Rubber Stopper. Package XXC Triple BlackRubber Stopper. Package XXC Triple Black
-
10c708000914 Latch. Package XXC Triple BlackLatch. Package XXC Triple Black
-
10d705005762 Heat Shield. Package XXC Triple BlackHeat Shield. Package XXC Triple Black
-
10708002547 Assembly Seat. Package XXC Black/Grey/Yellow. Includes 10 to 10dAssembly Seat. Package XXC Black/Grey/Yellow. Includes 10 to 10d
-
10a708002548 Seat Cover. Package XXC Black/Grey/YellowSeat Cover. Package XXC Black/Grey/Yellow
-
10b708000759 Rubber Stopper. Package XXC Black/Grey/YellowRubber Stopper. Package XXC Black/Grey/Yellow
-
10c708000914 Latch. Package XXC Black/Grey/YellowLatch. Package XXC Black/Grey/Yellow
-
10d705005762 Heat Shield. Package XXC Black/Grey/YellowHeat Shield. Package XXC Black/Grey/Yellow
-
20708000760 Bumper RubberBumper Rubber
